RBCTMD1M2VCS

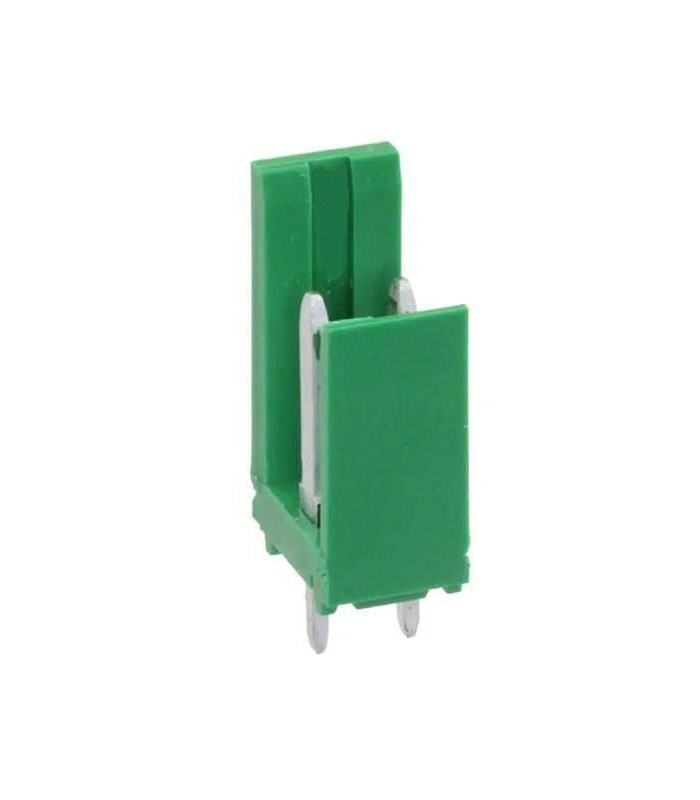

Modu I Connectors male 2 way PCB

Errebi code: 12658
Producer code: 397102WV558
Producer: Excon
Read moreShow less
€0.37 (tax excl.)
€0.45 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.41 €0.45
25 €0.36 €2.26
50 €0.34 €5.64
100 €0.29 €15.80
250 €0.25 €50.78
500 €0.23 €112.85
1000 €0.20 €248.27
Available in stock 396 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMD1M2VCS
Brand:
Excon
Add to wishlist
Description

The 397102WV558 connector is a printed circuit board (PCB) connector designed to ensure contact stability, mechanical safety and electrical continuity in industrial and electronic applications.


Thanks to its high build quality and selected materials, the connector provides reliable and consistent performance even in the presence of vibrations, temperature variations and mechanical stress, making it ideal for integration on electronic boards and control modules.
It is particularly suitable for systems requiring stable PCB connections, easy assembly and long operating life.


Operation


The connector is equipped with metal pins already integrated into the connector body, designed to be soldered directly onto the printed circuit board through a soldering process.


Advantages


  • 1) High electrical reliability: stable connections for signals and power supply on PCB.

  • 2) Direct PCB integration: pins already present, no terminals to insert.

  • 3) Mechanical robustness: designed to withstand vibrations and operational stress.

  • 4) Easy assembly: compatible with standard PCB soldering processes.

  • 5) Order and compactness: ideal for electronic boards and modular systems.

    • Technical characteristics


  • Gender: PCB female

  • Number of contacts: 2

  • Number of rows: 1

  • Pitch: 3.96 mm

  • Contact plating: tin

  • Contact material: tin

  • Current rating: 5 A

  • Voltage rating: 250 V

  • Flammability rating: UL94V-0

  • Orientation: straight (180°)

  • Cable spacing: 3.96 mm

  • Material: polycarbonate (PC)

  • Maximum operating temperature: 105 °C

  • Minimum operating temperature: -65 °C

    • Read moreShow less
    Product Details
    RBCTMD1M2VCS

    Data sheet

    Product type
    Connector body
    Serie
    Modu I
    Material
    PC (Polycarbonate)
    Color
    Green
    Operating temperature
    -65°C a +105°C
    Flammability
    94V-1
    Contact material
    Phosphor Bronze
    Mounting
    Printed circuit
    Kind
    Male
    Number of poles
    2
    Number of rows
    1
    Pitch
    3.96 mm
    Contact plating
    Gold
    Minimum order quantity
    5
    Unit Type
    pieces
    Attachments
    012658_001_DATASHEET.pdf
    Download (87.74KB)
