Errebi code: 29807Producer code: Cross Reference B6B-PH-K-SProducer: Cross Reference Japan Solderless Terminals

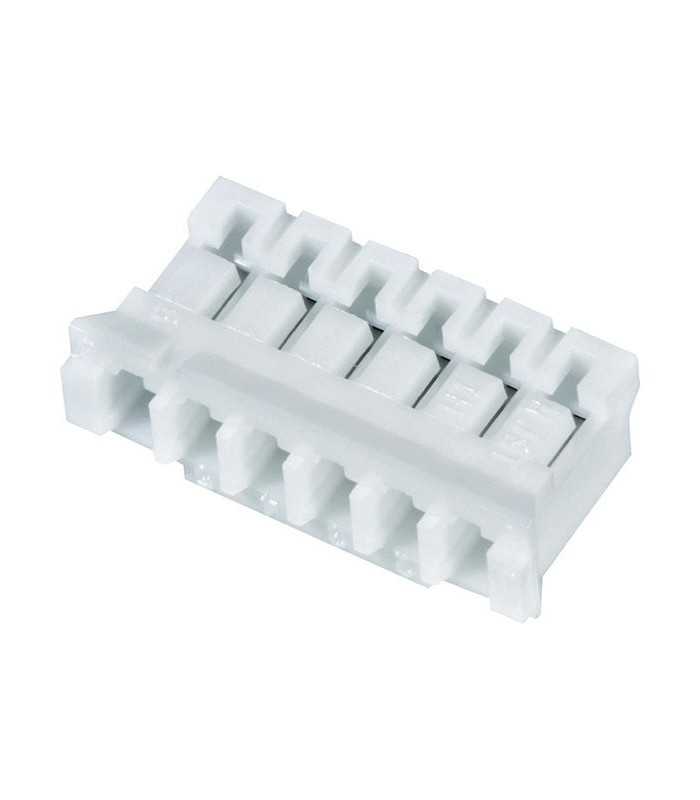

Connector PHR Step 2.00 mm Female 6 Way
Errebi code: 14858
Producer code: PHR-6
Producer: Japan Solderless Terminals
Read moreShow lessProducer code: PHR-6
Producer: Japan Solderless Terminals
€0.22
(tax excl.)
€0.27
Condition
New product
Reference:
RBCTPHRPF6V
Brand:
Product Range: JST - PH Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 6
No. of Rows: 1
Pitch Spacing: 2mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Dec-2013)
Colour: White
Contact Resistance Max: 10mohm
Contact Termination: Crimp
Current rating: 2A
Flammability rating: UL94V-0
Insulation Resistance: 1000Mohm
Material: Nylon 6.6
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Working Voltage: 100V
Read moreShow less
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 6
No. of Rows: 1
Pitch Spacing: 2mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Dec-2013)
Colour: White
Contact Resistance Max: 10mohm
Contact Termination: Crimp
Current rating: 2A
Flammability rating: UL94V-0
Insulation Resistance: 1000Mohm
Material: Nylon 6.6
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Working Voltage: 100V
RBCTPHRPF6V
Data sheet
- Product type
- Connector body
- Serie
- PH
- Amperage
- 2A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -25°C a +85°C
- Dimensions
- 6,40x13,80x4,50 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 100V
- Mounting
- On cable
- Kind
- Female
- Number of poles
- 6
- Number of rows
- 1
- Pitch
- 2.00 mm
- Orientation
- 180°
- Minimum order quantity
- 50
- Unit Type
- pieces
