RBCTPHRPF3V

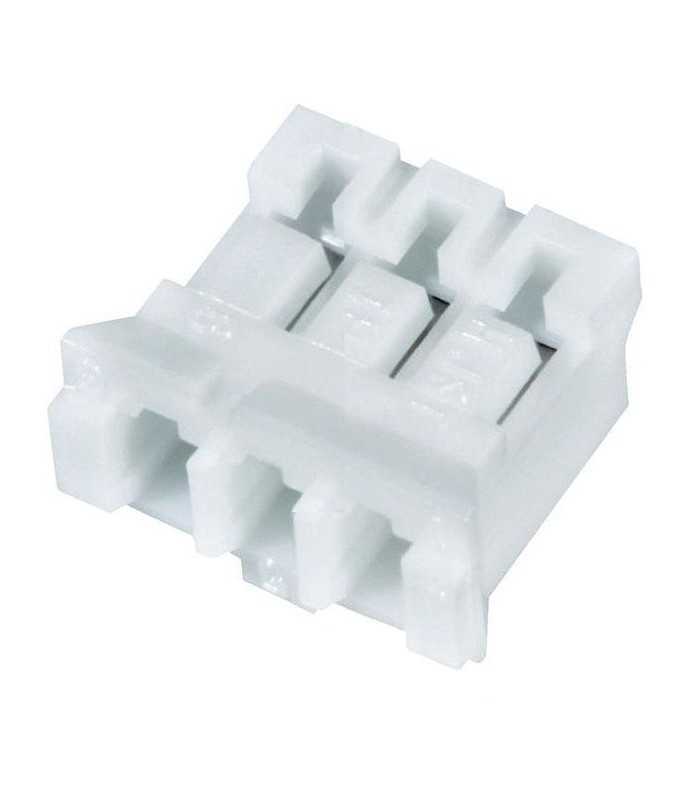

Connector PHR Step 2.00 mm Female 3 Way

Errebi code: 10996
Producer code: PHR-3 Cross Reference
Producer: Japan Solderless Terminals Cross Reference
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.04 (tax excl.)
€0.05 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
50 €0.05 €0.00
100 €0.04 €1.22
150 €0.03 €2.57
300 €0.03 €6.58
550 €0.02 €13.42
1050 €0.02 €28.21
Available in stock 1830 Items
The minimum purchase order quantity for the product is 50.
Condition
New
Reference:
RBCTPHRPF3V
Brand:
ErreBi Group
Add to wishlist
Description
Product Range: JST - PH Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 3
No. of Rows: 1
Pitch Spacing: 2mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Dec-2013)
Colour: White
Contact Resistance Max: 10mohm
Contact Termination: Crimp
Current rating: 2A
Flammability rating: UL94V-0
Insulation Resistance: 1000Mohm
Material: Nylon 6.6
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Working Voltage: 100V
Read moreShow less
Product Details
RBCTPHRPF3V

Data sheet

Product type
Connector body
Serie
PH
Amperage
2A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-25°C a +85°C
Dimensions
6,40x7,80x4,50 (L x W x H)
Flammability
94V-0
Voltage
100V
Mounting
On cable
Kind
Female
Number of poles
3
Number of rows
1
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
50
Unit Type
pieces

Specific References

EAN13
2050000918346
Attachments
010996_001_Drawing.pdf
Download (116.17KB)
