RBCTPHRPF10V

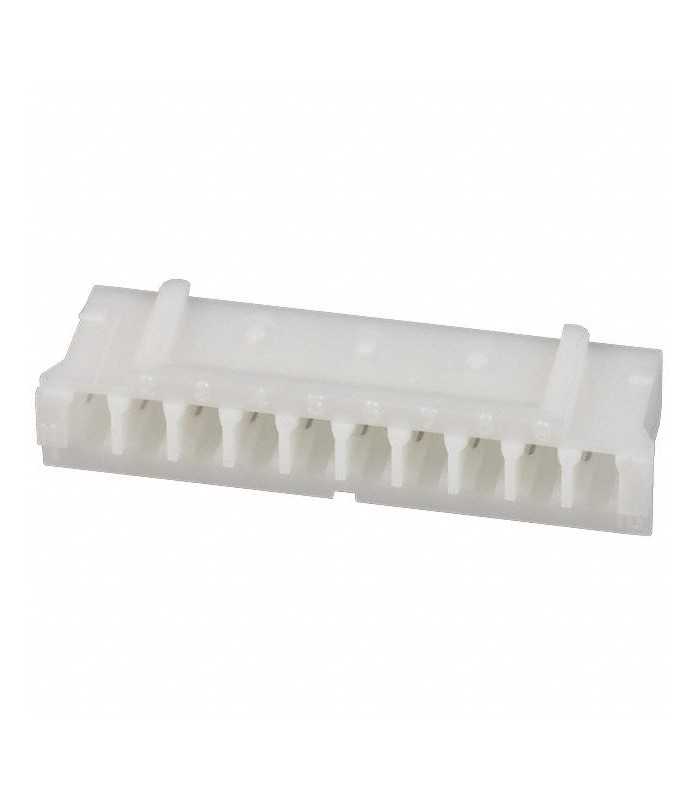

Connector PHR Step 2.00 mm Female 10 Way

Errebi code: 26461
Producer code: PHR-10 Cross Reference
Producer: Japan Solderless Terminals Cross Reference
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.11 (tax excl.)
€0.13 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
70 €0.13 €0.00
140 €0.09 €6.59
280 €0.07 €16.89
560 €0.07 €37.58
1050 €0.06 €77.57
Available in stock 3650 Items
The minimum purchase order quantity for the product is 70.
Condition
New
Reference:
RBCTPHRPF10V
Brand:
ErreBi Group
Add to wishlist
Description
Product Range: JST - PH Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 10
No. of Rows: 1
Pitch Spacing: 2mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Dec-2013)
Colour: White
Contact Resistance Max: 10mohm
Contact Termination: Crimp
Current rating: 2A
Flammability rating: UL94V-0
Insulation Resistance: 1000Mohm
Material: Nylon 6.6
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Working Voltage: 100V
Read moreShow less
Product Details
RBCTPHRPF10V

Data sheet

Product type
Connector body
Serie
PH
Amperage
2A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-25°C a +85°C
Dimensions
6,40x21,80x4,50 (L x W x H)
Flammability
94V-0
Voltage
100V
Mounting
On cable
Kind
Female
Number of poles
10
Number of rows
1
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
70
Unit Type
pieces
