RBCTPHRPF12V

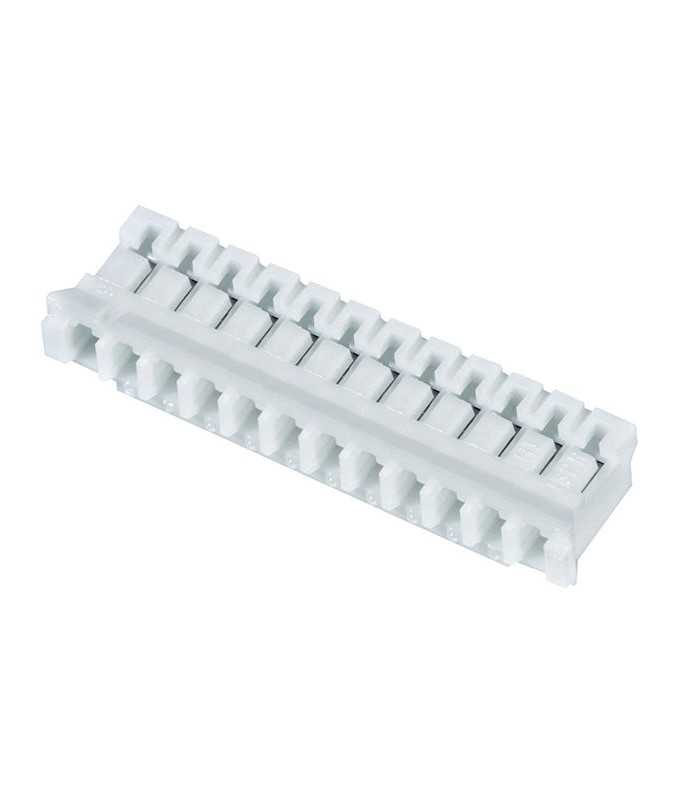

Connector PHR Step 2.00 mm Female 12 Way

Errebi code: 20375
Producer code: PHR-12 Cross Reference
Producer: Japan Solderless Terminals Cross Reference
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.19 (tax excl.)
€0.23 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
20 €0.23 €0.00
40 €0.19 €1.85
60 €0.17 €3.48
120 €0.15 €9.76
260 €0.13 €27.09
520 €0.12 €60.27
1020 €0.10 €130.16
Available in stock 760 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTPHRPF12V
Brand:
ErreBi Group
Add to wishlist
Description
Product Range: JST - PH Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 12
No. of Rows: 1
Pitch Spacing: 2mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Dec-2013)
Colour: White
Contact Resistance Max: 10mohm
Contact Termination: Crimp
Current rating: 2A
Flammability rating: UL94V-0
Insulation Resistance: 1000Mohm
Material: Nylon 6.6
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Working Voltage: 100V
Read moreShow less
Product Details
RBCTPHRPF12V

Data sheet

Product type
Connector body
Serie
PH
Amperage
2A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-25°C a +85°C
Dimensions
6,40x25,80x4,50 (L x W x H)
Flammability
94V-0
Voltage
100V
Mounting
On cable
Kind
Female
Number of poles
12
Number of rows
1
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
20
Unit Type
pieces
Attachments
020375_001_Drawing.pdf
Download (116.17KB)
