RBMRST2VP5.00

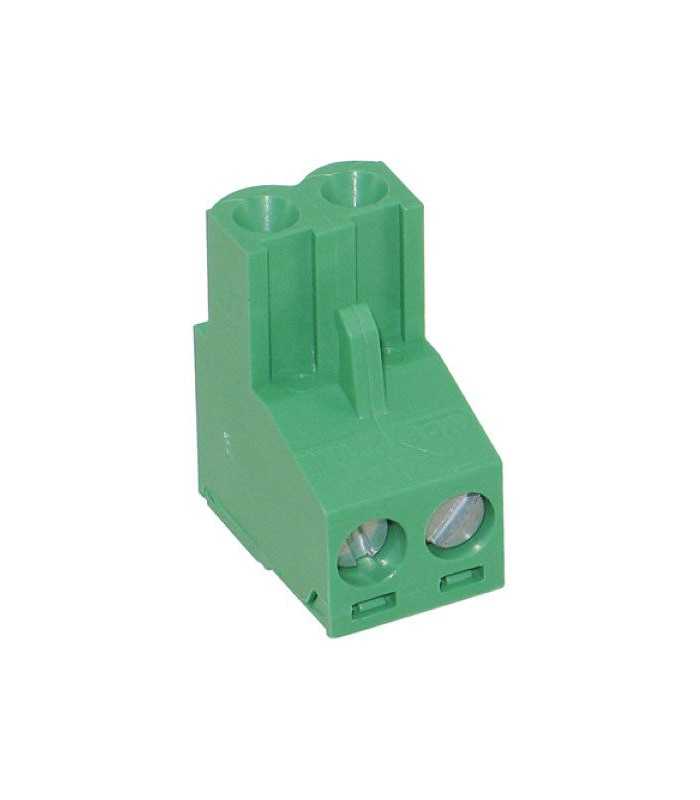

Connector terminal block to carriage 5,00 pitch Female 2 Way Green

ErreBi code: 10751
Producer code: SH02-5
Producer: EuroClamp
Read moreShow less
€0.43 (tax excl.)
€0.52 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €0.52 €0.00
10 €0.47 €0.52
25 €0.42 €2.62
50 €0.39 €6.56
100 €0.34 €18.41
250 €0.29 €58.95
500 €0.26 €131.15
1000 €0.24 €288.79
Available in stock 220 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBMRST2VP5.00
Brand:
EuroClamp
Add to wishlist
Description
Generality
- Pitch: 5 mm
- Body height: 15.50 mm
- Body depth: 18.85mm
- Size class: medium
- Conductor section: 2.5 mmq / 14 AWG
- Cable entry section: 2.8 × 3.1 mm
- Cable stripping: max 8 mm
- Working temperature: -40 ° C ÷ + 130 ° C

Electrical characteristics
- Current: 16A
- Voltage: 250V
- Pulse voltage: 4 kV

Mechanical characteristics
- Screw: M3
- Maximum torque: 0.5 Nm / 4.5 Lb-in

Materials
- Insulating body: PA - UL 94 V0
- Screw: Galvanized steel
- Clamp / spring: Nickel-plated copper alloy
- Terminal: Nickel-plated copper alloy
Read moreShow less
Product Details
RBMRST2VP5.00

Data sheet

Product type
Terminal
Amperage
16A
Material
PA (Polyamide, Nylon)
Color
Green
Operating temperature
-40°C to +130°C
Flammability
94V-0
Voltage
250V
Contact material
Copper Alloy
Mounting
On cable
Wire range
2.50 mmq
Kind
Female
Number of poles
2
Number of rows
1
Pitch
5.00 mm
Orientation
180°
Contact plating
Nickel
Minimum order quantity
5
Unit Type
pieces
Attachments
010751_001_Drawing.pdf
Download (1.21MB)
