€1.10
(tax excl.)
€1.34
(tax incl.)
ErreBi code: 63680Producer code: 15EDGKD-2.5-02P-13-00AHProducer: Degson

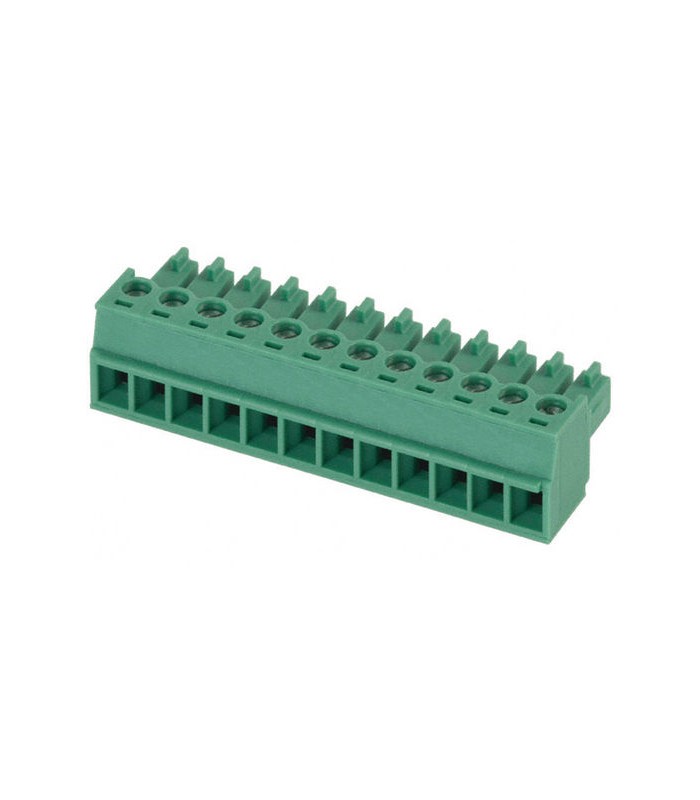

Connector terminal block to carriage 3,81 pitch Female 12 Way Green
ErreBi code: 16522
Producer code: Cross reference 1803675
Producer: Cross reference Phoenix Contact
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross reference 1803675
Producer: Cross reference Phoenix Contact
Please note: the item is a reproduction of the original, please contact us for more information.
€2.80
(tax excl.)
€3.42
(tax incl.)
Condition
New
Reference:
RBMRST12VP3.81
Brand:
Add to wishlist
It is a 2-position plug-in terminal block with screw connection. The terminal block features 3.81mm pitch spacing and is suitable for cables from 28AWG to 16AWG.
Nominal section: 1,5 mmq
Green colour
Rated current: 8 A
Rated voltage (III / 2): 160V
Contact surface: Tin
Contact type: Female
Number of potentials: 12
Number of rows: 1
Number of poles per row: 12
Number of connections: 12
Product series: MC 1,5 /..- ST
Pitch: 3.81mm
Connection: Screw connection with cage
Conductor / board connection direction: 0 °
Stecksystem: MINI COMBICON
Blocking: absent
Read moreShow less
Nominal section: 1,5 mmq
Green colour
Rated current: 8 A
Rated voltage (III / 2): 160V
Contact surface: Tin
Contact type: Female
Number of potentials: 12
Number of rows: 1
Number of poles per row: 12
Number of connections: 12
Product series: MC 1,5 /..- ST
Pitch: 3.81mm
Connection: Screw connection with cage
Conductor / board connection direction: 0 °
Stecksystem: MINI COMBICON
Blocking: absent
RBMRST12VP3.81
Data sheet
- Product type
- Terminal
- Amperage
- 8A
- Color
- Green
- Dimensions
- 16,10x46,51x11,10 (L x W x H)
- Voltage
- 160V
- Mounting
- On cable
- Wire range
- 28 - 16 AWG
- Kind
- Female
- Number of poles
- 12
- Number of rows
- 1
- Pitch
- 3.81mm
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 1
- Unit Type
- piece
