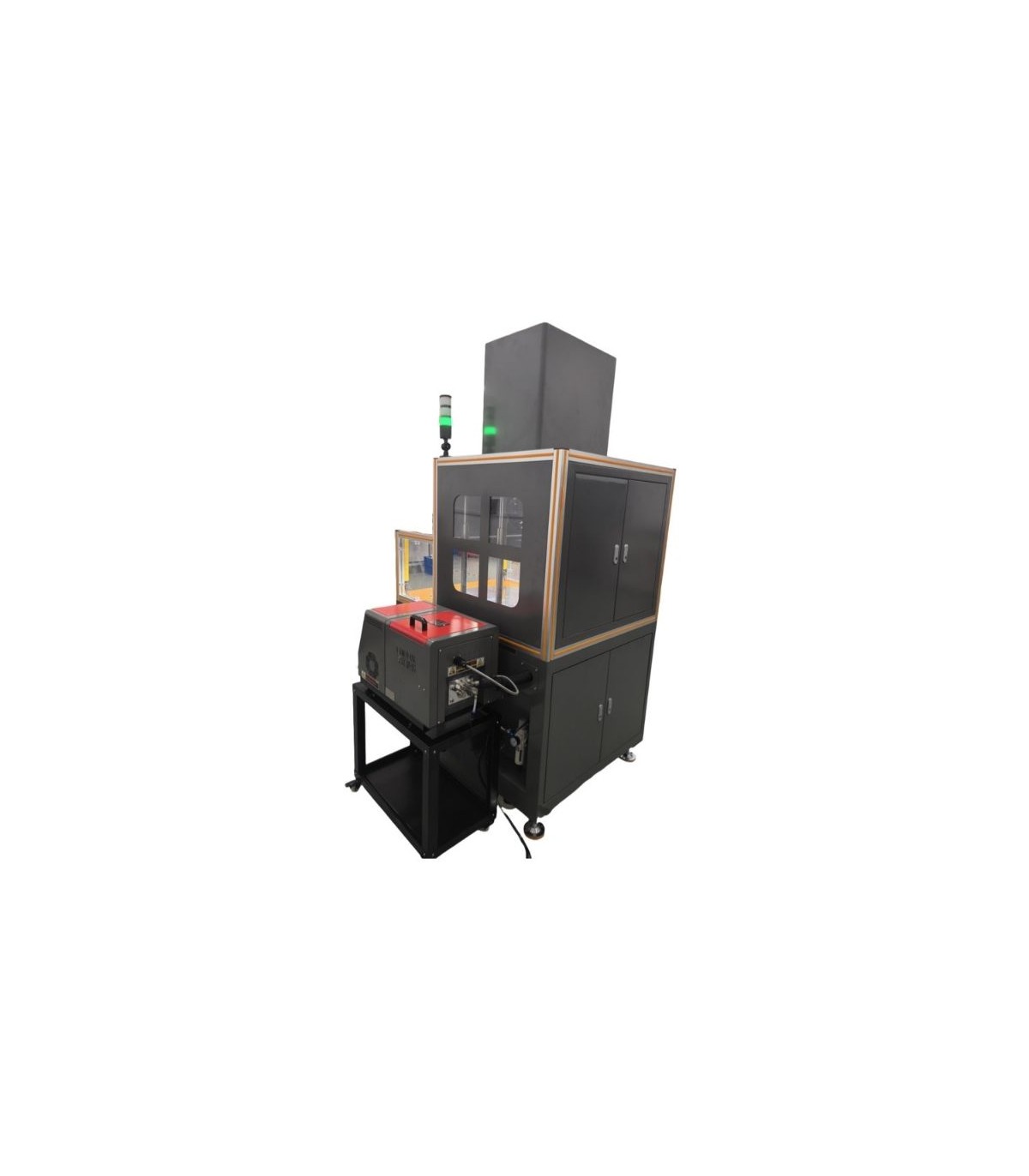

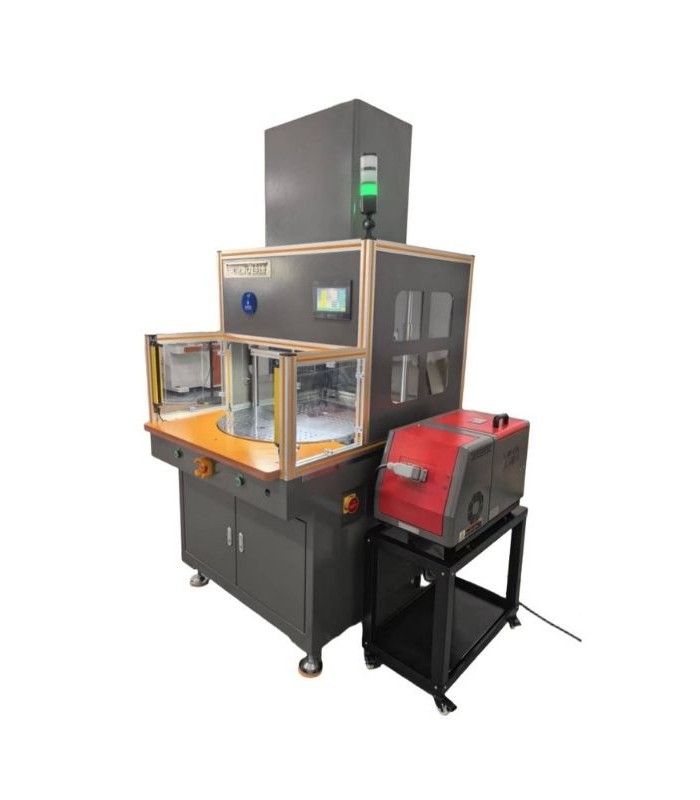

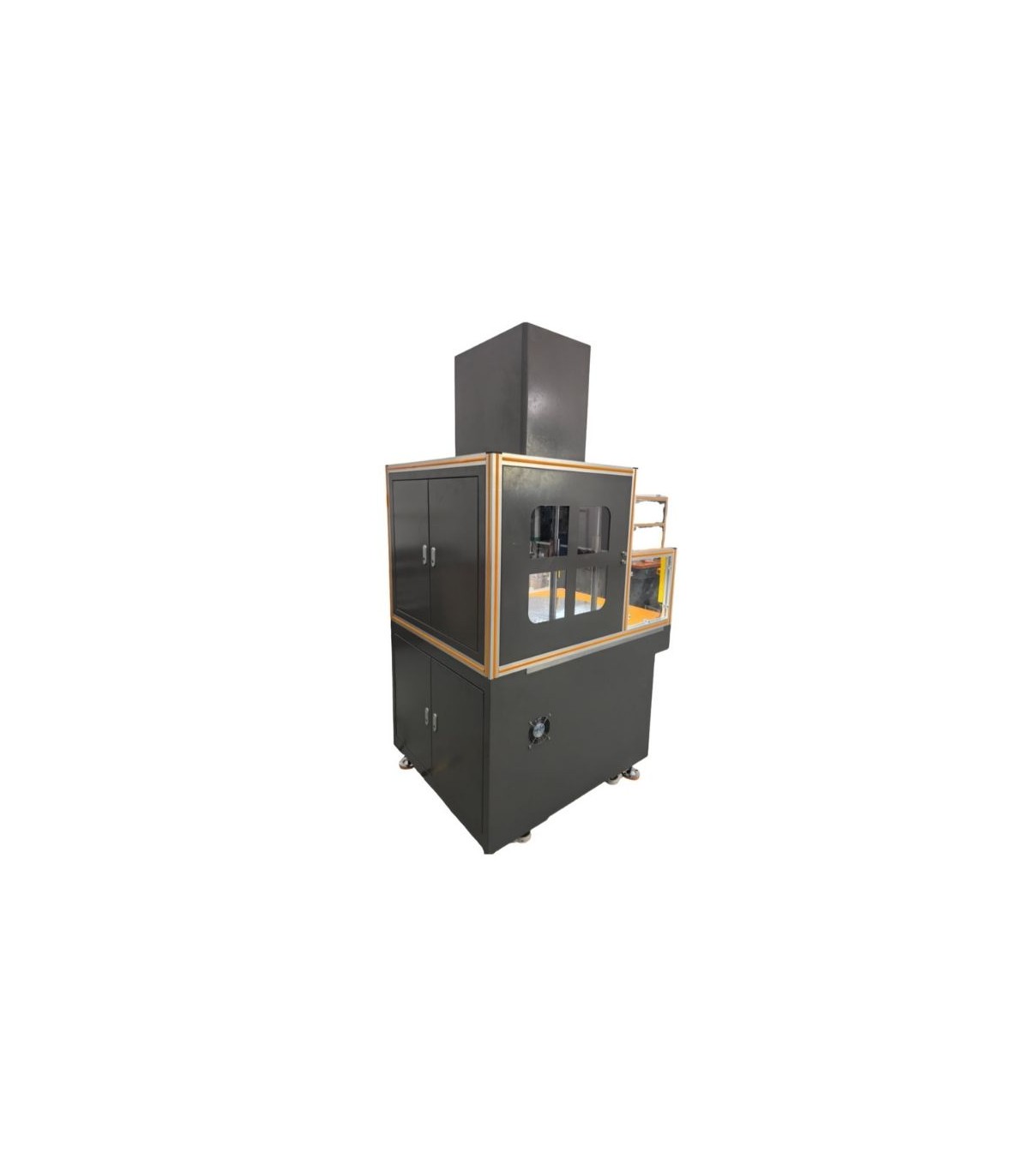

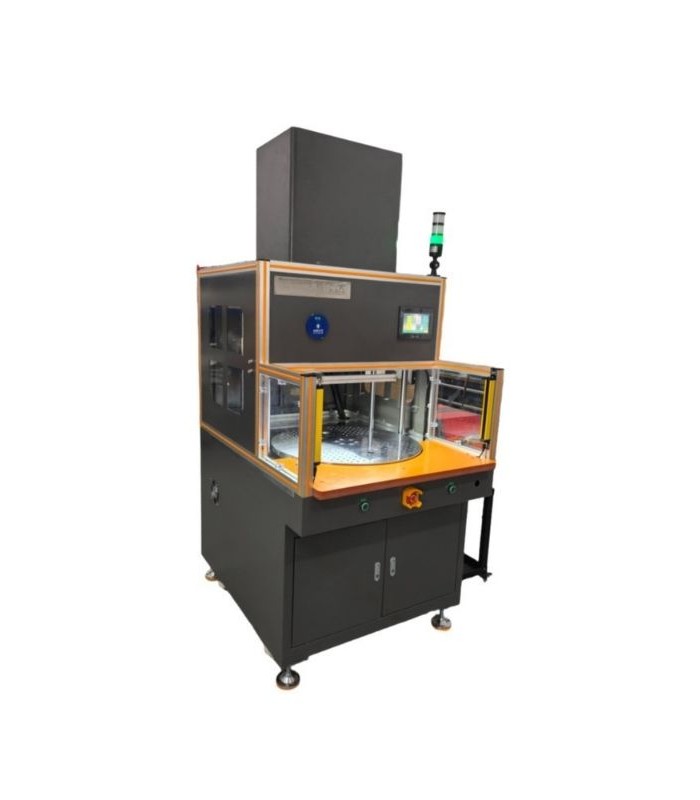

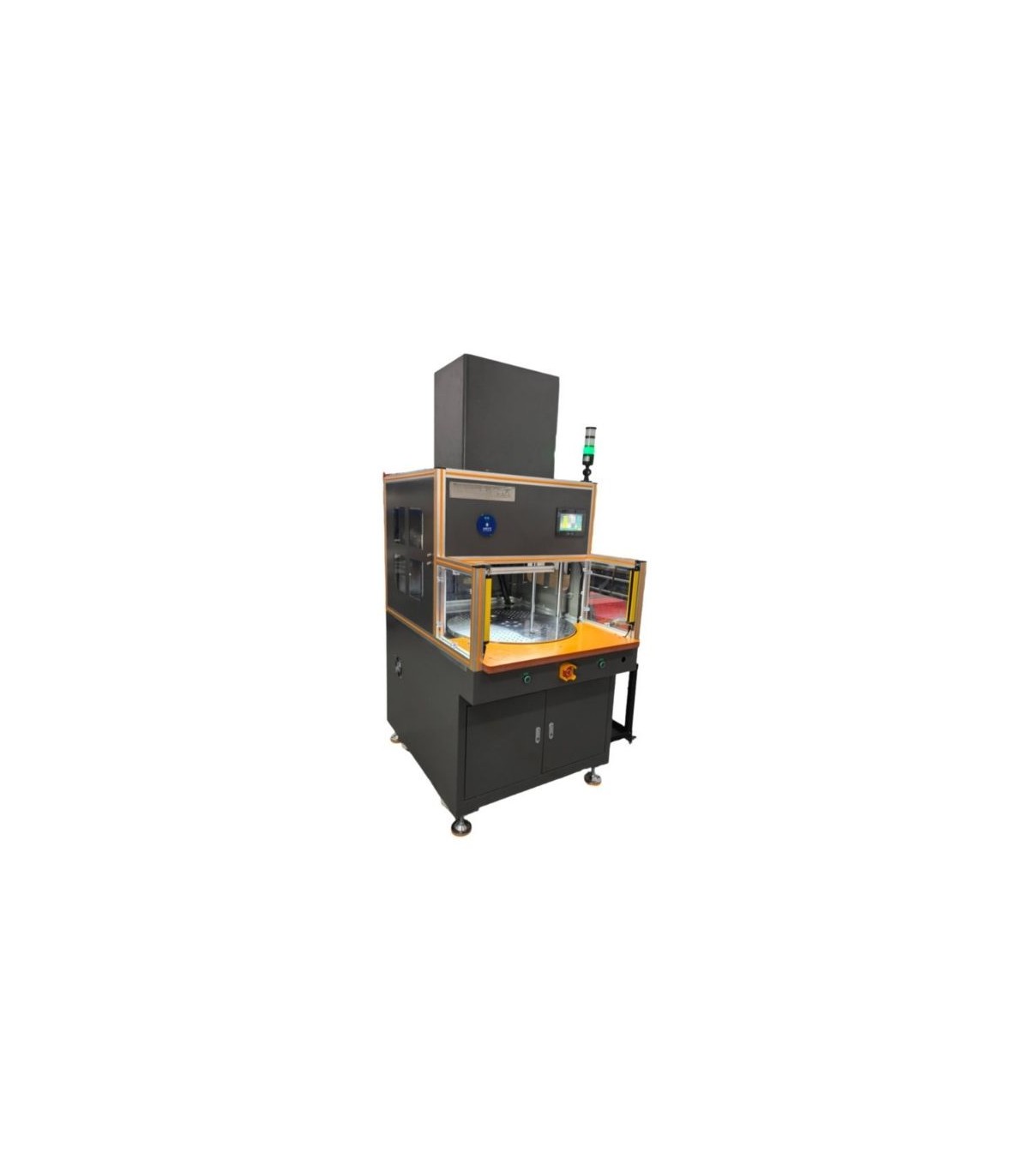

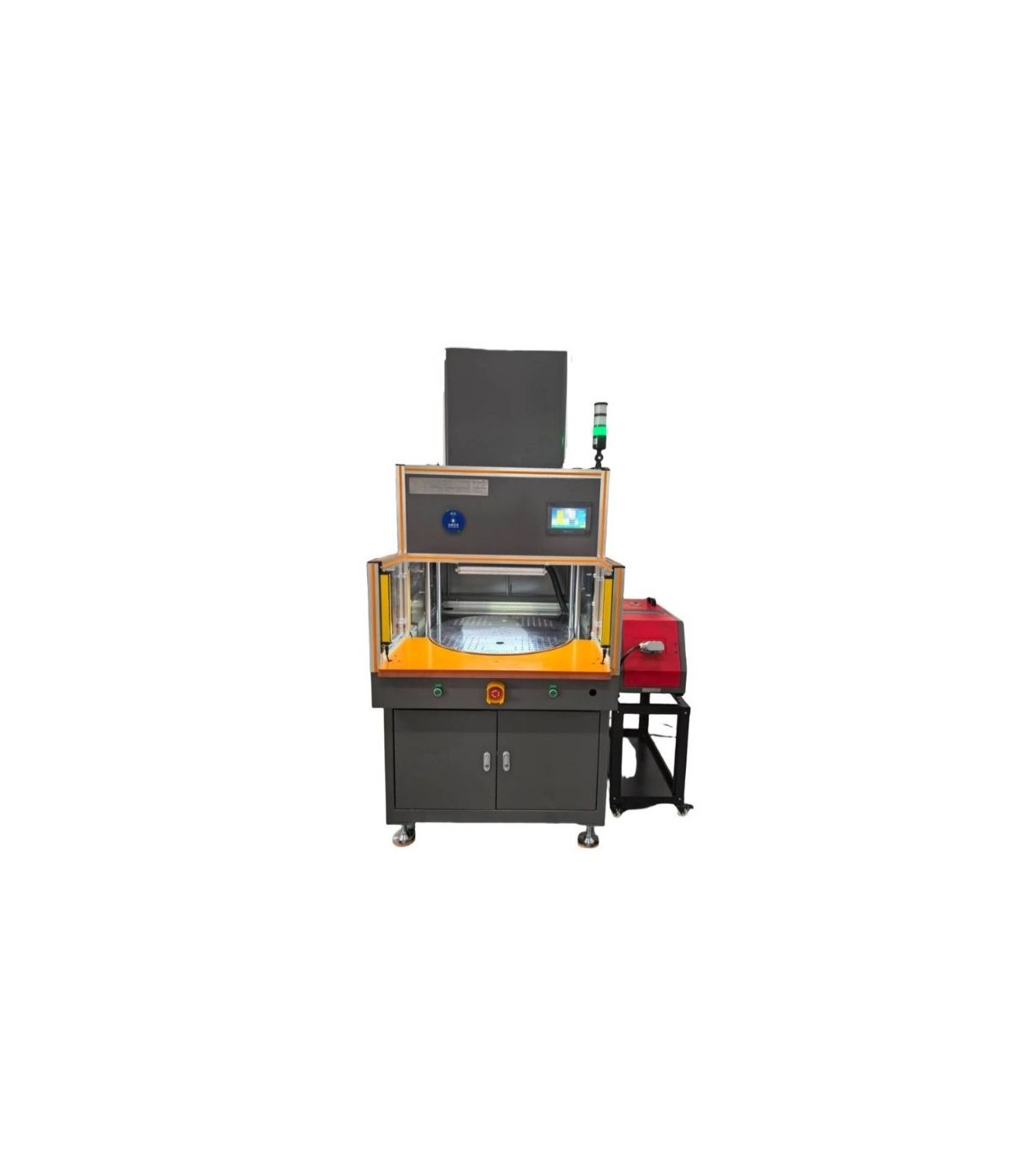

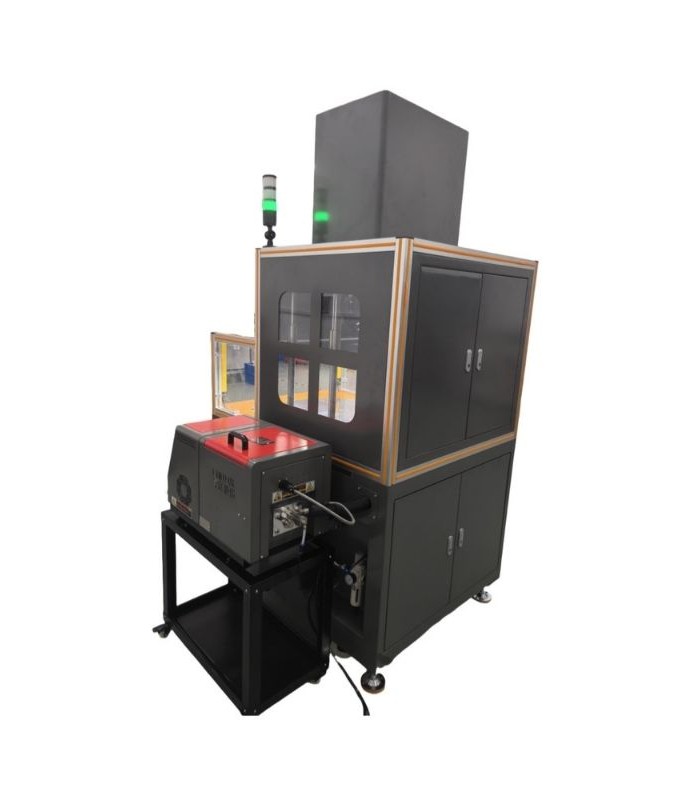

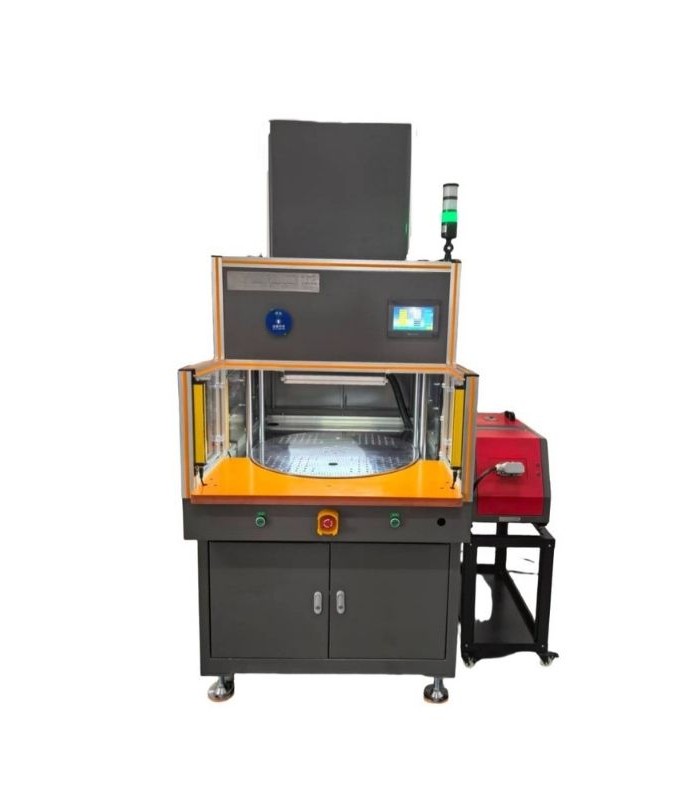

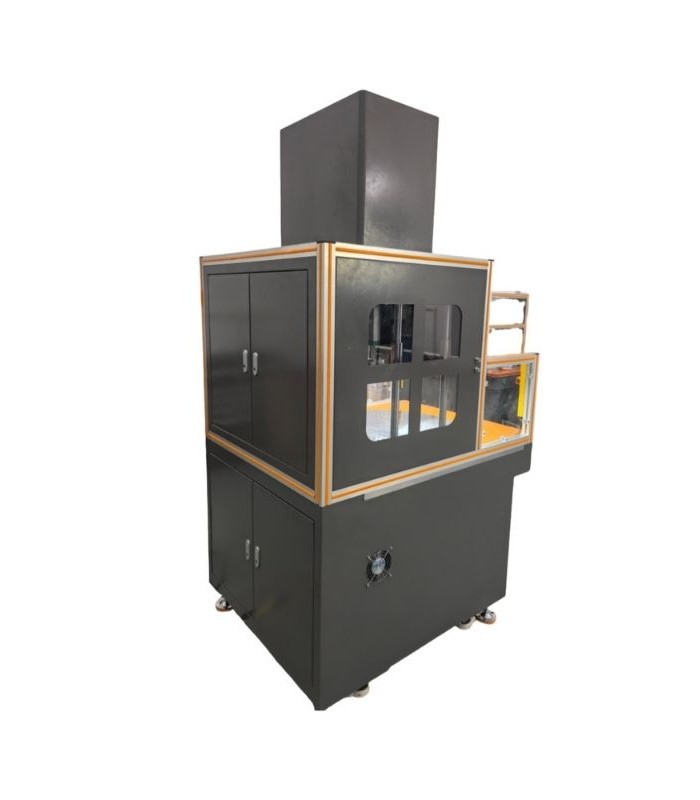

Low-pressure overmoulding press with rotary table (3 or 7 L)

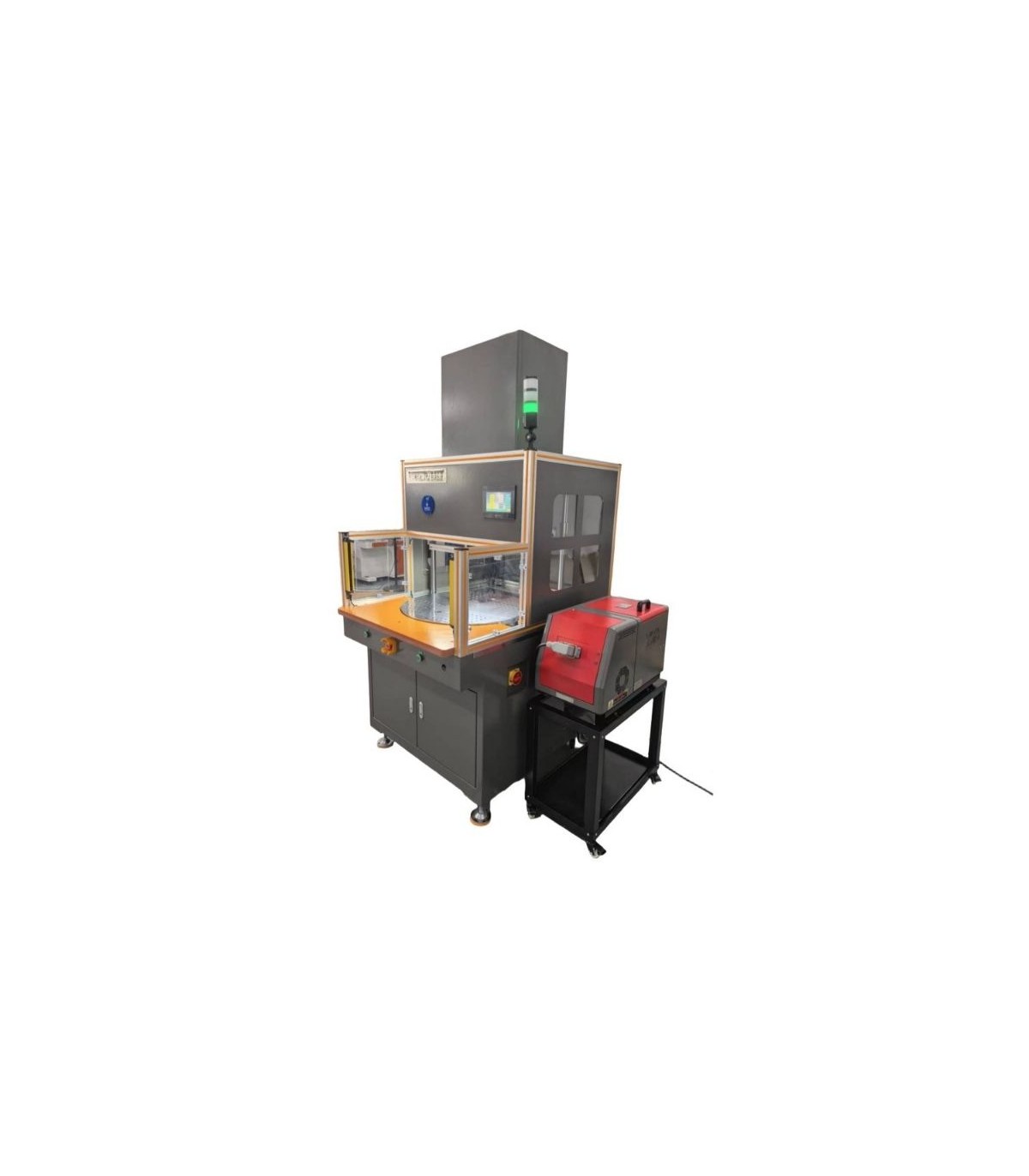

The RBLM25T is a hot-melt moulding machine with a rotary table, designed for low-pressure moulding/overmoulding using hot-melt adhesives. It is ideal for encapsulating and protecting cables, connectors, sensors, and small components, delivering clean and repeatable overmoulding results (e.g., strain relief, insulation, protection against dust/moisture). Its key advantage is the 700 mm rotary table, which improves cycle efficiency: while one station is running, the other can be prepared, reducing downtime and increasing productivity.

The integrated melting system with a 7-litre tank and multi-zone temperature control helps keep the material stable and consistent throughout production, with temperatures up to 250 °C and the ability to process materials up to 20,000 CPS viscosity. The machine supports moulds with water cooling and includes useful features such as timed automatic heating and a modular design for easier maintenance. For safety, it is equipped with two-hand control, a light curtain, overheat protection, and interlocks.

Main technical data:

• Tank capacity: 7 L


• Rotary table diameter: 700 mm


• Max melting output: 4 kg/h


• Max operating temperature: 250 °C


• Max material viscosity: 20,000 CPS


• Max clamping force: 1800 kg


• Air pressure: 5–6 kg/cm²


• Power: 4500 W


• Power supply: AC 220V / 32A


• Dimensions (L×W×H): 956 × 1253 × 1662 mm


• Weight: 400 kg


• Nozzle angle: 30°


• Hose: 1 set
