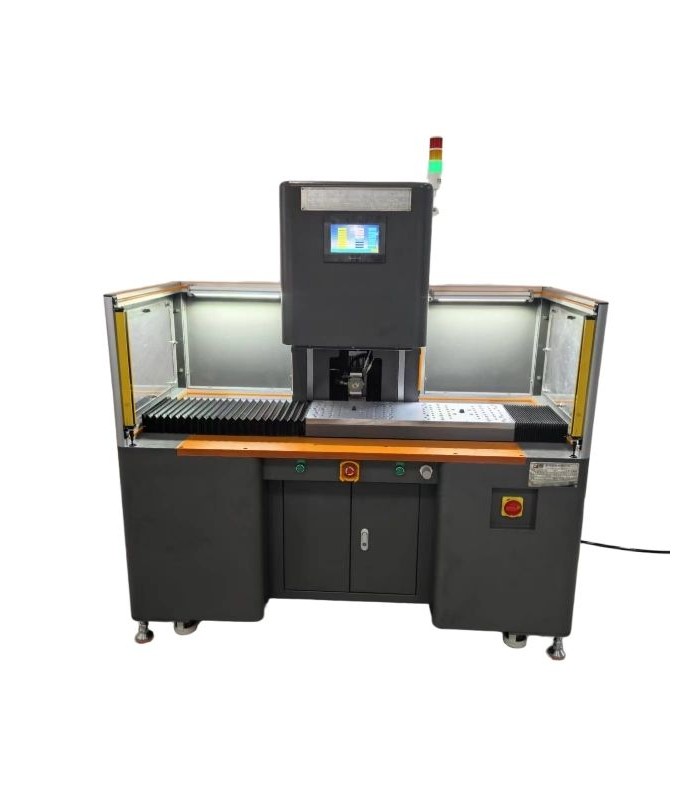

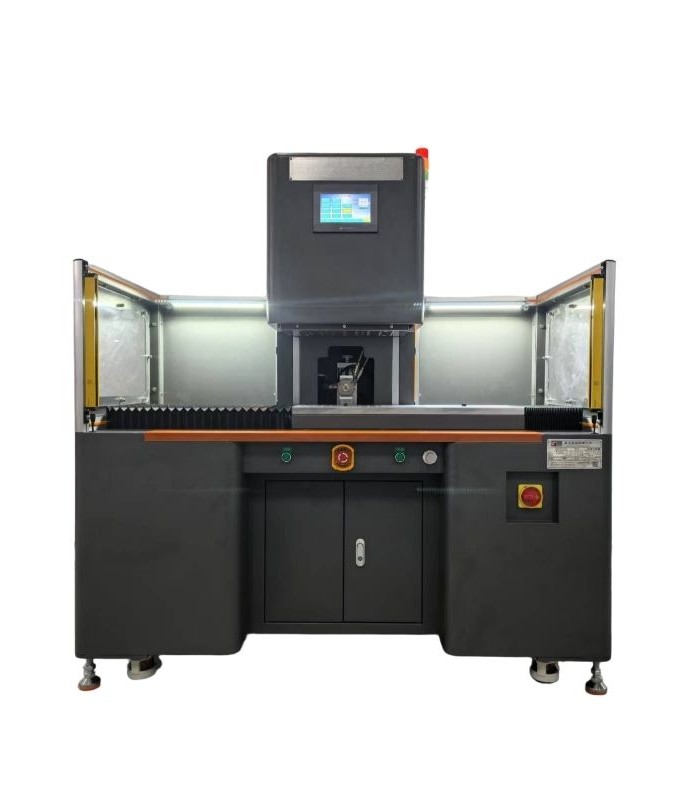

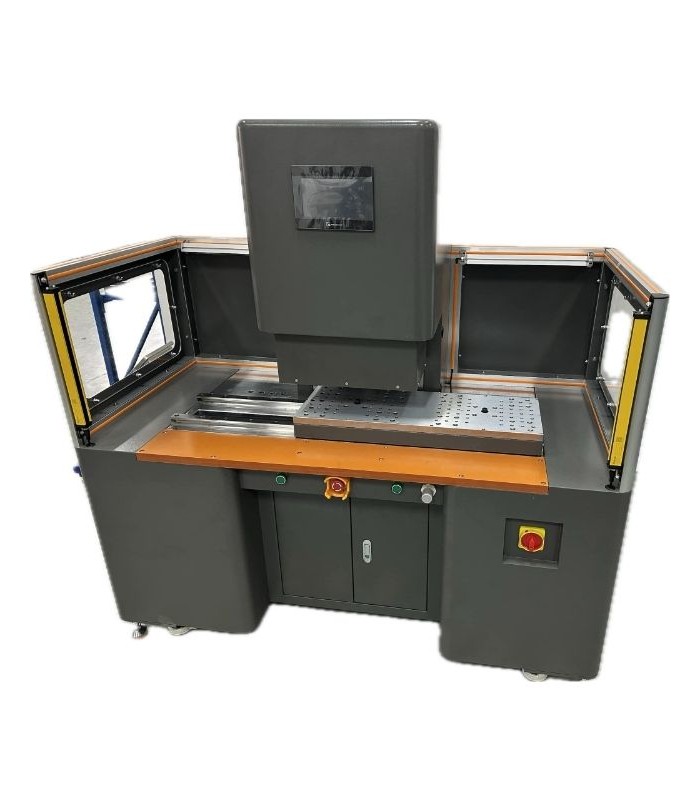

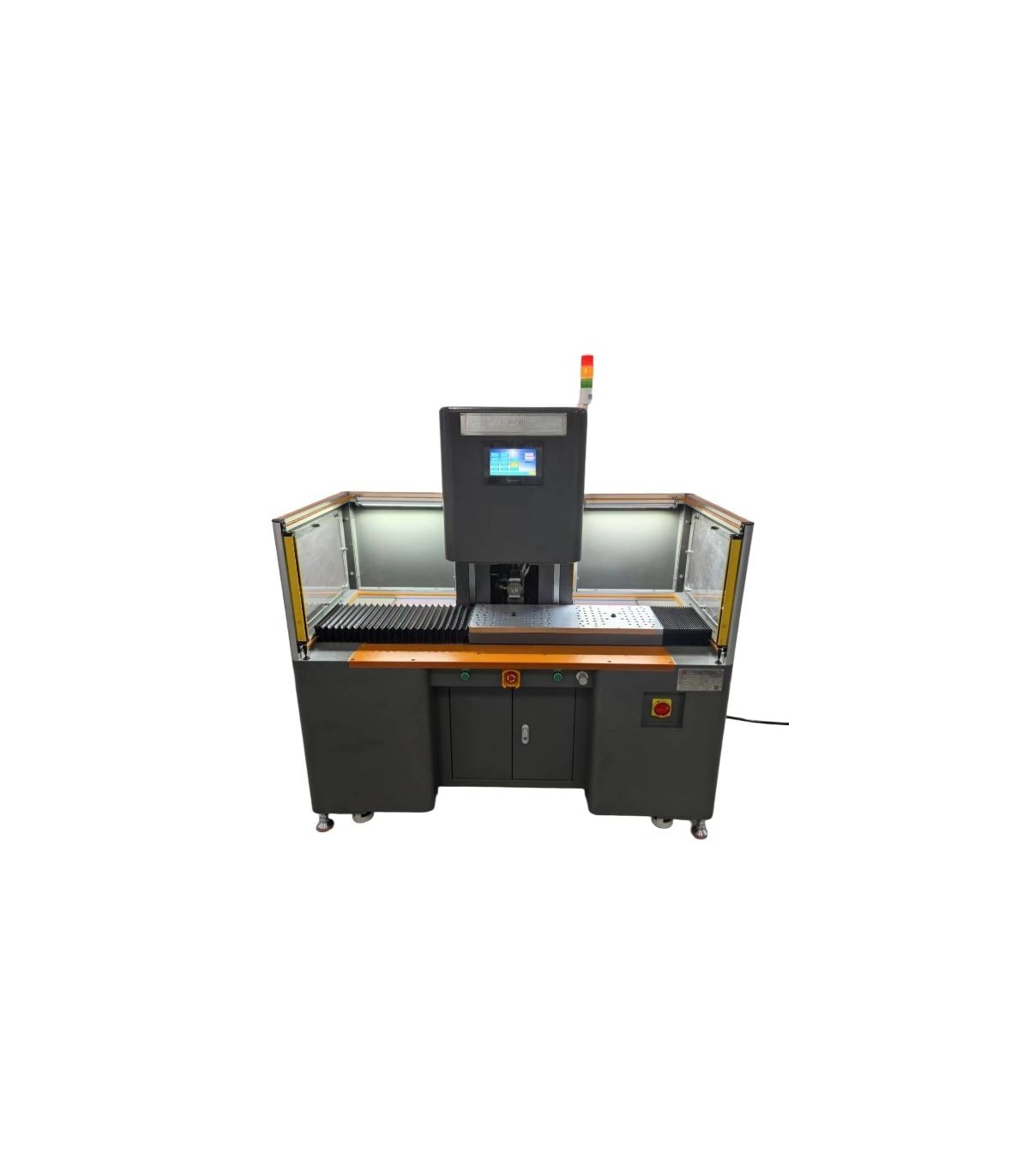

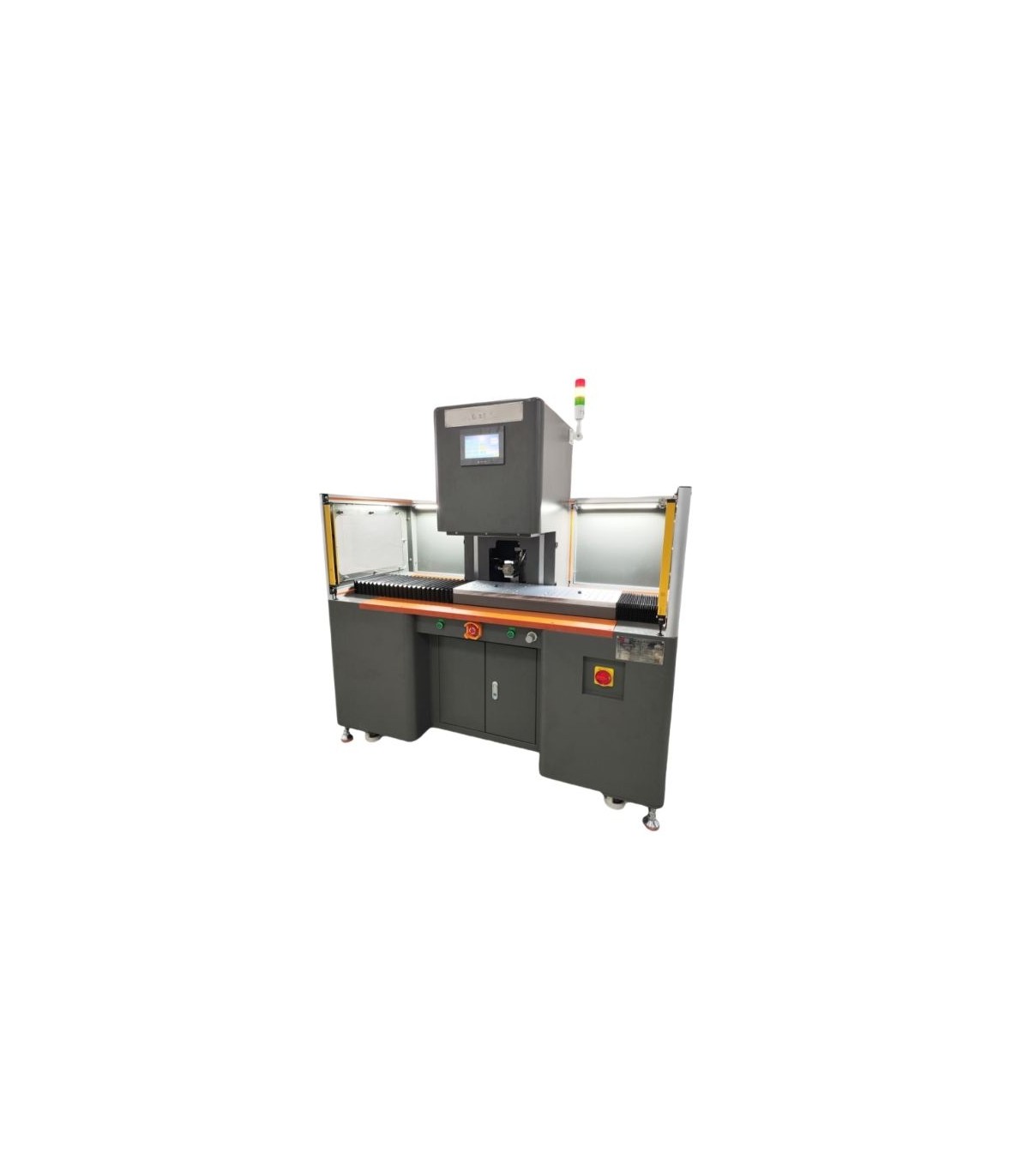

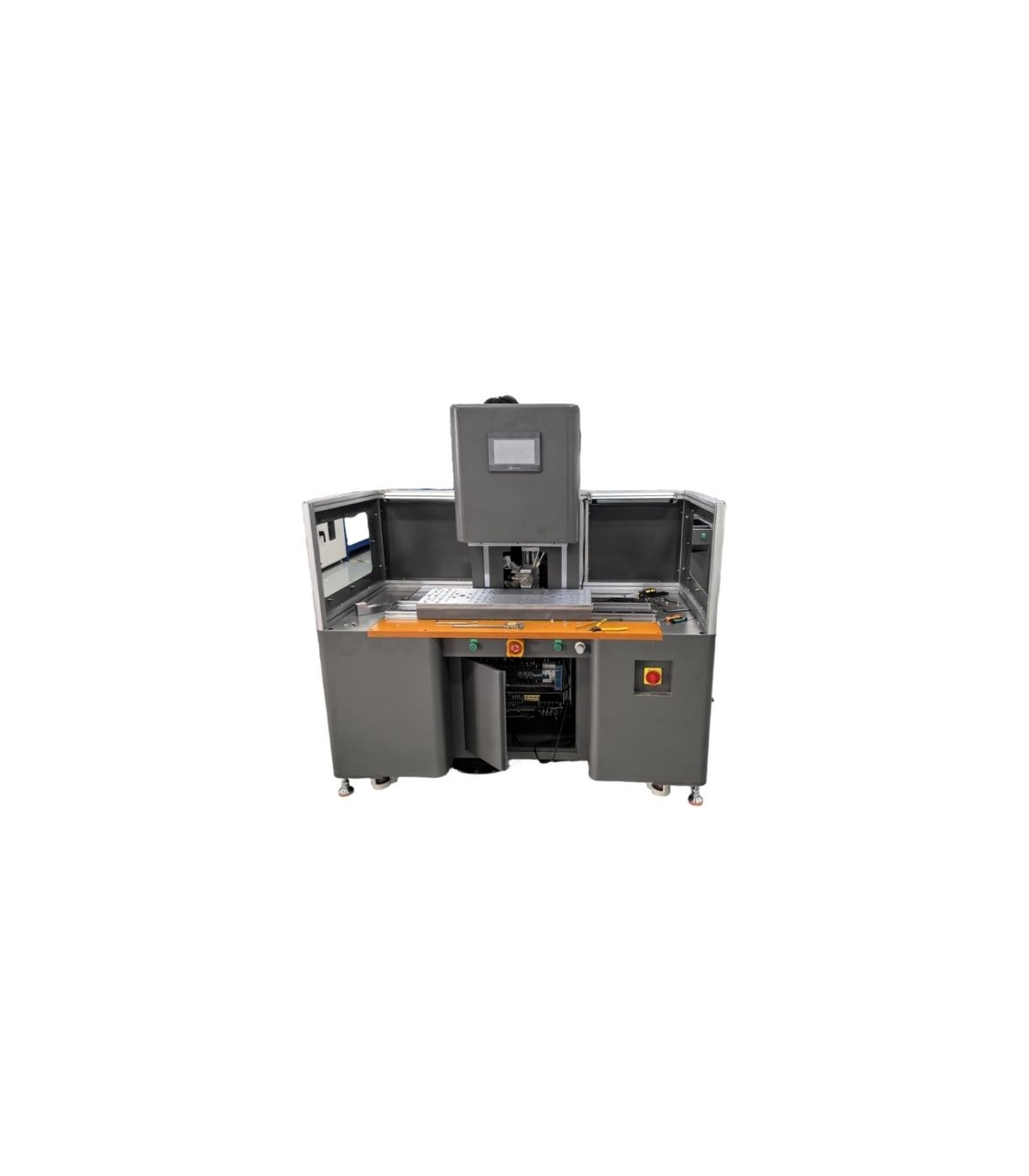

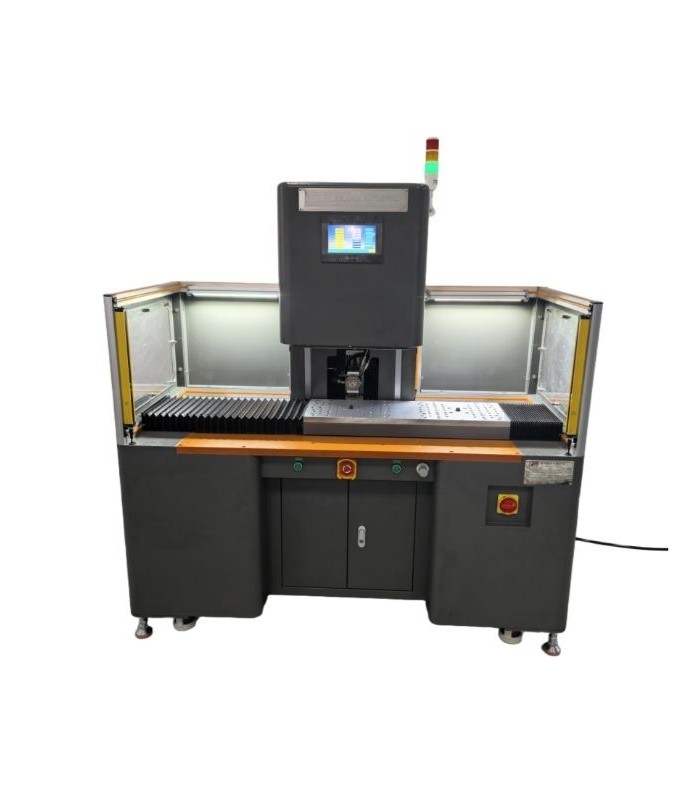

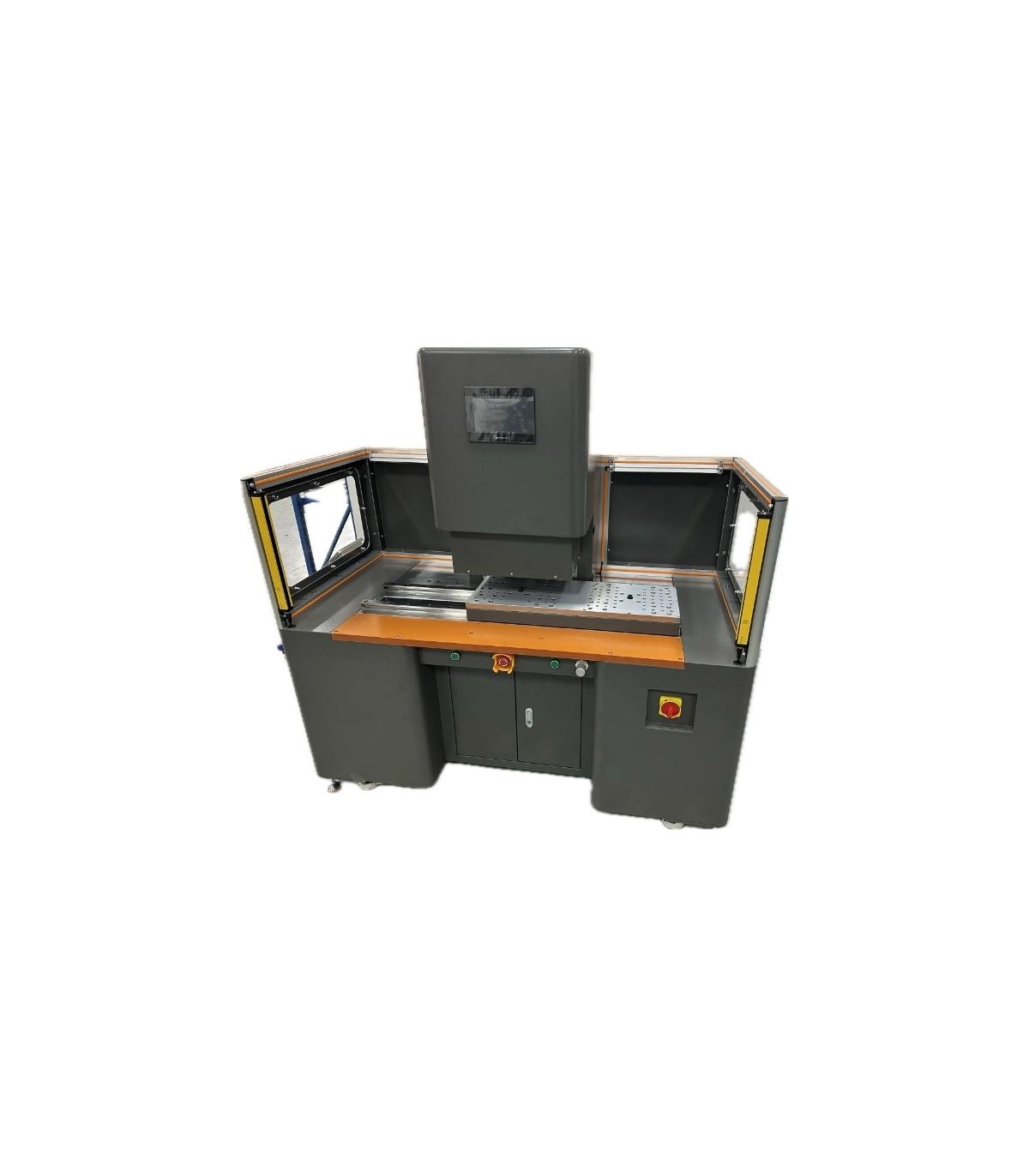

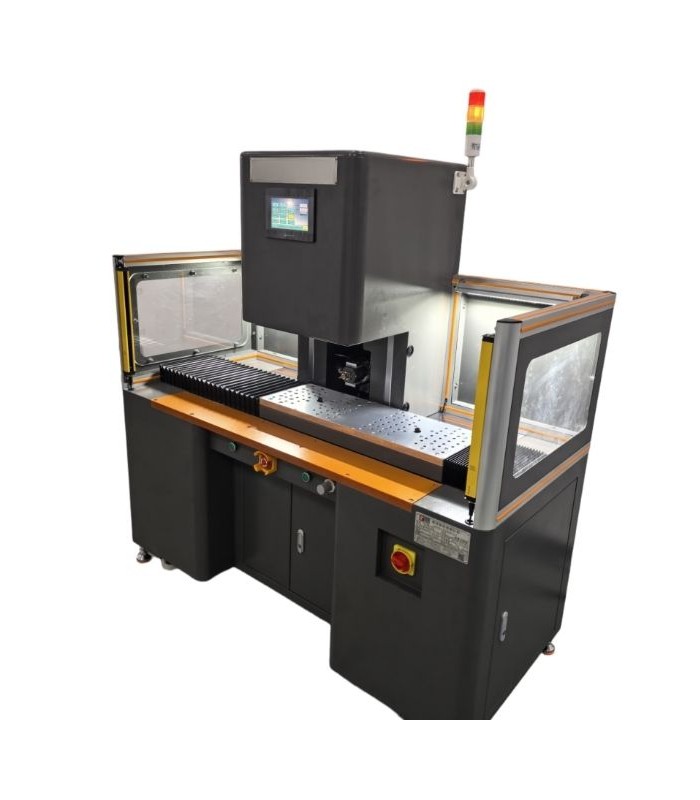

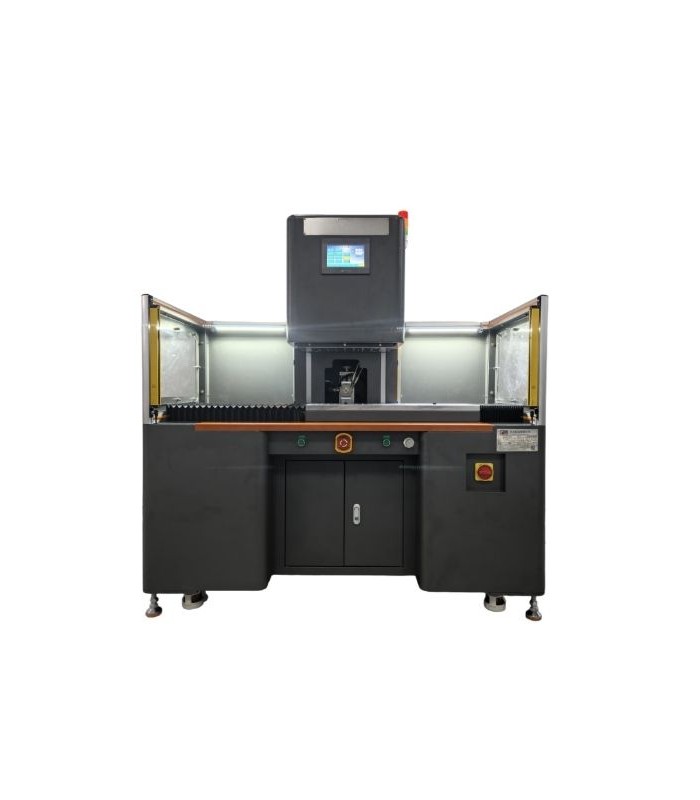

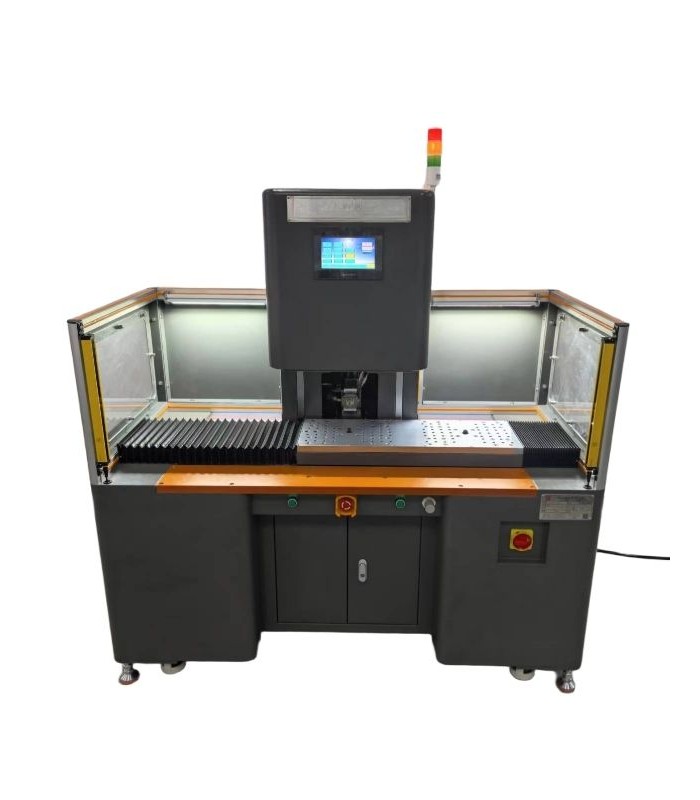

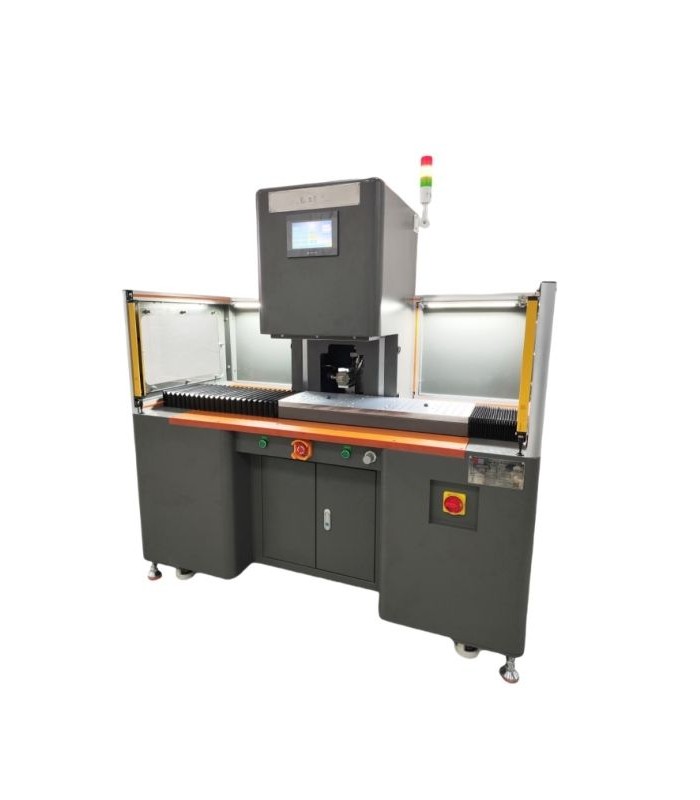

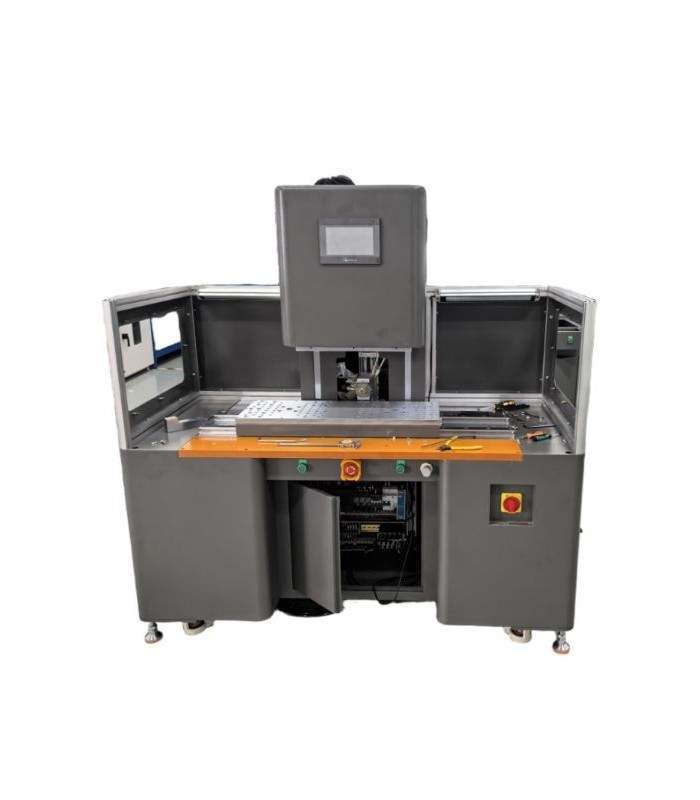

Low-pressure overmoulding press with double platform (3L or 7L)

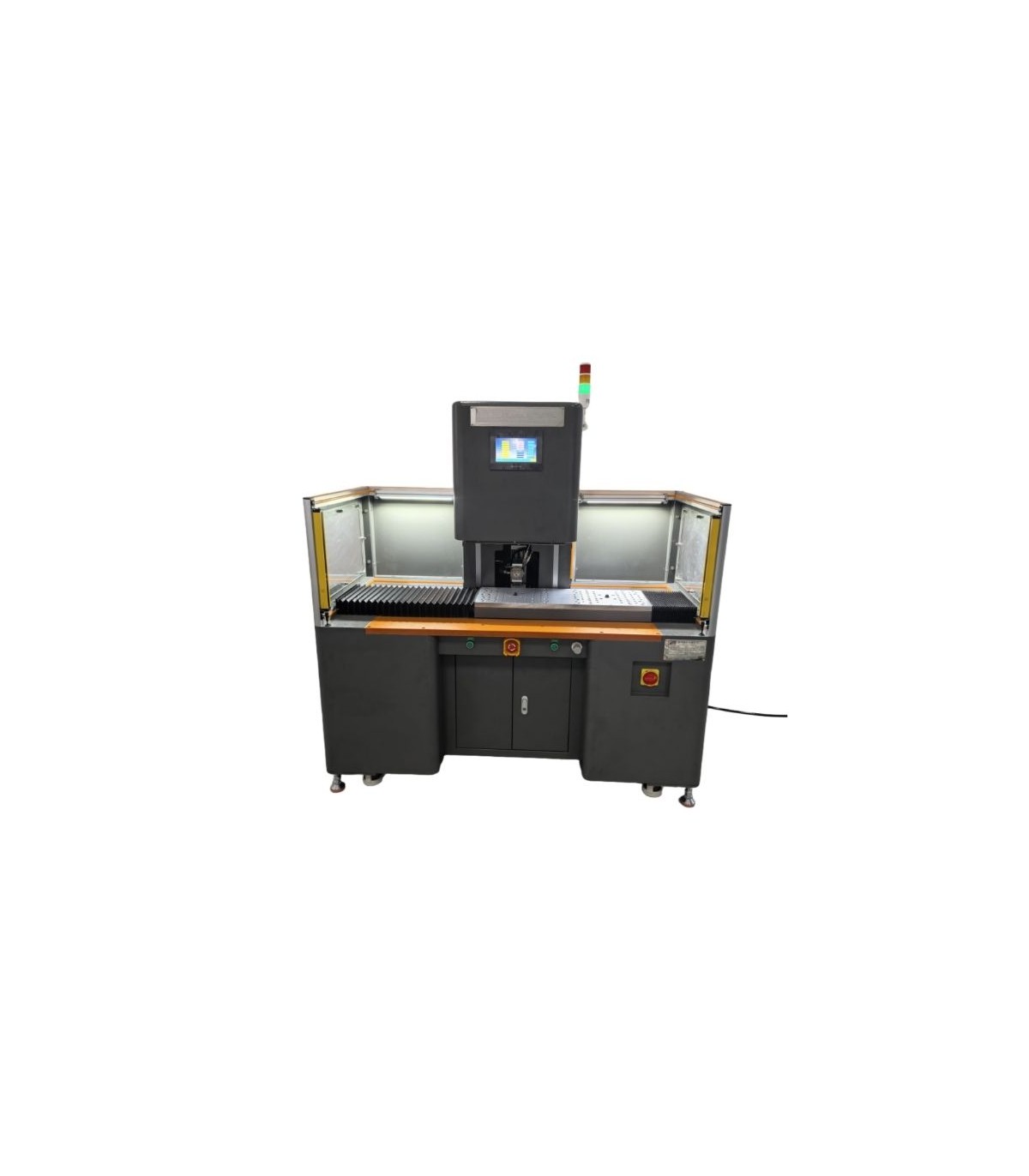

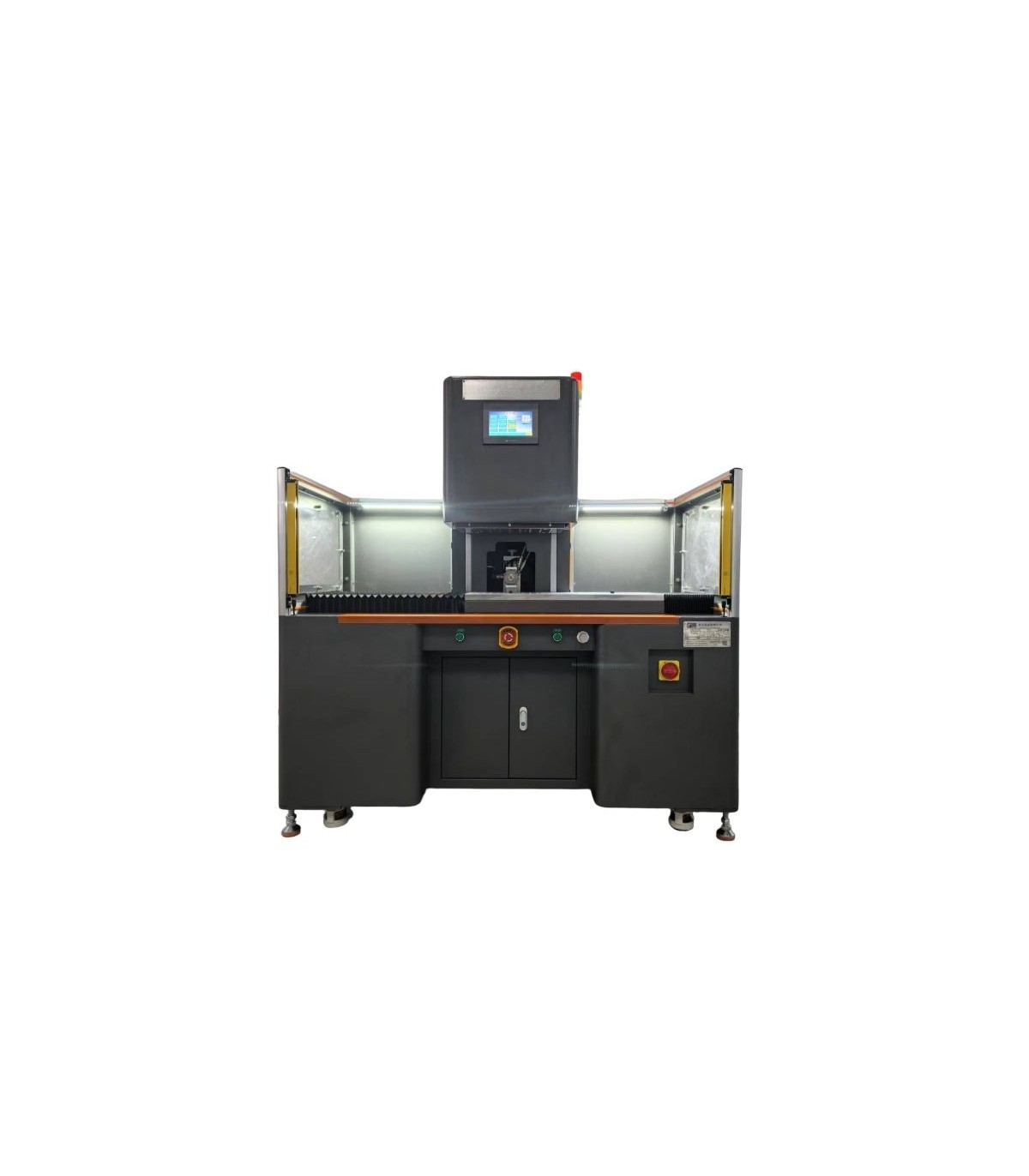

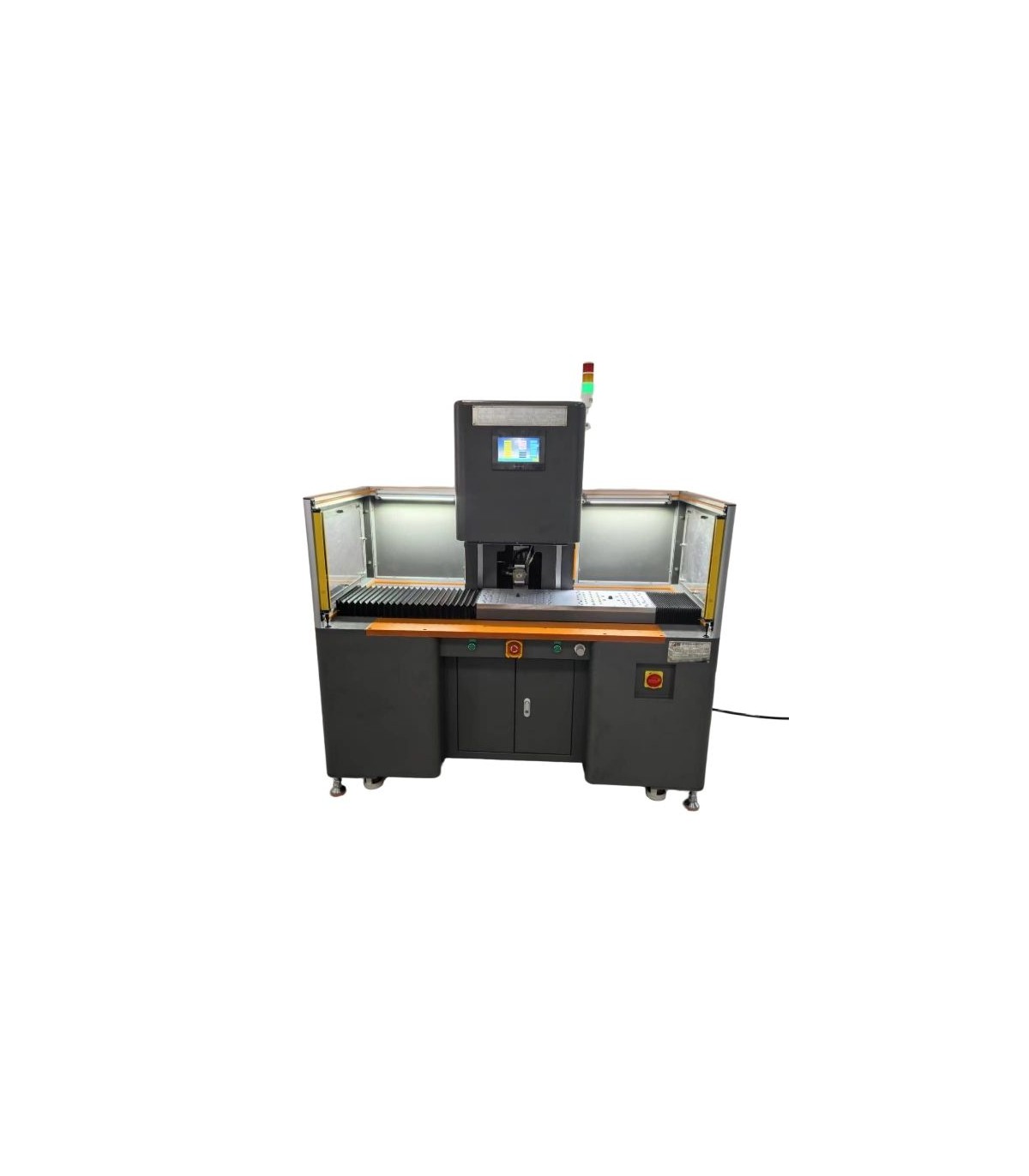

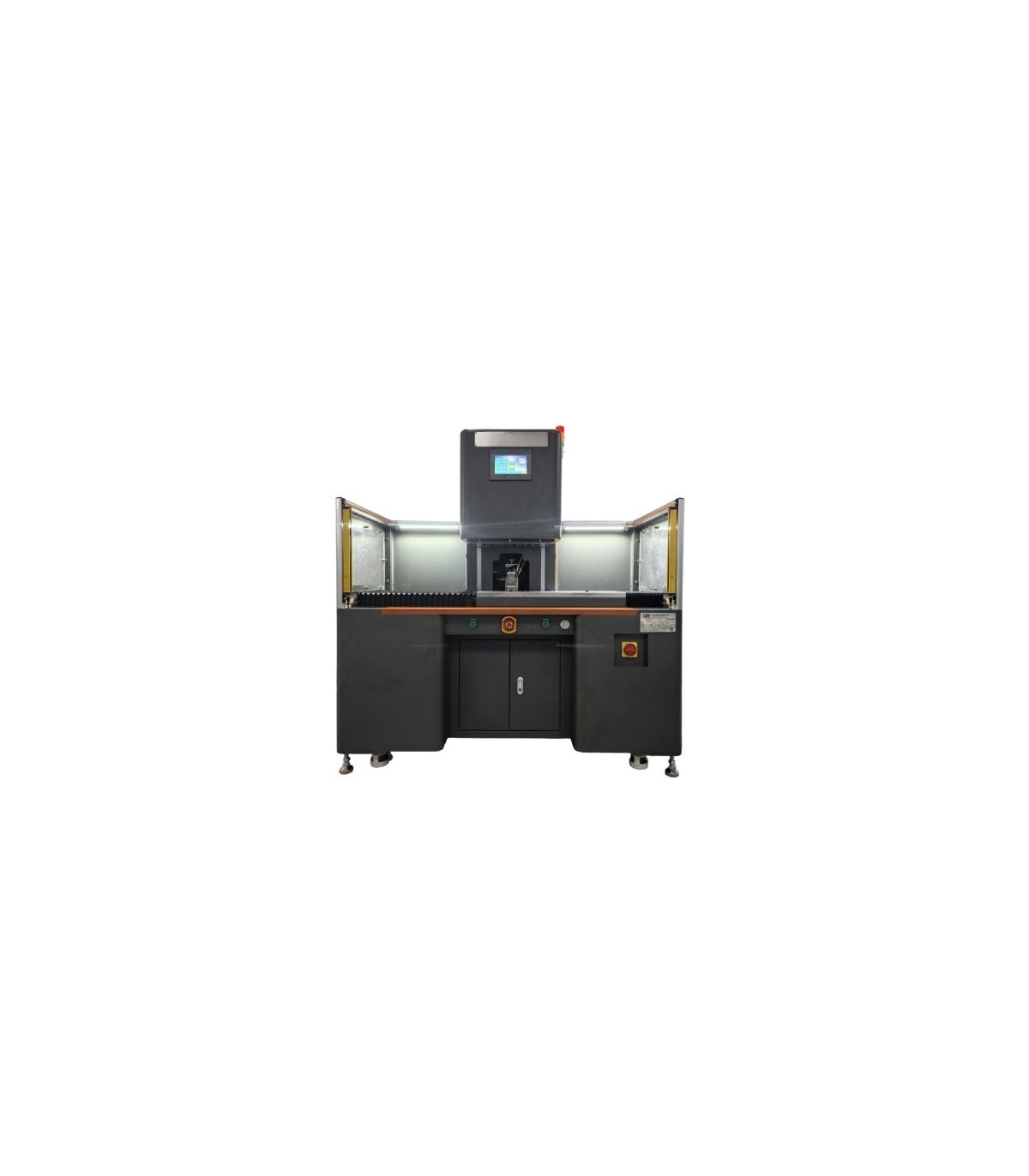

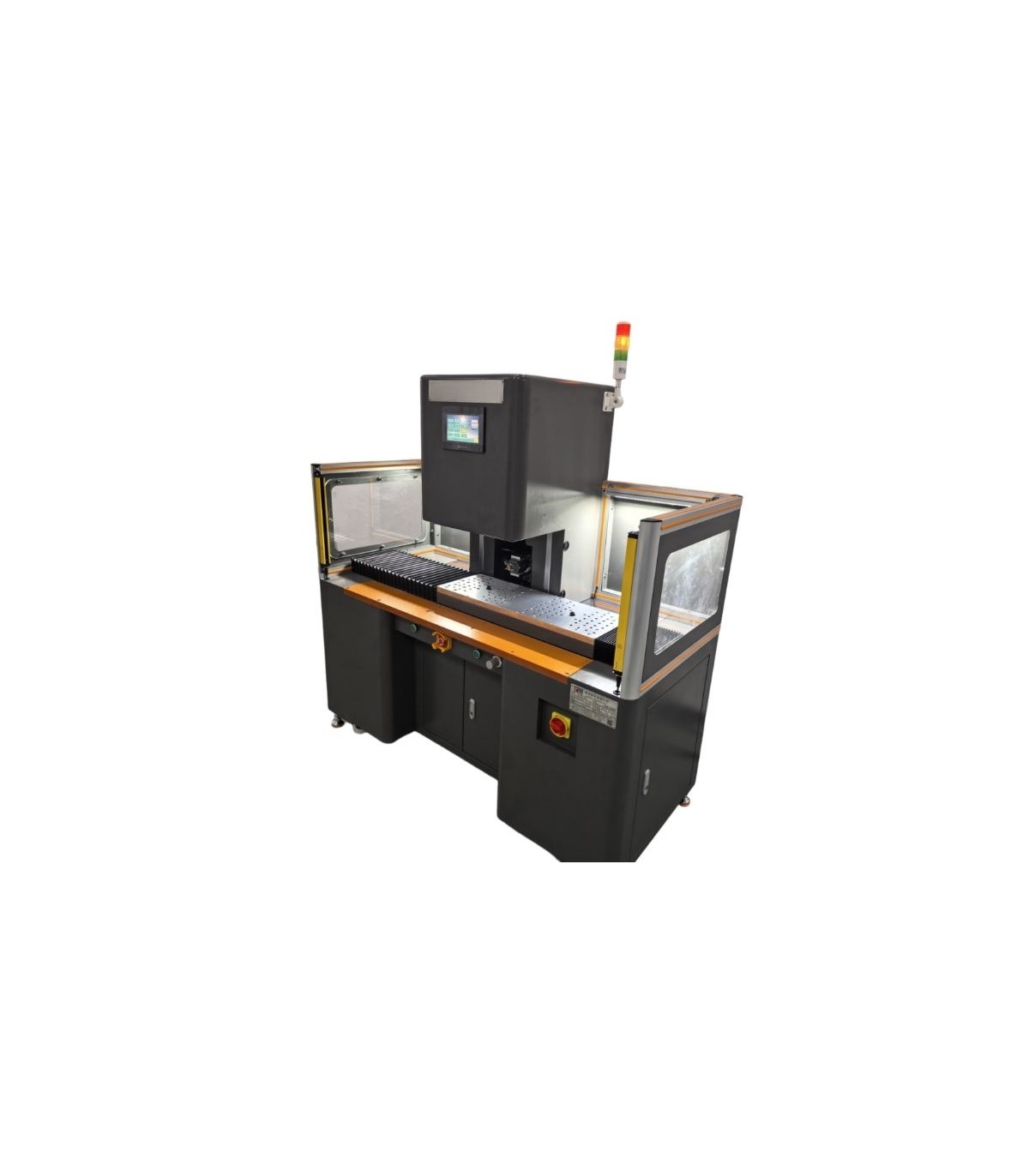

RBLM2500LR – High-performance hot-melt adhesive moulding press

The RBLM2500LR is a hot-melt adhesive moulding press designed for efficient, stable and repeatable production, ideal for low-pressure moulding and encapsulation applications.
The machine integrates a synchronized dual moving-platform system with one upper mould and two lower moulds, reducing downtime and improving production continuity.

Key strengths

• Synchronized dual platform: smoother process and faster mould changeovers.


• Guideless structure (without guides): suitable for complex or large-size components, with fewer constraints on shape and overall size.


• Integrated design with built-in glue tank: space optimization and a cleaner, more organized layout.


• Network / MES integration: ready for network connection and data upload for connected-factory workflows.


• Horizontal injection: more uniform material flow for better part quality.


• 3L or 7L glue tank: greater autonomy and fewer stops for refilling.


• Advanced safety: full-width photoelectric safety curtain with emergency stop in case of anomaly.


• Smart touch interface: real-time control and monitoring of temperature, pressure and injection speed.

Typical applications

Ideal for encapsulation and protection of components and sub-assemblies: electronics, sensors, modules, connectors and cable exit areas (anti-pull and protection against moisture/dust), as well as automotive and industrial components.

Main technical data

• Tank capacity: 3 L or 7 L


• Max melting output: 4.5 kg/hour


• Max operating temperature: 250 °C


• Max closing force: 1800 kg


• Air pressure: 1–6 kg/cm²


• Max viscosity: 20,000 CPS


• Number of hoses: 1 set


• Dimensions (L×W×H): 1580×717×1620 mm


• Weight: 350 kg


• Power: 4500 W


• Power supply: AC 220 V / 20 A, 50/60 Hz, 2Ph
