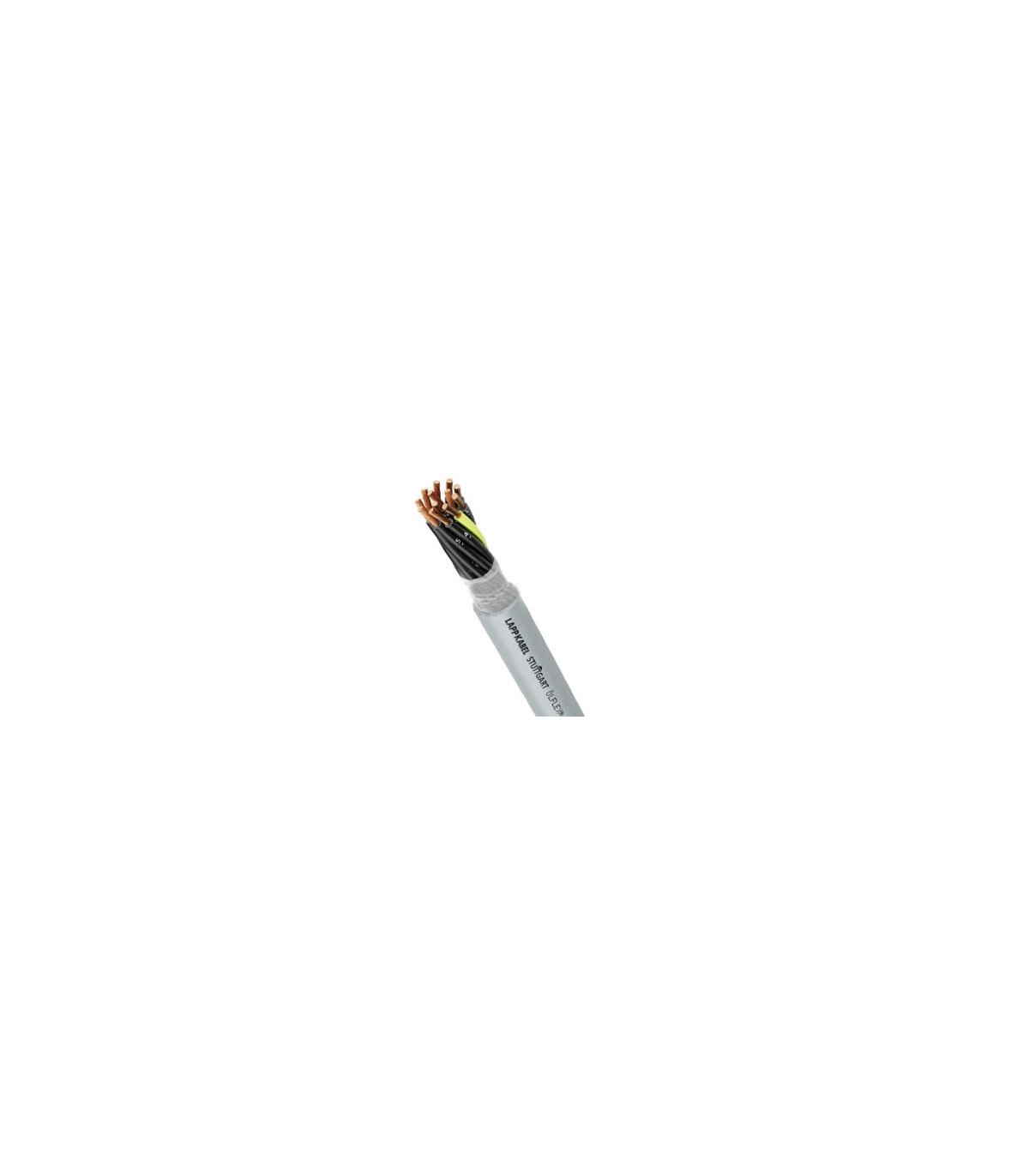

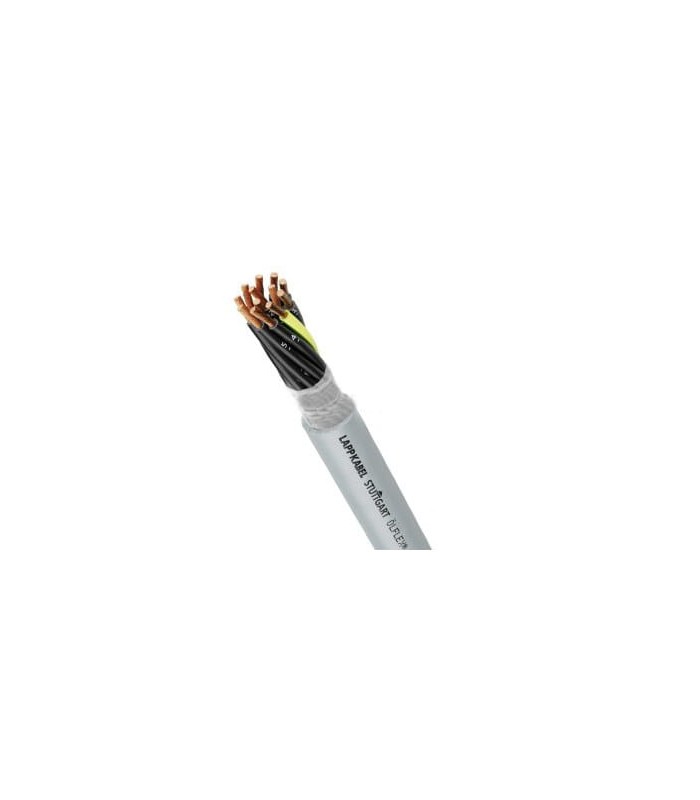

PUR external cable PVC internal cores 2x0.75 grey external sheath
ErreBi code: 27655
Price for meter
Read moreShow lessPrice for meter
€3.80
(tax excl.)
€4.64
(tax incl.)
Condition
New
Reference:
RBCVPURPVC2X0.75G
Brand:
Add to wishlist
Technical Specifications:
Number of conductors: 2 conductors
Conductor cross-section: 0.75 mmq
Outer diameter: 5.70 mm
Conductor: Red copper
Insulation: TPE (thermoplastic elastomer)
Outer sheath: PUR (polyurethane) – flame-resistant and halogen-free
Sheath color: Grey (RAL 7001)
Nominal voltage: 300/500 V
Operating temperature:
Fixed installation: -40 °C to +80 °C
Mobile/flexible use: -30 °C to +80 °C
Minimum bending radius (mobile use): approx. 7.5 times the outer diameter
Oil resistance: Yes
Self-extinguishing according to IEC 60332-1-2
Read moreShow less
Number of conductors: 2 conductors
Conductor cross-section: 0.75 mmq
Outer diameter: 5.70 mm
Conductor: Red copper
Insulation: TPE (thermoplastic elastomer)
Outer sheath: PUR (polyurethane) – flame-resistant and halogen-free
Sheath color: Grey (RAL 7001)
Nominal voltage: 300/500 V
Operating temperature:
Fixed installation: -40 °C to +80 °C
Mobile/flexible use: -30 °C to +80 °C
Minimum bending radius (mobile use): approx. 7.5 times the outer diameter
Oil resistance: Yes
Self-extinguishing according to IEC 60332-1-2
RBCVPURPVC2X0.75G
Data sheet
- Product type
- PVC-Kabel
- Color
- Grey
- external diameter
- 5.70 mm
- Voltage
- 300/500V
- Operating temperature min.
- -30°C
- Operating temperature max.
- +80°C
- Insulation material
- Thermoplastic elastomers (TPE)
- Conductor (Material)
- Red copper
- Cable section mmq
- 0.75 mmq
- Shielding
- No
- Flame resistance
- IEC 60332-1-2
- Type of employment
- Internal Wiring
- Number of conductors
- 2
- External sheath material
- PVC
- Minimum order quantity
- 1
- Unit Type
- metre
