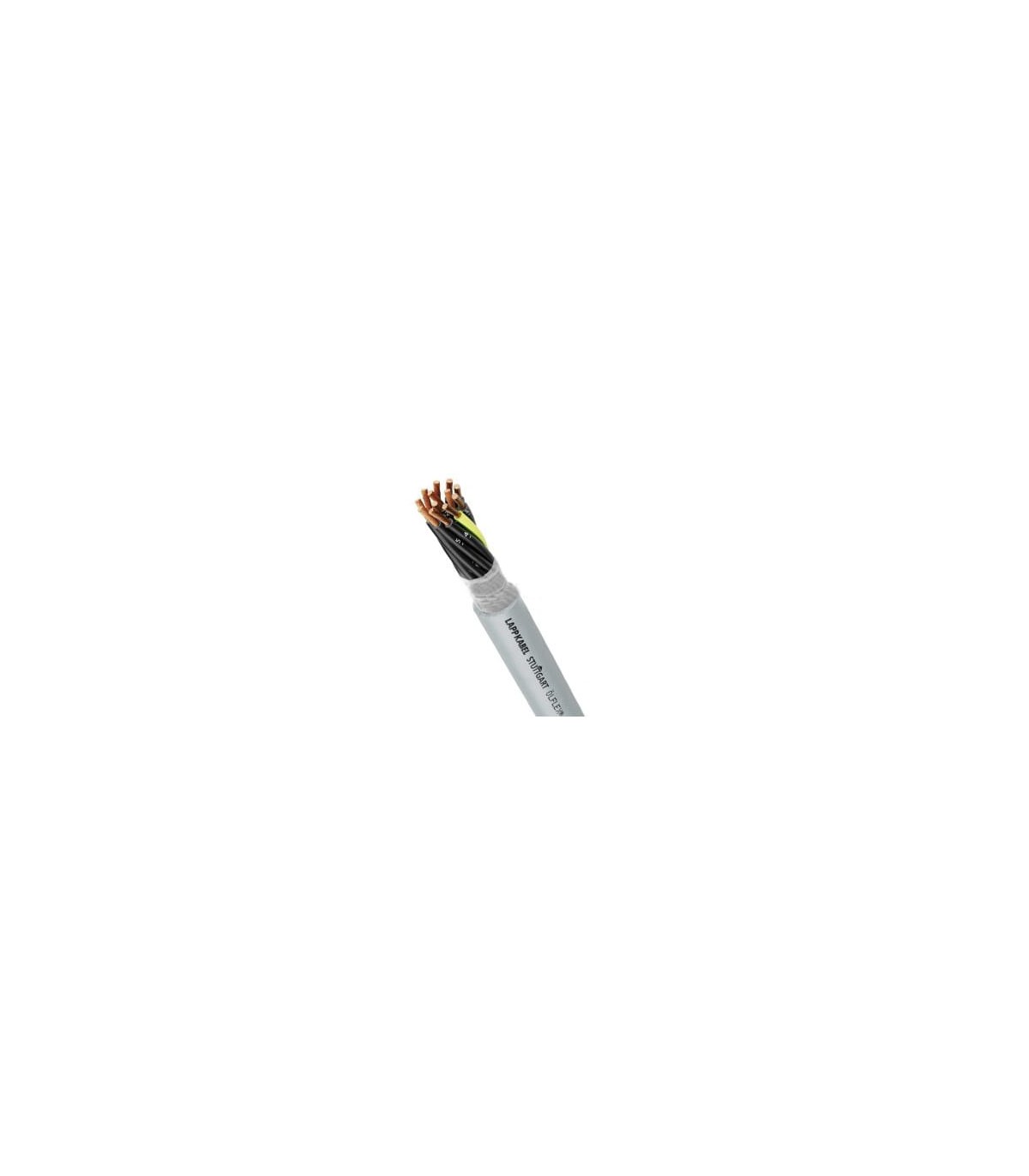

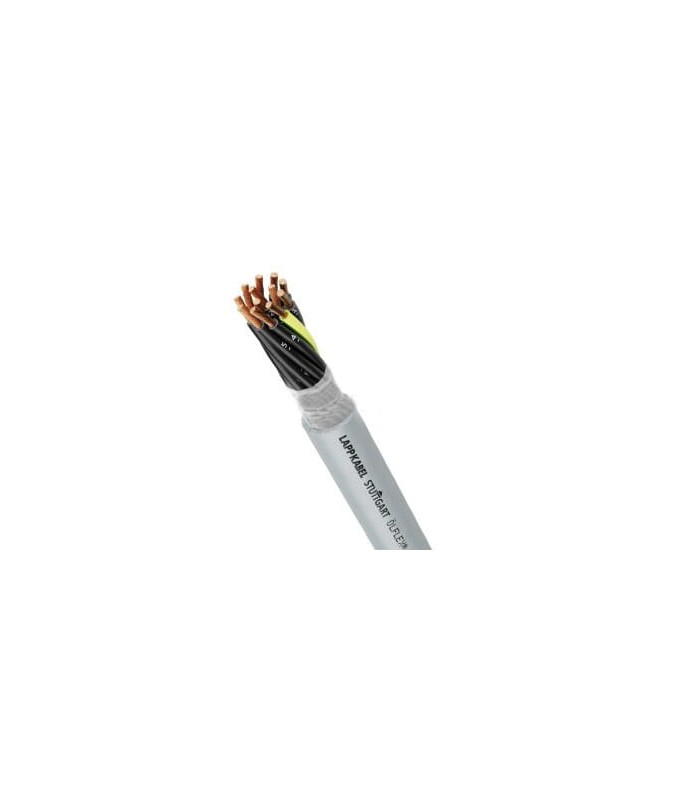

PUR-Außenkabel PVC-Innenadern 2x0,75 grauer Außenmantel
ErreBi code: 27655
Verkauf ein meter
Read moreShow lessVerkauf ein meter
3,80 €
(tax excl.)
4,64 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCVPURPVC2X0.75G
Marke:
Zur Wunschliste hinzufügen
Technical Specifications:
Number of conductors: 2 conductors
Conductor cross-section: 0.75 mmq
Outer diameter: 5.70 mm
Conductor: Red copper
Insulation: TPE (thermoplastic elastomer)
Outer sheath: PUR (polyurethane) – flame-resistant and halogen-free
Sheath color: Grey (RAL 7001)
Nominal voltage: 300/500 V
Operating temperature:
Fixed installation: -40 °C to +80 °C
Mobile/flexible use: -30 °C to +80 °C
Minimum bending radius (mobile use): approx. 7.5 times the outer diameter
Oil resistance: Yes
Self-extinguishing according to IEC 60332-1-2
Read moreShow less
Number of conductors: 2 conductors
Conductor cross-section: 0.75 mmq
Outer diameter: 5.70 mm
Conductor: Red copper
Insulation: TPE (thermoplastic elastomer)
Outer sheath: PUR (polyurethane) – flame-resistant and halogen-free
Sheath color: Grey (RAL 7001)
Nominal voltage: 300/500 V
Operating temperature:
Fixed installation: -40 °C to +80 °C
Mobile/flexible use: -30 °C to +80 °C
Minimum bending radius (mobile use): approx. 7.5 times the outer diameter
Oil resistance: Yes
Self-extinguishing according to IEC 60332-1-2
RBCVPURPVC2X0.75G
Technische Daten
- Produktart
- PVC-Kabel
- Farbe
- Grau
- Außendurchmesser
- 5.70 mm
- Spannung
- 300/500V
- Betriebstemperatur min.
- -30°C
- Betriebstemperatur max.
- +80°C
- Dämm Material
- Thermoplastische elastomere (TPE)
- Leiter (Material)
- Rotes Kupfer
- Kabelquerschnitt mmq
- 0.75 mmq
- Abschirmen
- Nein
- Flammwidrigkeit
- IEC 60332-1-2
- Art der Anstellung
- Interne Verdrahtung
- Anzahl der Leiter
- 2
- Außenmantelmaterial
- PVC
- Mindestbestellmenge
- 1
- Maßeinheit
- meter
