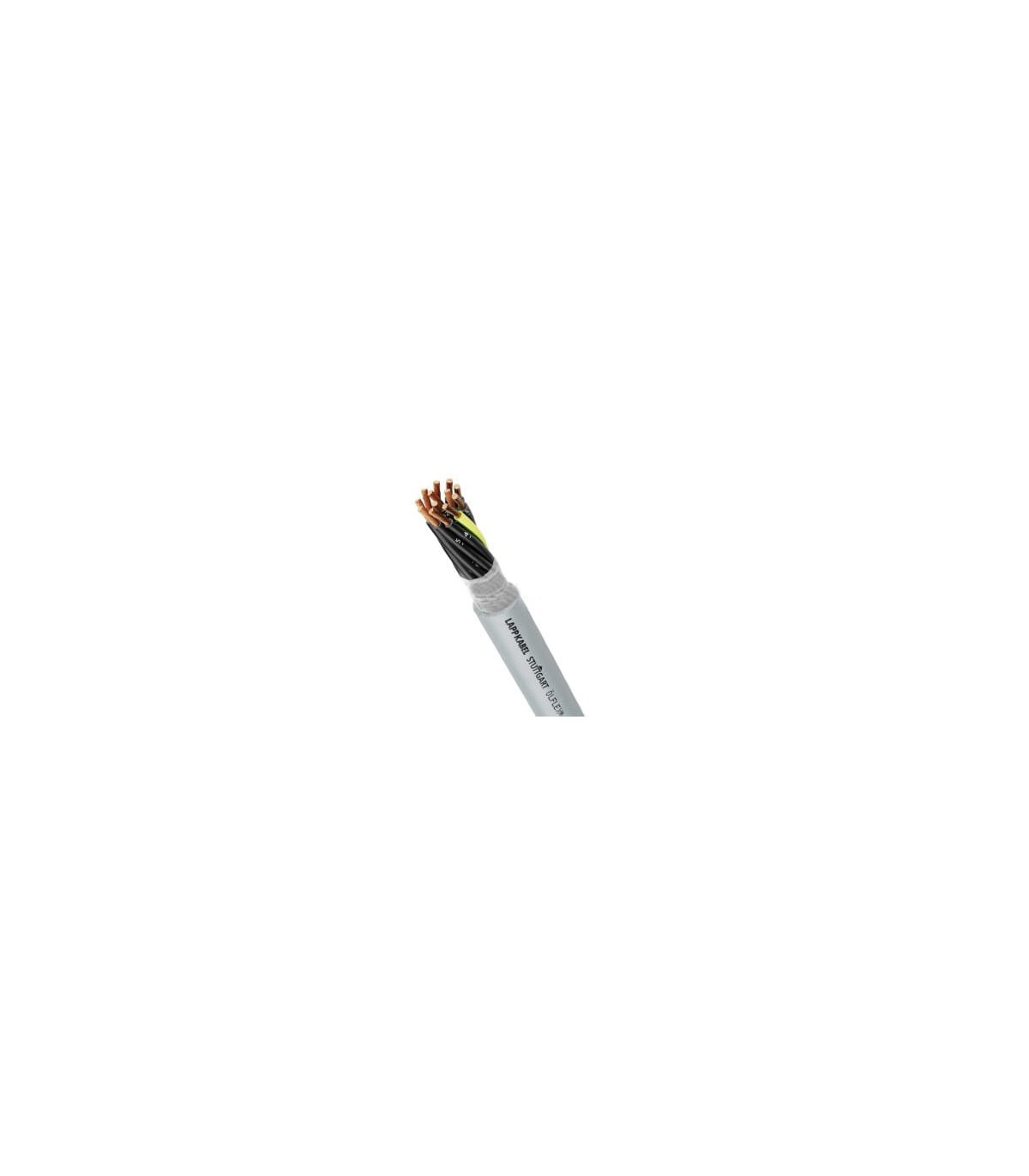

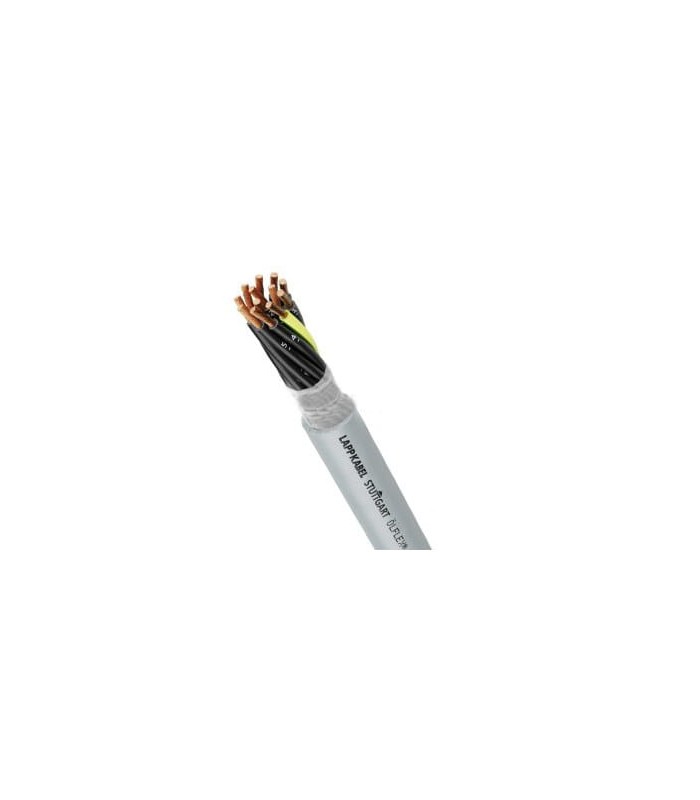

Cable exterior PUR núcleos interiores PVC 2x0,75 cubierta exterior gris
Código ErreBi: 27655
Venta por metros
Lee masShow lessVenta por metros
3,80 €
(tax excl.)
4,64 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBCVPURPVC2X0.75G
Marca:
A lista de deseos
Technical Specifications:
Number of conductors: 2 conductors
Conductor cross-section: 0.75 mmq
Outer diameter: 5.70 mm
Conductor: Red copper
Insulation: TPE (thermoplastic elastomer)
Outer sheath: PUR (polyurethane) – flame-resistant and halogen-free
Sheath color: Grey (RAL 7001)
Nominal voltage: 300/500 V
Operating temperature:
Fixed installation: -40 °C to +80 °C
Mobile/flexible use: -30 °C to +80 °C
Minimum bending radius (mobile use): approx. 7.5 times the outer diameter
Oil resistance: Yes
Self-extinguishing according to IEC 60332-1-2
Lee masShow less
Number of conductors: 2 conductors
Conductor cross-section: 0.75 mmq
Outer diameter: 5.70 mm
Conductor: Red copper
Insulation: TPE (thermoplastic elastomer)
Outer sheath: PUR (polyurethane) – flame-resistant and halogen-free
Sheath color: Grey (RAL 7001)
Nominal voltage: 300/500 V
Operating temperature:
Fixed installation: -40 °C to +80 °C
Mobile/flexible use: -30 °C to +80 °C
Minimum bending radius (mobile use): approx. 7.5 times the outer diameter
Oil resistance: Yes
Self-extinguishing according to IEC 60332-1-2
RBCVPURPVC2X0.75G
Ficha técnica
- Tipo de producto
- Cable de PVC
- Color
- Gris
- Diámetro externo
- 5.70 mm
- Voltaje
- 300/500V
- Temperatura de funcionamiento min.
- -30°C
- Temperatura de funcionamiento maxn.
- +80°C
- Material de aislamiento
- Elastómero termoplástico (TPE)
- Conductor (Material)
- Cobre rojo
- Cable de sección mmq
- 0.75 mmq
- Blindaje
- No
- Resistencia a las llamas
- IEC 60332-1-2
- Tipo de empleo
- Cableado Interno
- Numero de conductores
- 2
- Material de la vaina externa
- PVC
- Minima pedido
- 1
- Tipo de unidad
- metro
