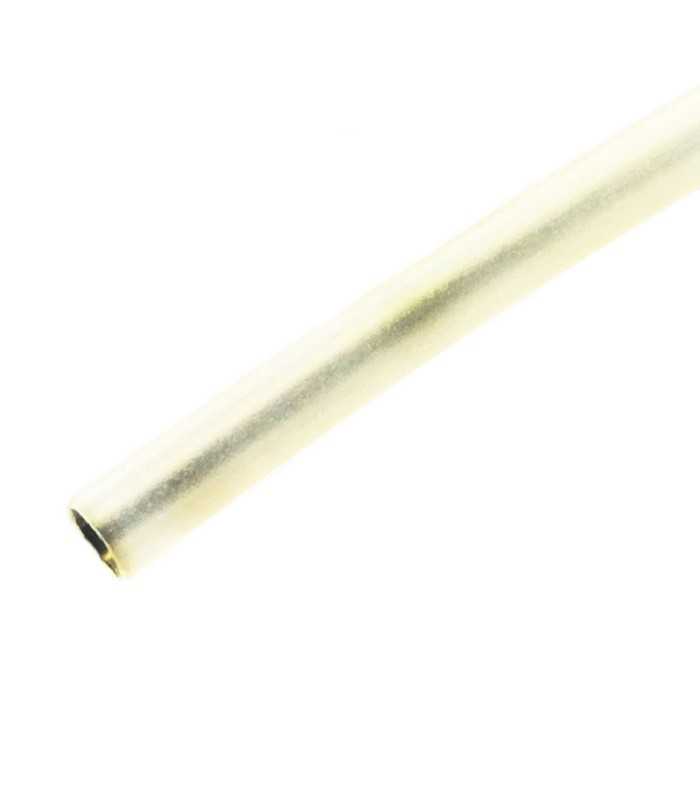

Heat shrink tubing with Glue diameter 9,5mm 3:1 Trasparent
Errebi code: 47556
Diameter: 9,5mm
Working temperature (°C): -55° / +110°
Price for meter
Read moreShow lessDiameter: 9,5mm
Working temperature (°C): -55° / +110°
Price for meter
€4.77
(tax excl.)
€5.82
(tax incl.)
Condition
New
Reference:
RBGNTRC9.5TR
Brand:
Add to wishlist
Sheath polyolefin with adhesive inside for insulation resistant to moisture, flexible, with a high ratio of shrinkage. The sticker inside alloy with plastic, rubber, neoprene, steel and polyethylene.
Continuous operating temperature from -55°C to + 110°C.
Shrink Temperature: 95°C.
SELF EXTINGUISHING
Tensile strength: 15 MPa
Shrinkage: 3:1
Elongation at break: 400%
Longitudinal: 18% max
Specific weight: 1,25g / cm³
Elongation at break after heat aging (168 hours at 150°C): 320%
Tensile strength after thermal aging (168 hours at 150°C): 15 MPa
Elongation after Heat Shock (4 hours at 200°C) to IEC 811-1-2 360%
Tensile strength after thermal shock (4 hours at 200°C): 15 MPa
Low Temperature Flexibility: It does not break at -55°C
Flammability: Self-extinguishing UL 224
Dielectric Strength: 22 kV/mm
Volume Resistivity: 10 Ohm/cm
Weathering: Non-corrosive
Water absorption: 0.15%
Read moreShow less
Continuous operating temperature from -55°C to + 110°C.
Shrink Temperature: 95°C.
SELF EXTINGUISHING
Tensile strength: 15 MPa
Shrinkage: 3:1
Elongation at break: 400%
Longitudinal: 18% max
Specific weight: 1,25g / cm³
Elongation at break after heat aging (168 hours at 150°C): 320%
Tensile strength after thermal aging (168 hours at 150°C): 15 MPa
Elongation after Heat Shock (4 hours at 200°C) to IEC 811-1-2 360%
Tensile strength after thermal shock (4 hours at 200°C): 15 MPa
Low Temperature Flexibility: It does not break at -55°C
Flammability: Self-extinguishing UL 224
Dielectric Strength: 22 kV/mm
Volume Resistivity: 10 Ohm/cm
Weathering: Non-corrosive
Water absorption: 0.15%
RBGNTRC9.5TR
Data sheet
- Product type
- Heat Shrink Tubing
- Material
- Polyolefin
- Color
- Transparent
- Operating temperature
- -55°C to +110°C
- Internal diameter
- 9.5 mm
- Shrink Ratio
- 3 to 1
- Minimum shrink temperature
- 95°C
- Glue
- Yes
- Low temperature flexibility
- Up to -55° C
- Dielectric rigidity
- 22 kv/mm
- Thickness
- 1.4 mm
- Expandable
- No
- Minimum order quantity
- 1
- Unit Type
- metre
