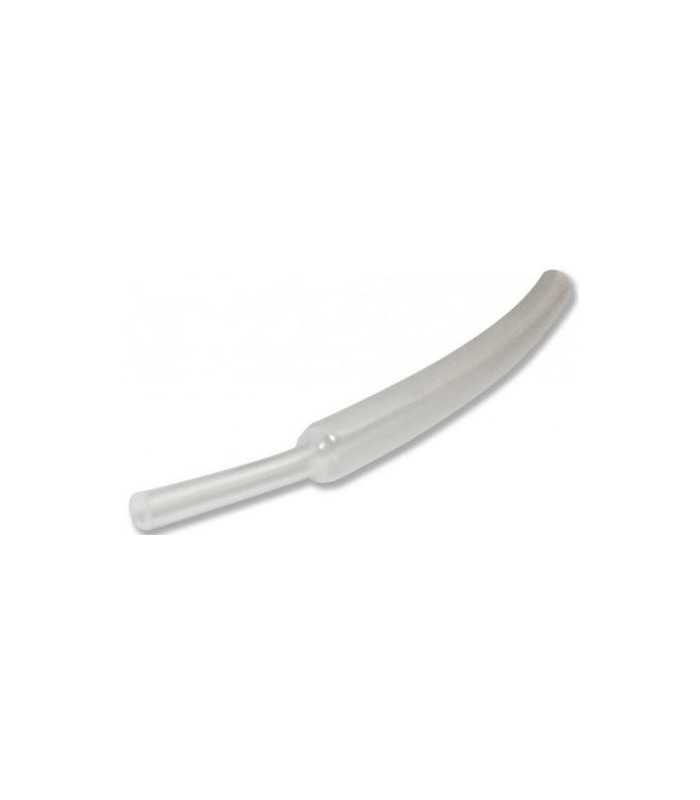

Heat Shrink Tubing in kynar without Glue diameter 9,5mm 2:1 Transparent
Errebi code: 45559
Diameter: 9,5mm
Working temperature (°C): -55° / +175°
Price for meter
Read moreShow lessDiameter: 9,5mm
Working temperature (°C): -55° / +175°
Price for meter
€13.87
(tax excl.)
€16.92
(tax incl.)
Condition
New
Reference:
RBGNTR9.5KT
Brand:
Add to wishlist
KYNAR PVDF Heat Shrinkable Liner with 2:1 shrinkage ratio. Sheath with excellent resistance to chemicals and solvents, highly flame retardant, excellent mechanical and abrasion resistance, high thermostability, Operating temp from -55°C to + 175°C.
Features:
- cross-linked PVDF
- Shrinkage factor: 2:1
- Excellent mechanical and abrasion resistance
- Highly flame retardant
- High thermostability
- Excellent resistance to chemical agents and solvents
- Semi-rigid
- Single wall
Certifications:
- Compliant with: RoHS
- Compliant with: SAE-AMS-DTL-23053/18
Application:
- Operating temperature: from -55°C to +175°C
- Minimum shrinkage temperature: +175°C
- Longitudinal variation: 0 ± 10% maximum
Read moreShow less
Features:
- cross-linked PVDF
- Shrinkage factor: 2:1
- Excellent mechanical and abrasion resistance
- Highly flame retardant
- High thermostability
- Excellent resistance to chemical agents and solvents
- Semi-rigid
- Single wall
Certifications:
- Compliant with: RoHS
- Compliant with: SAE-AMS-DTL-23053/18
Application:
- Operating temperature: from -55°C to +175°C
- Minimum shrinkage temperature: +175°C
- Longitudinal variation: 0 ± 10% maximum
RBGNTR9.5KT
Data sheet
- Product type
- Heat Shrink Tubing
- Material
- Kynar (cross-linked PVDF)
- Color
- Transparent
- Operating temperature
- -55°C to +175°C
- Internal diameter
- 9.5 mm
- Shrink Ratio
- 2 to 1
- Minimum shrink temperature
- 175°C
- Glue
- No
- Low temperature flexibility
- Up to -55° C
- Dielectric rigidity
- 30 kv/mm
- Thickness
- 0.28 mm
- Expandable
- No
- Minimum order quantity
- 1
- Unit Type
- metre
