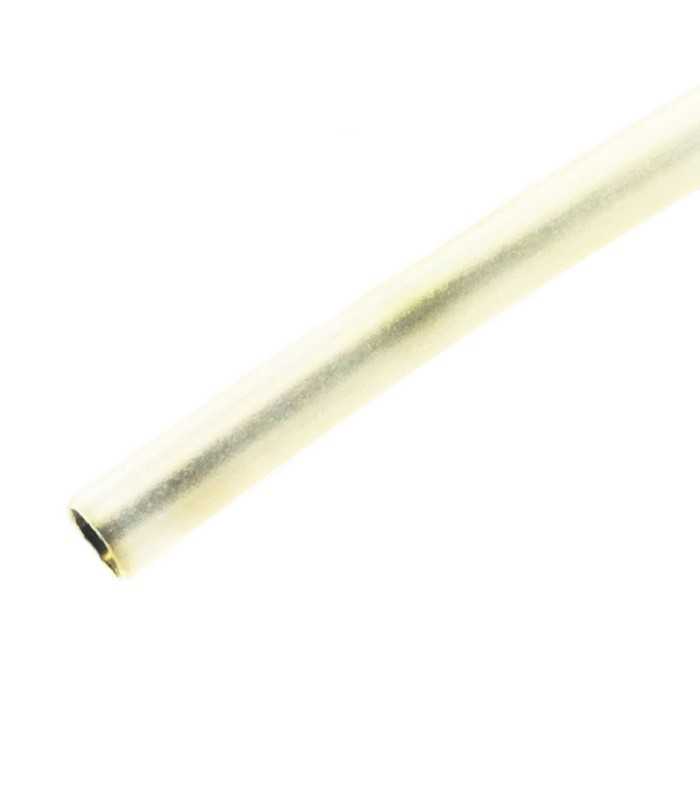

Schrumpfschläuche mit Leim Durchmesser 9,5mm 3:1 Trasparent

Sheath polyolefin with adhesive inside for insulation resistant to moisture, flexible, with a high ratio of shrinkage. The sticker inside alloy with plastic, rubber, neoprene, steel and polyethylene.

Continuous operating temperature from -55°C to + 110°C.
Shrink Temperature: 95°C.
SELF EXTINGUISHING

Tensile strength: 15 MPa
Shrinkage: 3:1
Elongation at break: 400%
Longitudinal: 18% max
Specific weight: 1,25g / cm³
Elongation at break after heat aging (168 hours at 150°C): 320%
Tensile strength after thermal aging (168 hours at 150°C): 15 MPa
Elongation after Heat Shock (4 hours at 200°C) to IEC 811-1-2 360%
Tensile strength after thermal shock (4 hours at 200°C): 15 MPa
Low Temperature Flexibility: It does not break at -55°C
Flammability: Self-extinguishing UL 224
Dielectric Strength: 22 kV/mm
Volume Resistivity: 10 Ohm/cm
Weathering: Non-corrosive
Water absorption: 0.15%
