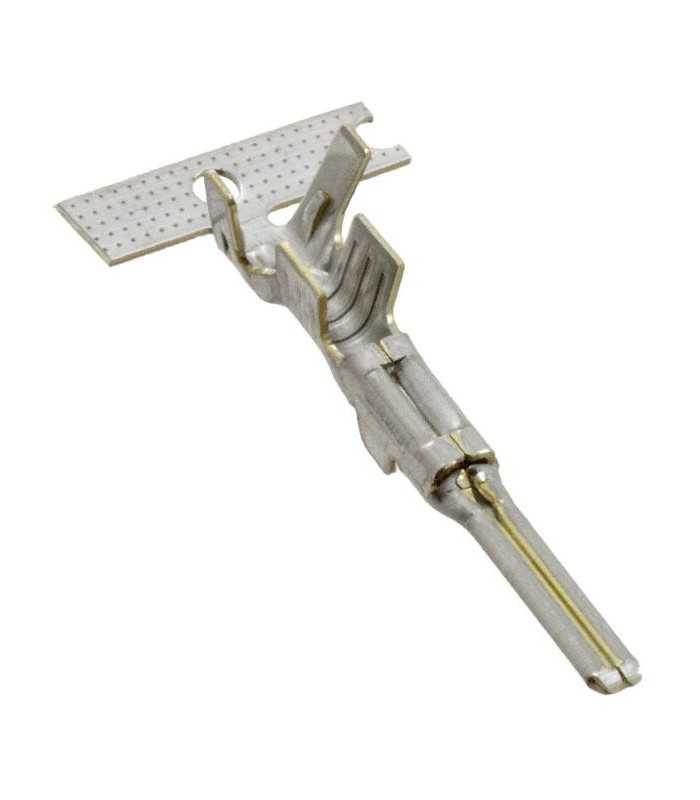

MultiLock Series 070 Terminal male section 1,5-2,5mmq

ErreBi code: 11371
Producer code: 175030-1
Producer: TE/Connectivity
Read moreShow less
€0.18 (tax excl.)
€0.22

Discounts for quantities

Quantity Unit price You Save
8 €0.22 €0.00
16 €0.20 €0.35
32 €0.18 €1.40
56 €0.16 €3.07
104 €0.14 €8.02
256 €0.12 €25.27
504 €0.11 €55.34
1008 €0.10 €121.86
Last items in stock 8 Items
The minimum purchase order quantity for the product is 8.
Condition
New
Reference:
RBTNML070MS1.5ST
Add to wishlist
Description
Product Line: MULTILOCK™
Product Type: Contact
Wire/Cable Type: Discrete Wire
Product Series: 070
Sealed: No
Contact - Rated Current (A): 14
Operating Voltage Reference: DC
Operating Voltage (VDC): 24
Termination Method to Wire/Cable: Crimp
Wire Type: Stranded
Wire Range (mm [AWG]): 1.50-2.50² [15.5-13.5]
Contact Type: Plug
Contact Base Material: Phosphor Bronze
Contact Plating, Mating Area, Material: Pre-Tin
GET 0.64 Connector System: No
Lead Free Solder Processes: Not relevant for lead free process
Operating Temperature (°C [°F]): -30 - +105 [-22 - +221]
Applies To: Wire/Cable
Accepts Wire Insulation Diameter, Range (mm [in]): 2.50 - 3.00 [0.098 - 0.118]
For Use With: Receptable Housing
Application Use: Wire-to-Wire
Read moreShow less
Product Details
RBTNML070MS1.5ST

Data sheet

Minimum order quantity
8
Unit Type
pieces
