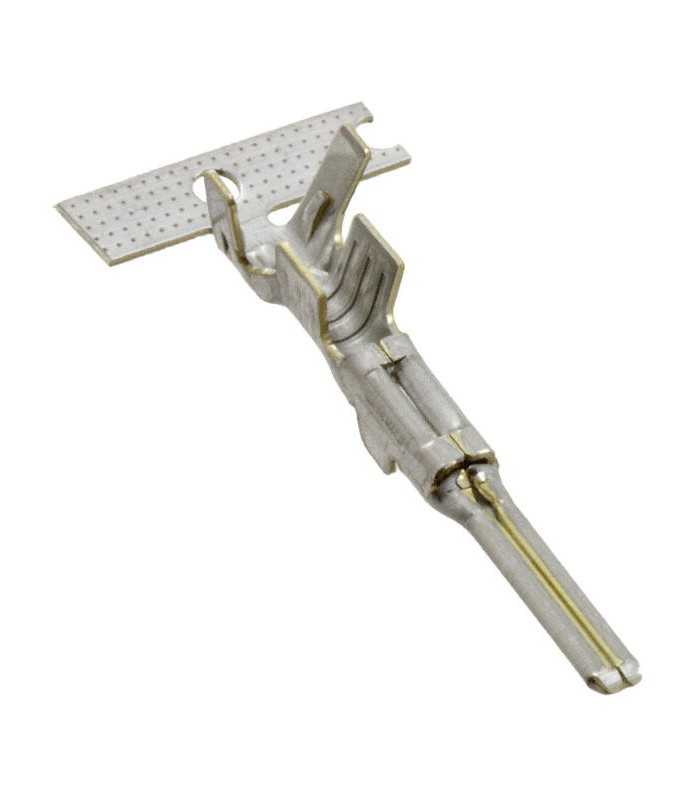

Terminal MultiLock Series 070 macho sección 1,5-2,5mmq

Product Line: MULTILOCK™
Product Type: Contact
Wire/Cable Type: Discrete Wire
Product Series: 070
Sealed: No
Contact - Rated Current (A): 14
Operating Voltage Reference: DC
Operating Voltage (VDC): 24
Termination Method to Wire/Cable: Crimp
Wire Type: Stranded
Wire Range (mm [AWG]): 1.50-2.50² [15.5-13.5]
Contact Type: Plug
Contact Base Material: Phosphor Bronze
Contact Plating, Mating Area, Material: Pre-Tin
GET 0.64 Connector System: No
Lead Free Solder Processes: Not relevant for lead free process
Operating Temperature (°C [°F]): -30 - +105 [-22 - +221]
Applies To: Wire/Cable
Accepts Wire Insulation Diameter, Range (mm [in]): 2.50 - 3.00 [0.098 - 0.118]
For Use With: Receptable Housing
Application Use: Wire-to-Wire
