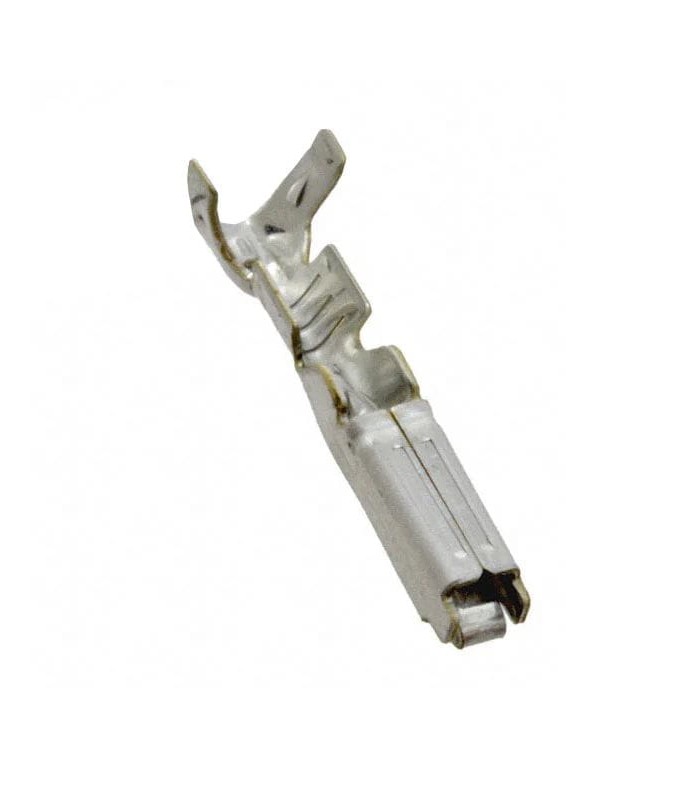

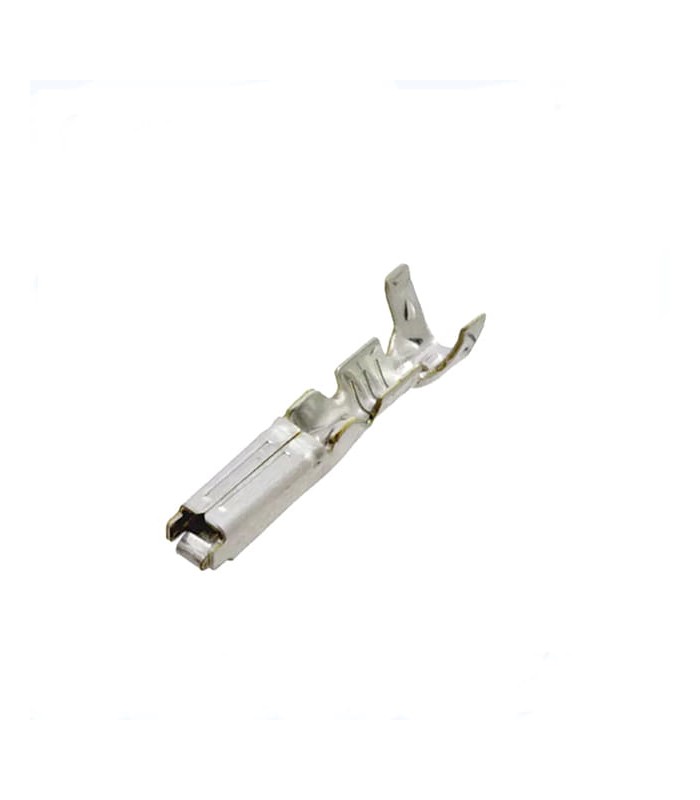

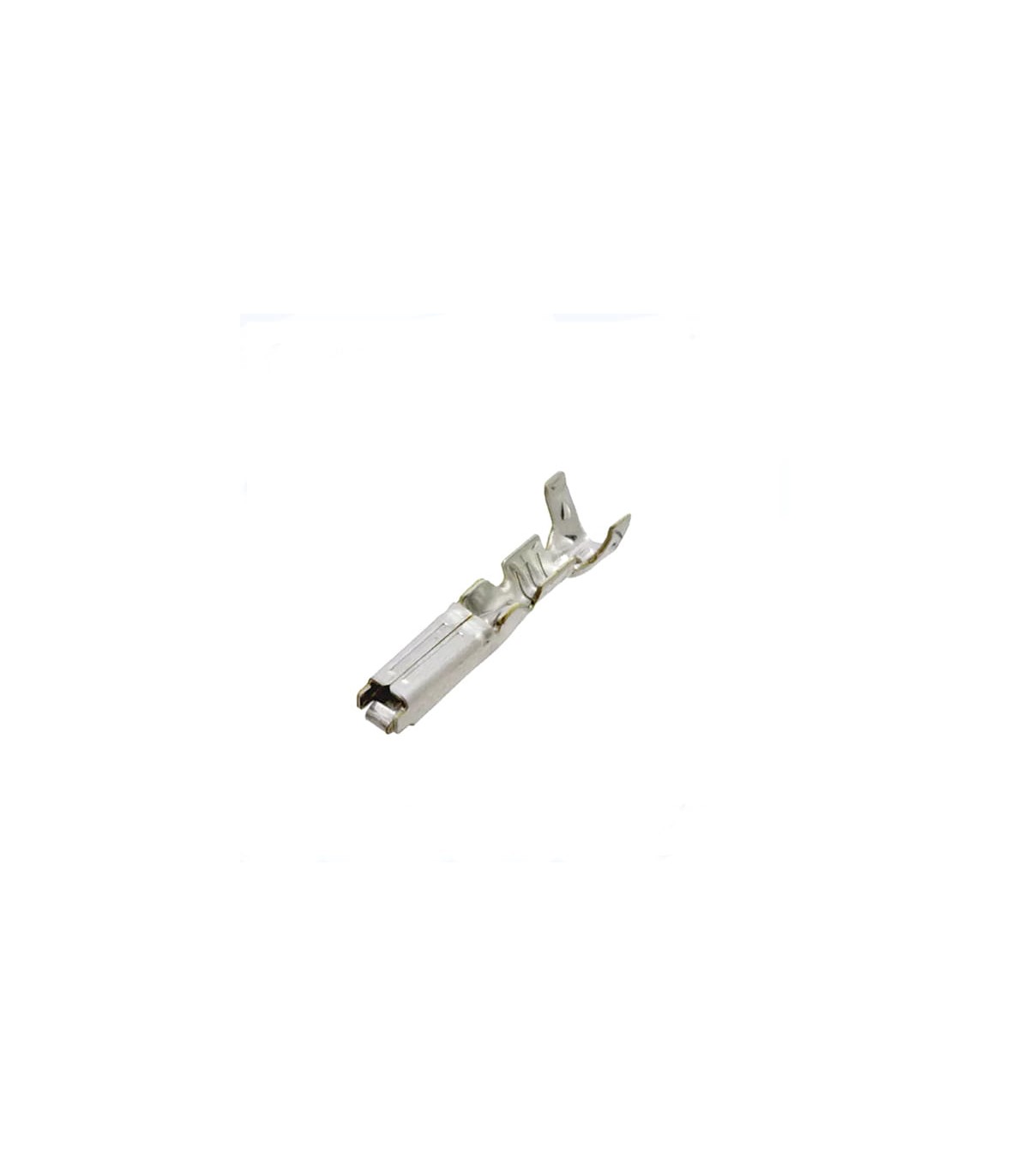

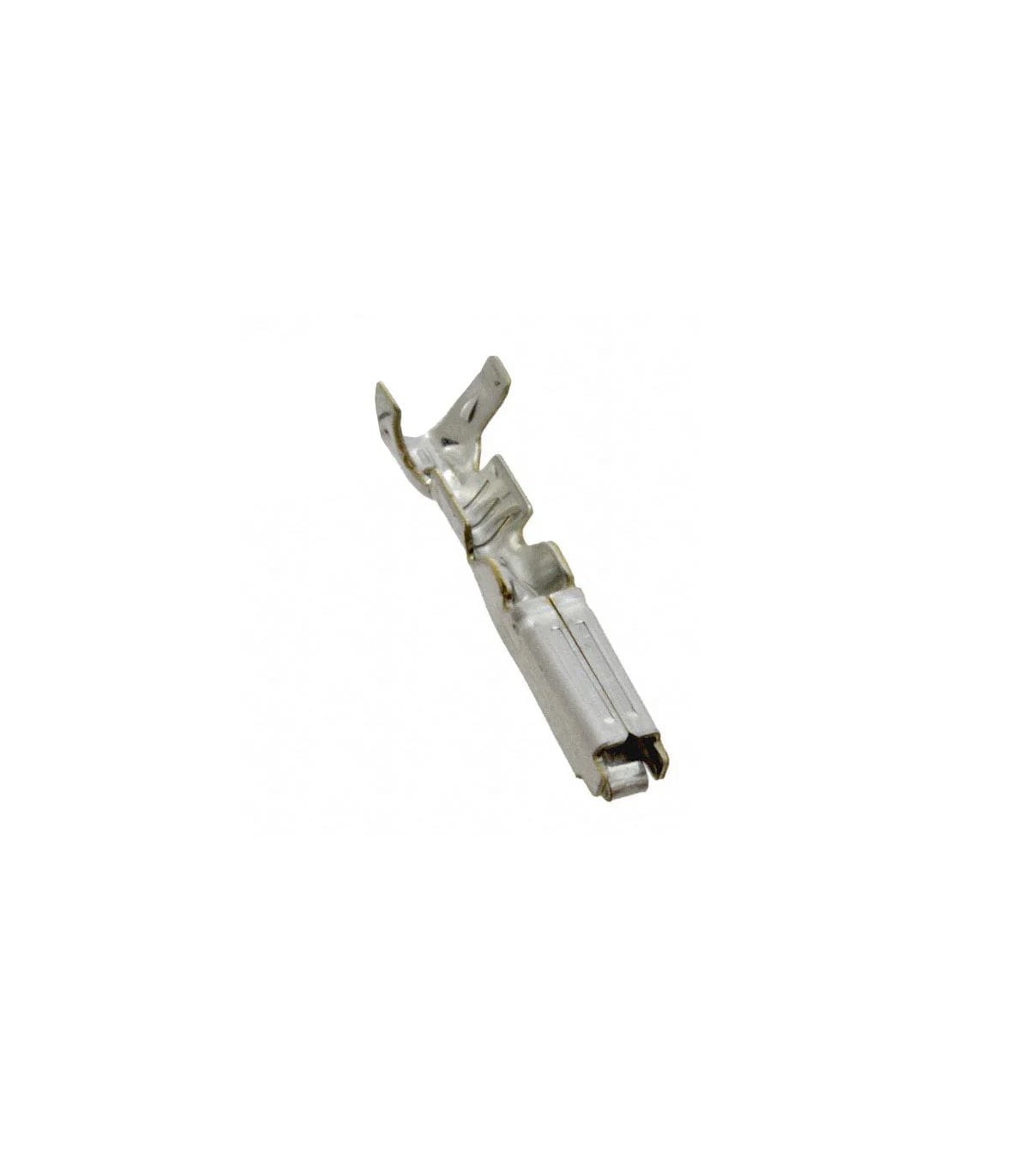

MultiLock Series 070 Terminal female section 0,20-0,35 mmq

ErreBi code: 67390
Producer code: 173630-1
Producer: TE/Connectivity
Read moreShow less
€0.11 (tax excl.)
€0.13 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
40 €0.11 €1.07
60 €0.10 €2.01
100 €0.09 €4.70
260 €0.07 €15.70
500 €0.07 €33.55
1000 €0.06 €73.81
Available in stock 2000 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBTNML070MF0.2T
Add to wishlist
Description


The terminal is a component of the MULTILOCK .070 series designed for signal connections in automotive applications.
It is a female contact, crimpable, intended to be inserted into compatible housings to ensure a reliable connection in demanding environments.



Function and Benefits



  • This contact is designed to provide a stable and durable electrical connection even in environments subject to vibrations, temperature variations, and mechanical stress.

  • The tin plating enhances conductivity and protects against corrosion, ensuring long-term performance.

  • As a crimpable contact, it allows a secure and reliable installation once the wire is fixed.



Typical Applications



Commonly used where a reliable and modular signal connection is required in automotive systems or electrical applications. Examples include:



  • Wiring systems for automotive modules and sensors.

  • Connections within control units, dashboards, or interfaces.

  • Installations requiring a modular connection system that is easy to replace.

  • Automotive environments exposed to vibrations and varying conditions.



Technical Features



  • Gender: female

  • Wire section (AWG): 24 - 22 AWG

  • Wire section (mm²): 0.20 – 0.35 mm²

  • Pitch: 1.8 mm

  • Contact plating: tin

  • Rated current: 4 A

  • Operating temperature: -30 / +105 °C

  • Orientation: straight (180°)


Read moreShow less
Product Details
RBTNML070MF0.2T

Data sheet

Product type
Terminal
Serie
Multilock 070
Amperage
4A
Operating temperature
-30°C to +105°C
Contact material
Tin-plated Brass
Mounting
On cable
Wire range
24 - 22 AWG
Kind
Female
Orientation
180°
Contact plating
Tin
Minimum order quantity
20
Unit Type
pieces
