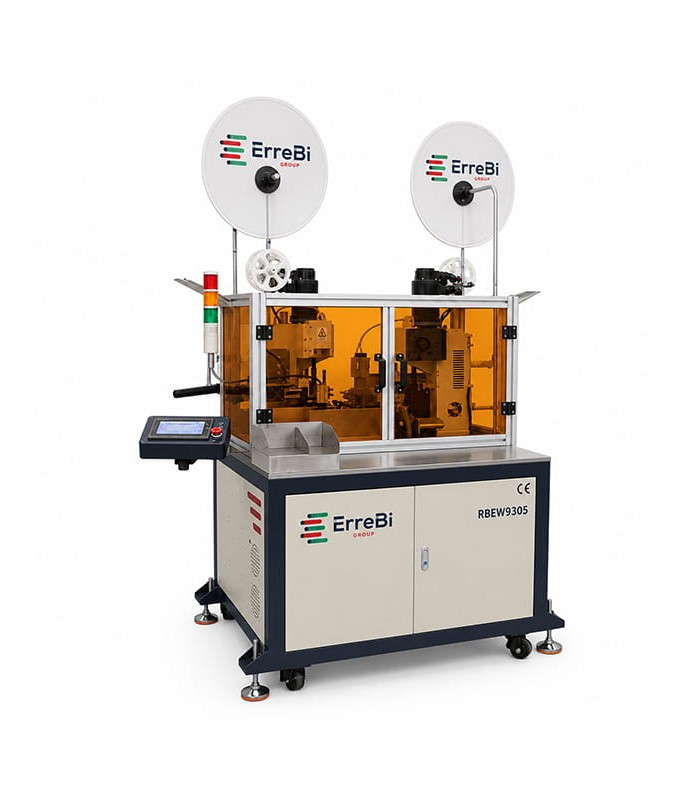

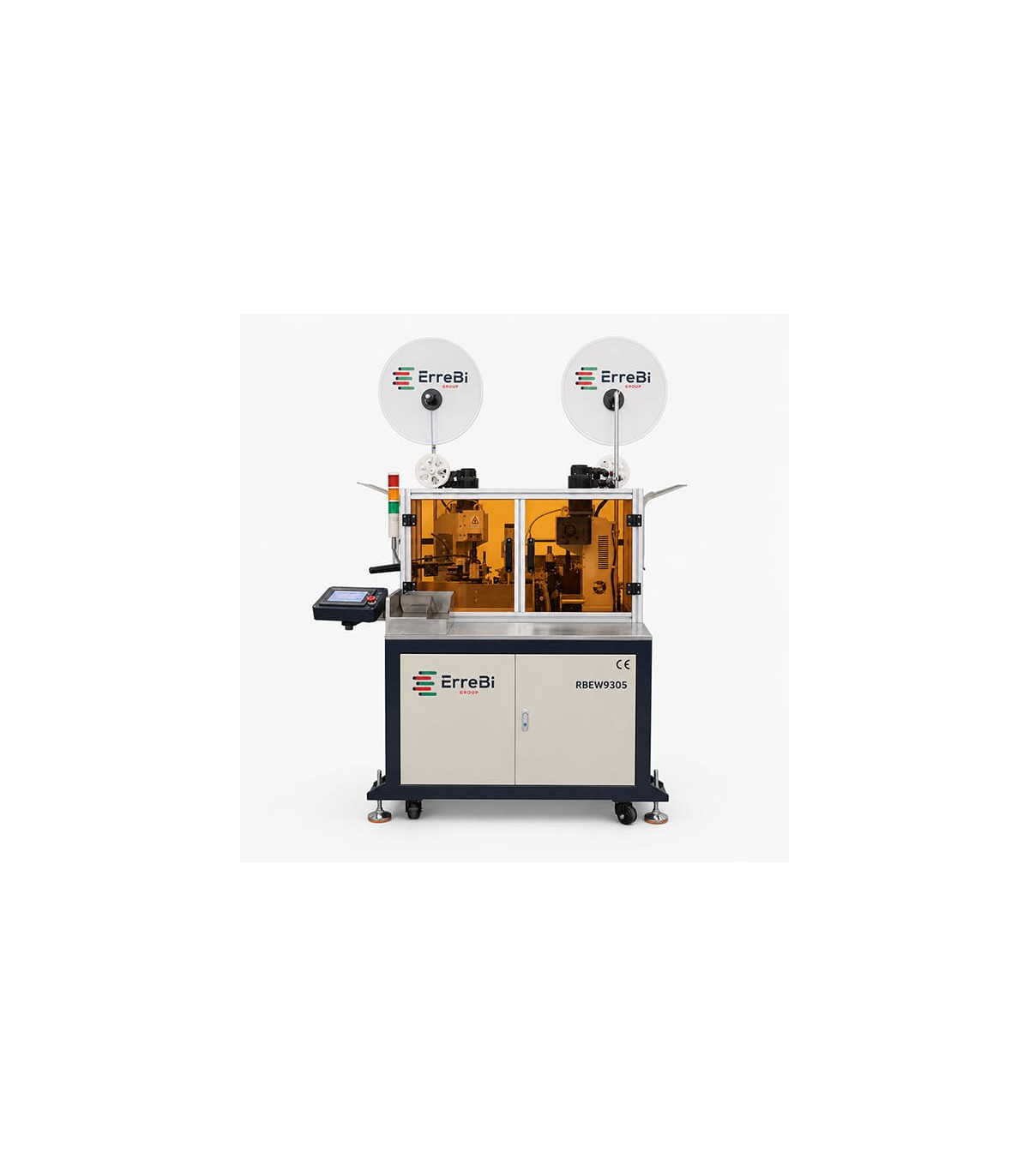

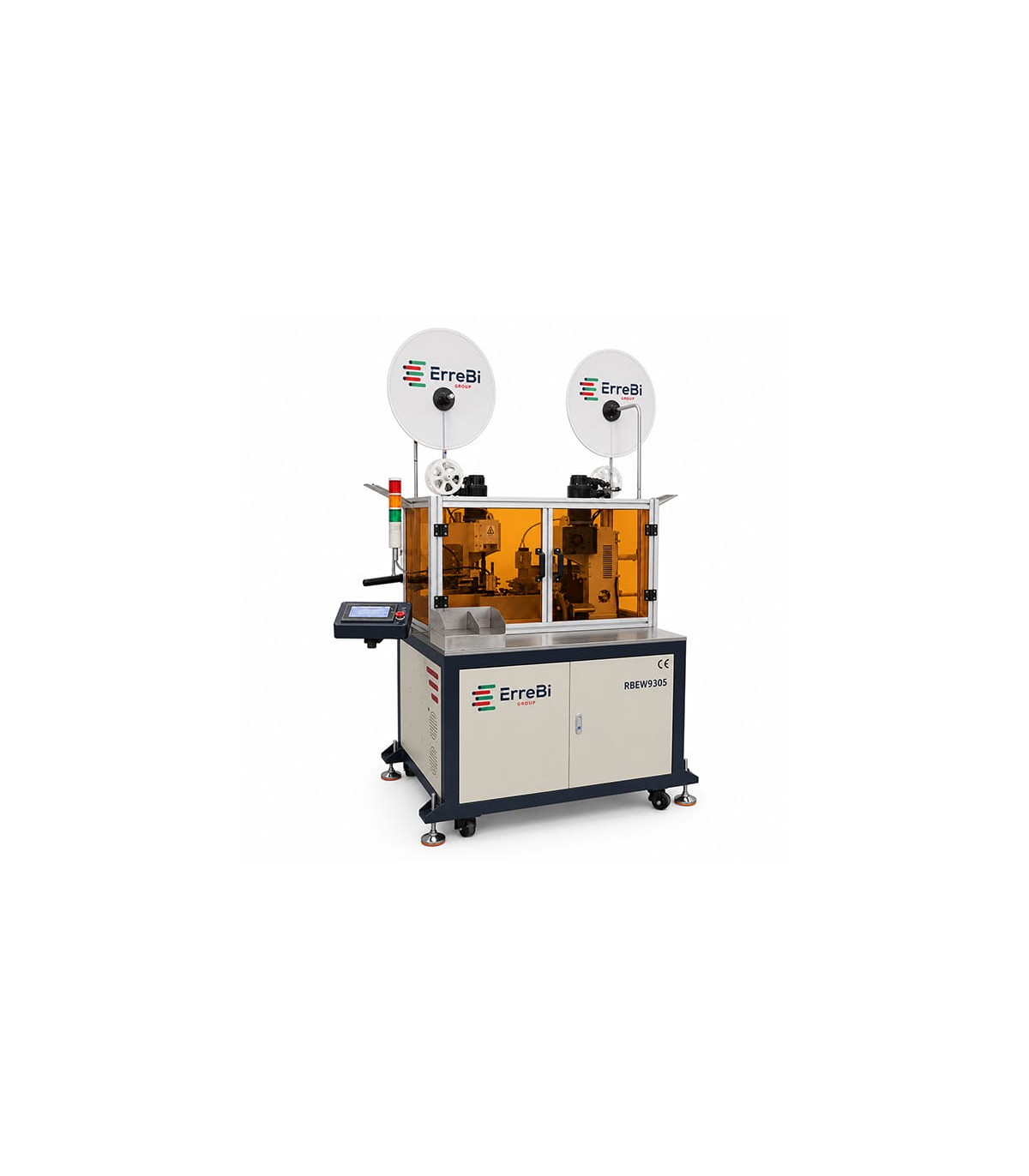

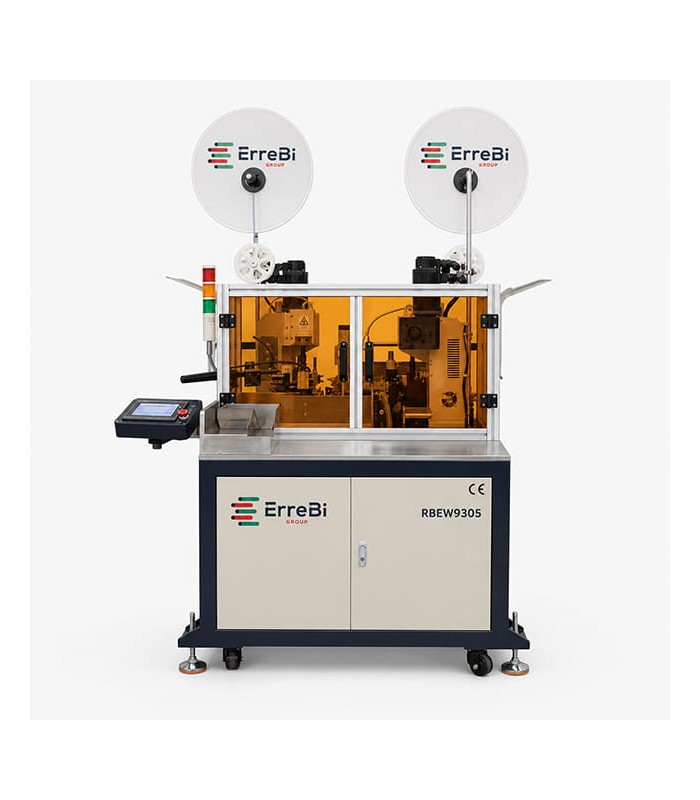

Automatic servo motor double-head machine for crimping pre-insulated terminals

The RBEW9305 is a professional automatic machine designed for cutting, stripping and crimping pre-insulated terminals on both ends of the cable.
It is suitable for wiring harness production where precision, process stability, reduced manual working time and production continuity are required.
The machine automatically performs cable cutting to length, end stripping and double crimping, making it suitable for series production of electrical and electronic wiring harnesses.
The servo motor system allows precise and repeatable movements, helping to maintain constant quality even during continuous processing.
The intuitive control interface makes the machine simple and practical to use, facilitating the setting of working parameters such as cutting length, stripping length and production cycle management.
The robust structure guarantees reliability and durability over time, while the integrated safety systems, such as emergency buttons and guards, help the operator work more safely.
Thanks to the working range from 0.3 to 6 mm², the stripping length from 1 to 15 mm and the production capacity up to 1000-2000 pieces/hour, the machine is suitable for various industrial applications and for processing different types of cables.

OPERATING PRINCIPLE

- The cable is automatically fed into the machine
- The machine cuts the cable to the set length
- The ends are stripped according to the configured parameters
- The terminals are automatically crimped on both ends of the cable
- The servo system ensures precise and repeatable movements during the processing cycle
- The detection systems check for possible anomalies such as cable absence, terminal presence and sheath detection
- The processed cable is managed in an orderly way to facilitate series production

MAIN ADVANTAGES

- Cutting, stripping and double crimping in a single automatic cycle
- Crimping on both ends of the cable
- Servo system for greater precision and repeatability
- Working range from 0.3 to 6 mm²
- Adjustable stripping length from 1 to 15 mm
- Adjustable cutting length from 50 to 9999 mm
- Production capacity up to 1000-2000 pieces/hour
- Terminal detection available
- Integrated sheath detection
- Cable absence detection available
- Robust structure for professional and industrial use
- Intuitive interface for easier parameter management
- Reduces manual processing times
- Suitable for series production and industrial wiring harnesses
- Possibility to integrate CCD visual inspection and CFM monitoring as options

MAIN APPLICATIONS

- Production of electrical wiring harnesses
- Wiring harness production
- Automotive wiring harnesses
- Electronic wiring harnesses
- Electrical and electronic equipment
- Household appliances and industrial systems
- Series production of crimped cables
- Assembly of terminals on both ends of the cable
- Automatic production lines
- Medium and high-productivity industrial applications
- Processing where precision, repeatability and process control are required
