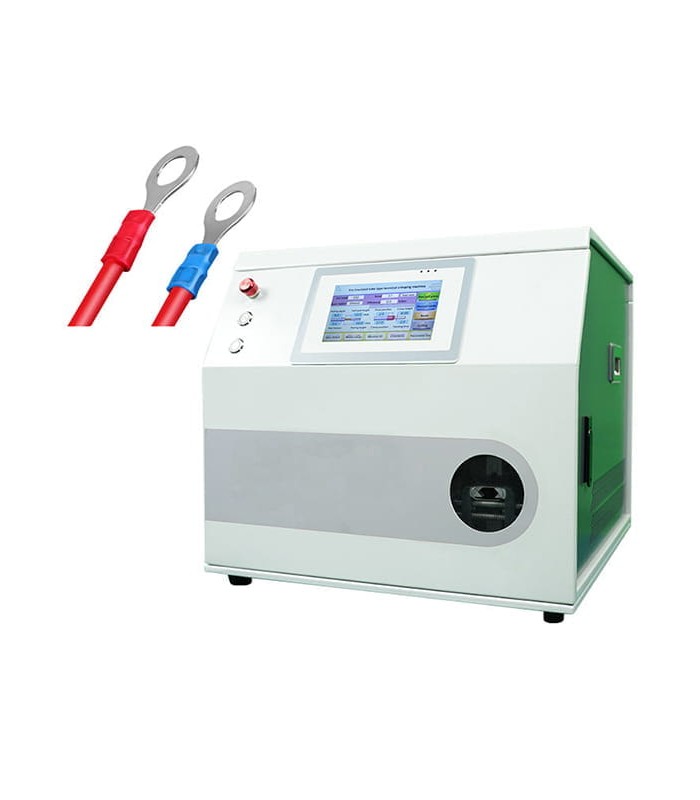

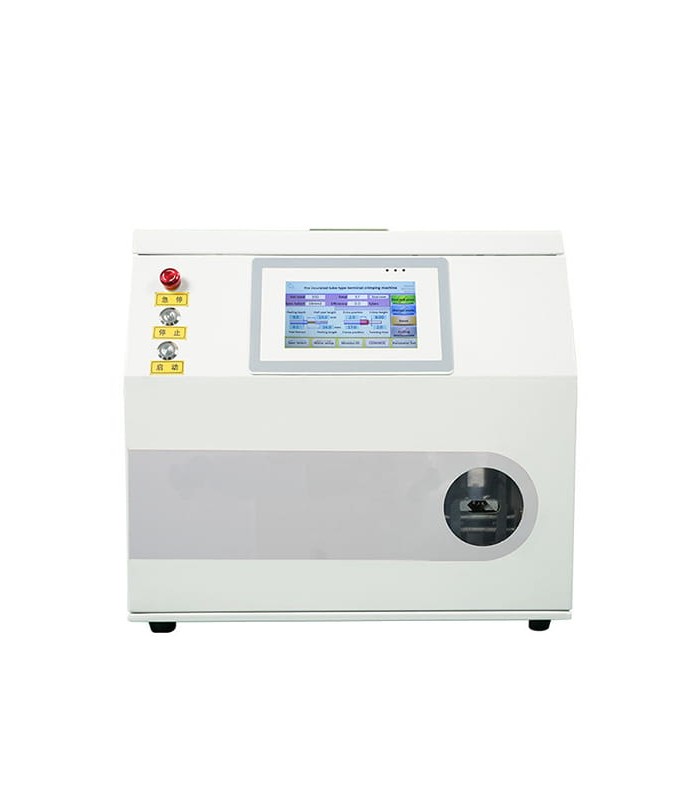

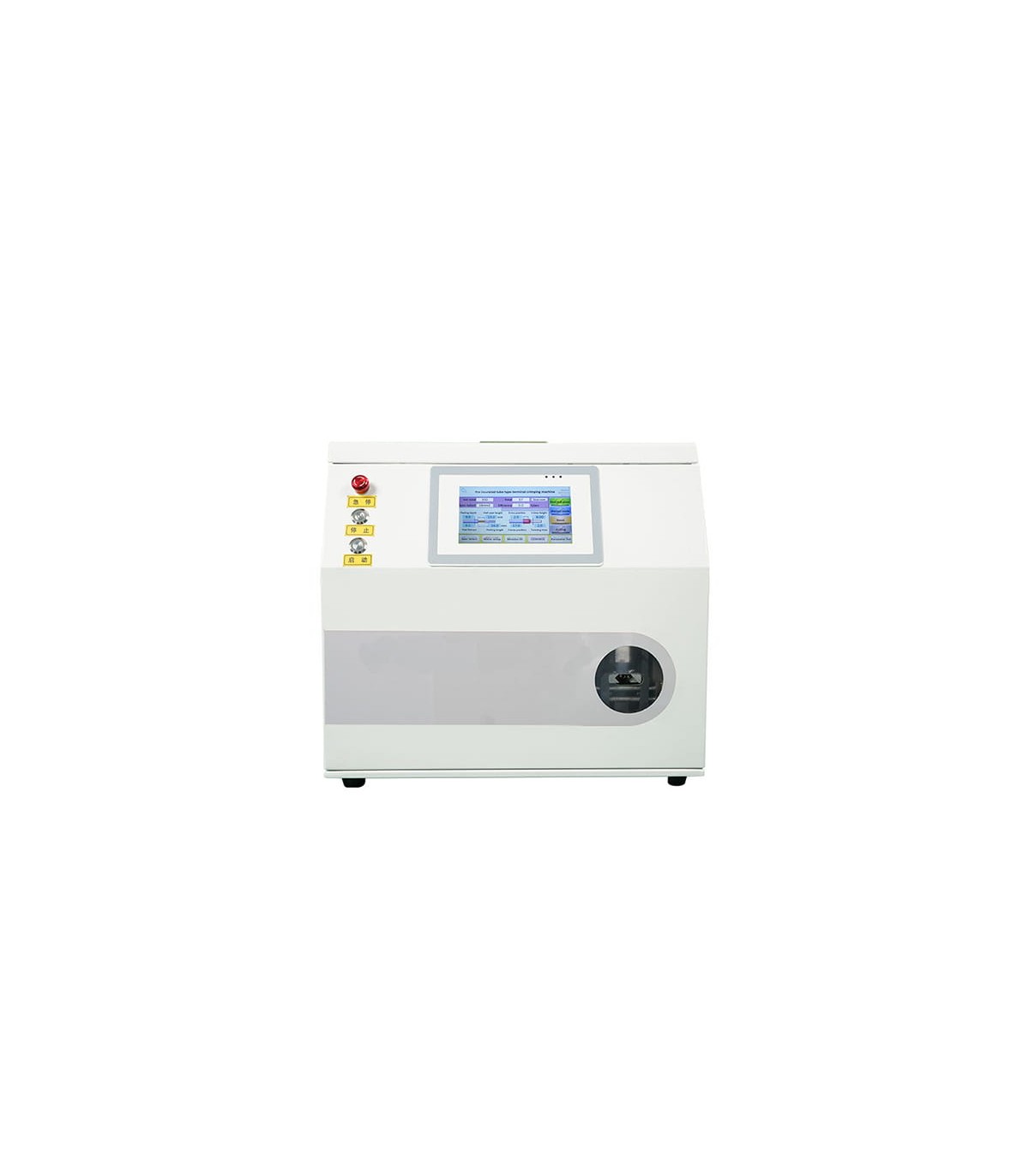

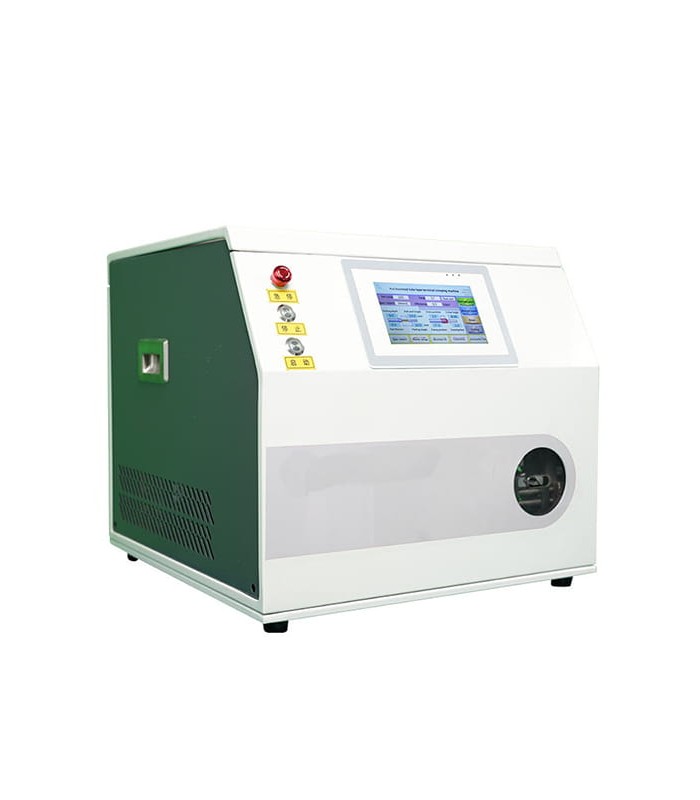

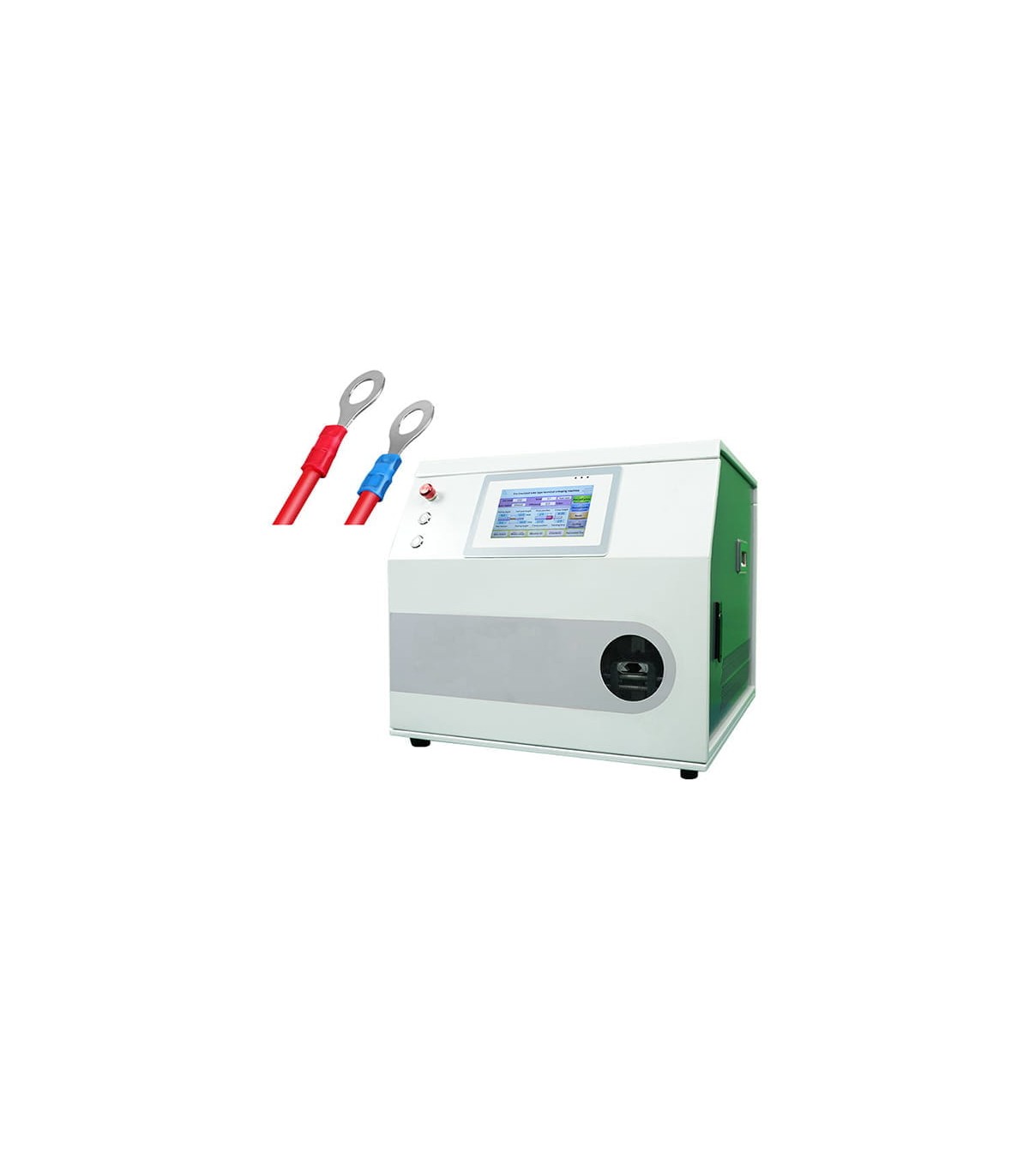

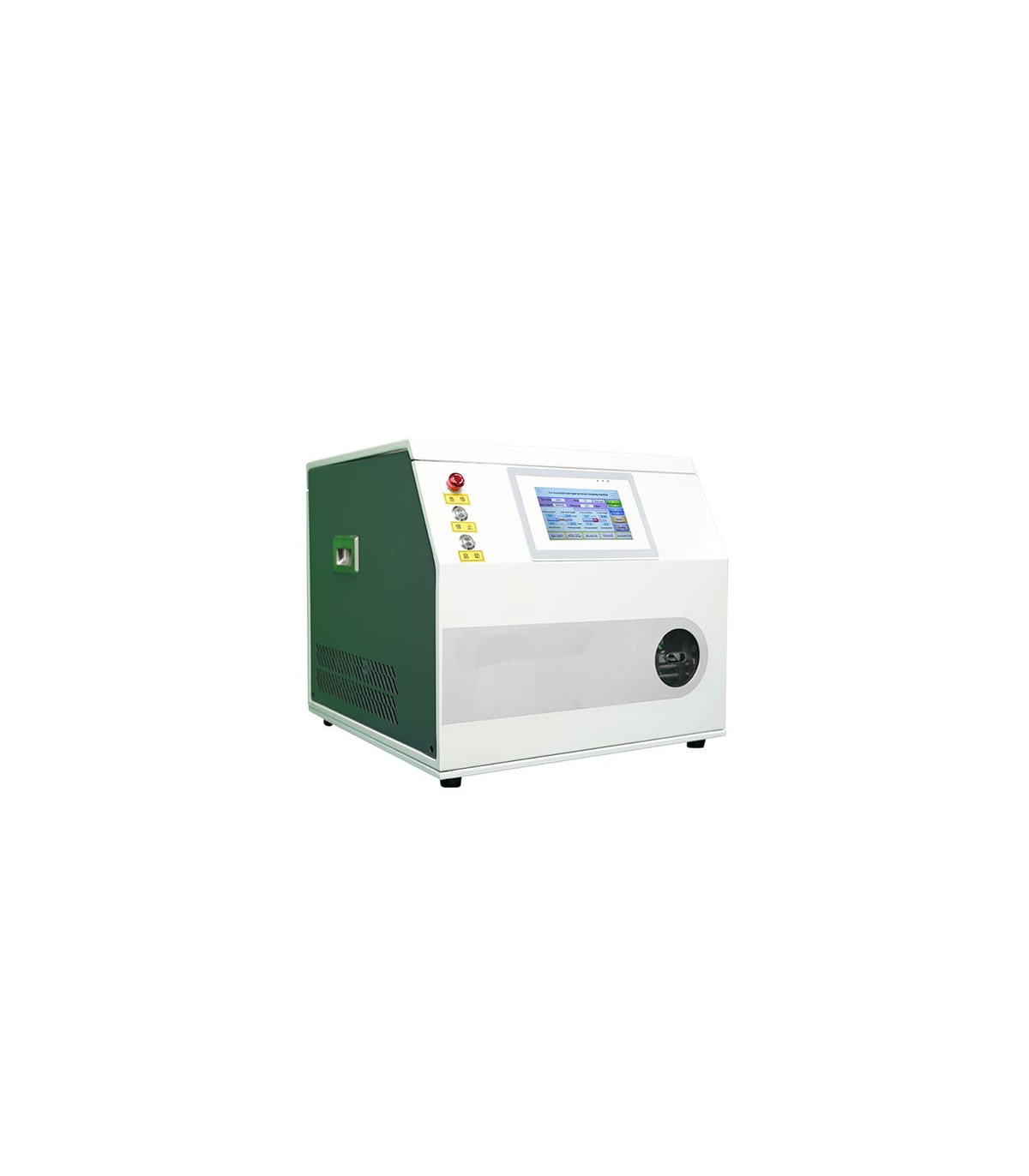

Automatic crimping machine for terminals and ring terminals

Automatic machine for pre-insulated terminals and cable lugs

This machine is designed for the automated crimping of pre-insulated terminals and cable lugs.

The main objective is fast, precise and repeatable production, minimizing manual intervention and increasing overall process efficiency.

The automatic feeding system ensures accurate positioning during crimping, guaranteeing consistently reliable connections.

The working cycle is sequential and controlled:

1) The cable is fed and cut to the specified length.

2) Precise stripping without damaging the conductor.

3) Automatic positioning of the cable termination.

4) Crimping with constant force for a stable mechanical and electrical connection.

5) The control system allows easy adjustment of processing parameters, making the machine suitable for different cable cross-sections and connection types.

MAIN ADVANTAGES

- Fully automated cutting, stripping and crimping process

- High precision and repeatability

- Reduced production times

- Higher quality and reliability of electrical connections

- Reduced risk of manual errors

- Ideal for mass production

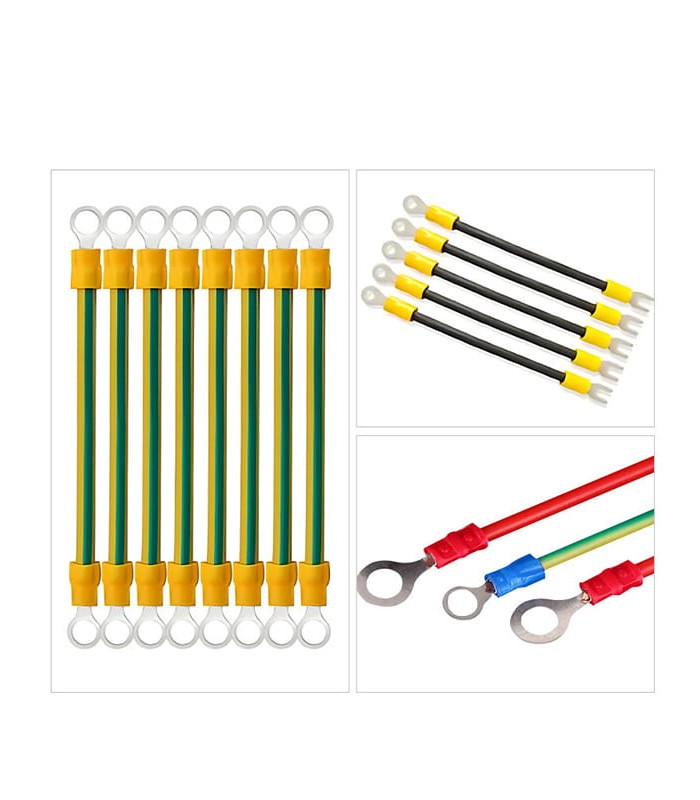

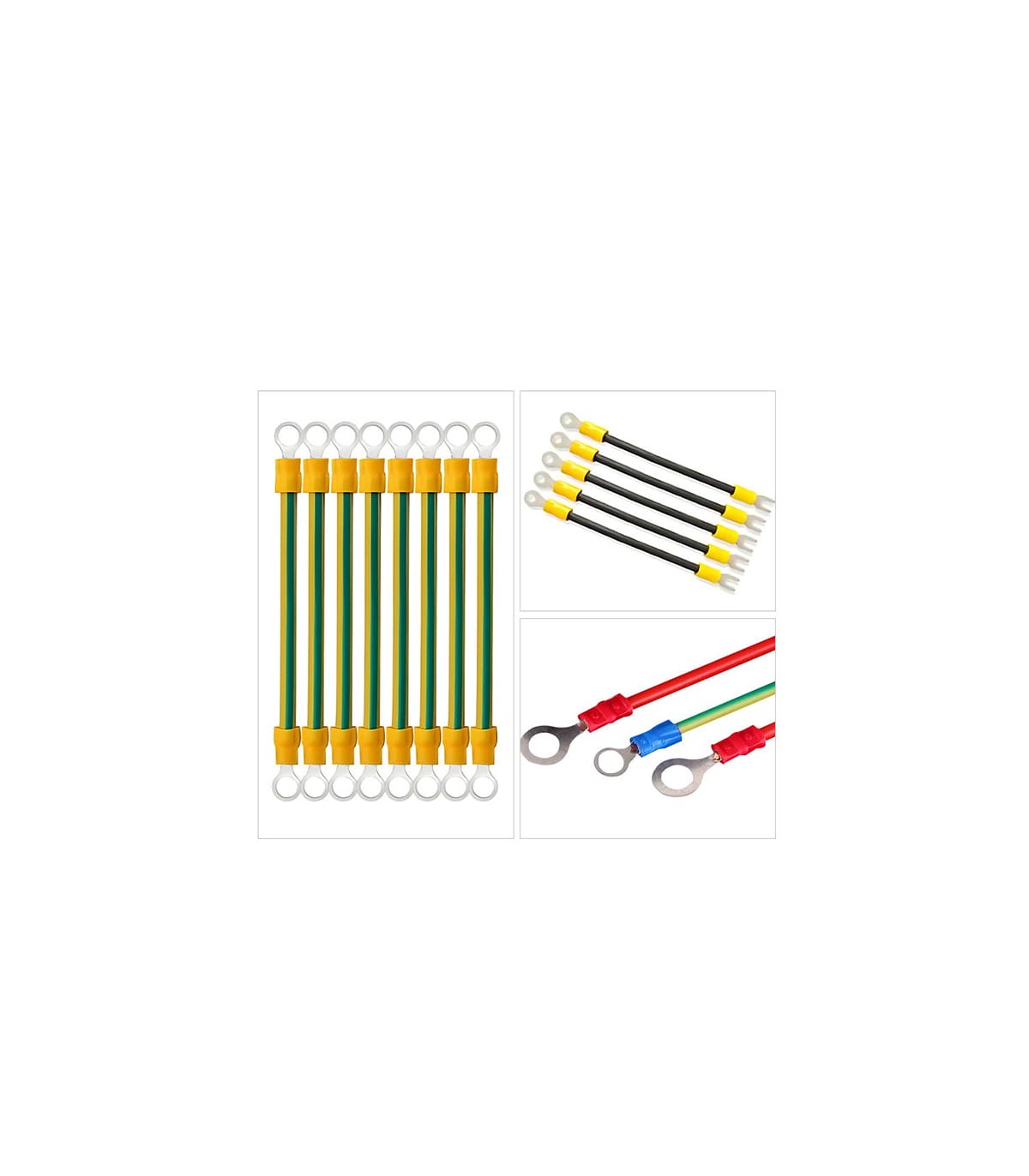

MAIN APPLICATIONS

- Electrical and industrial wiring

- Automotive industry

- Electrical panel construction

- Wiring harness production

- Electronic component assembly

TECHNICAL DATA

Model: RBEW5580

Cable diameter: approx. 0.5 - 6 mm

Stripping length: up to approx. 40 mm

Crimping force: 2T (20 kN)

Productivity: 1,200 pcs/hour

Display: 7" touchscreen

Cutting length: 5 - 12 mm

Machine dimensions: 552 x 530 x 491 mm

Weight: 55 kg
