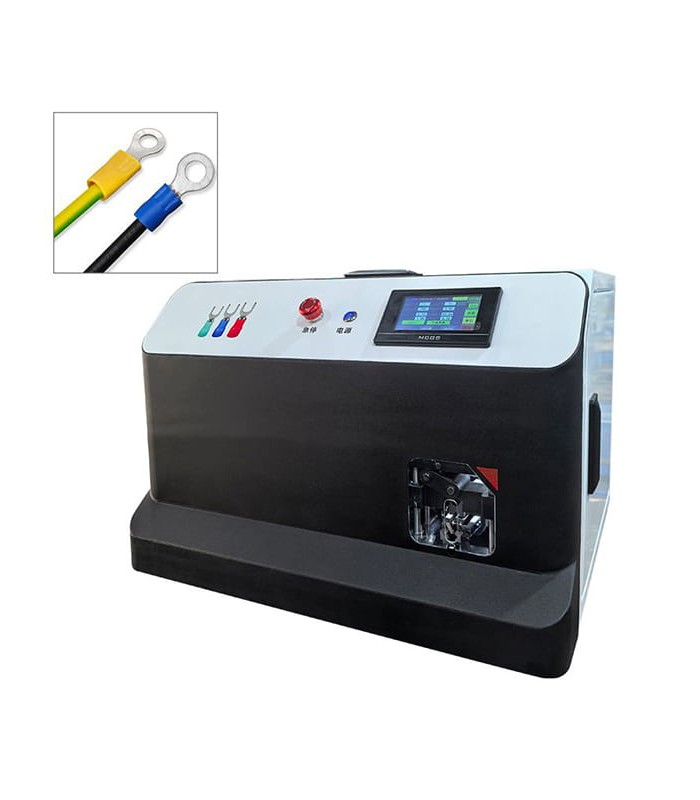

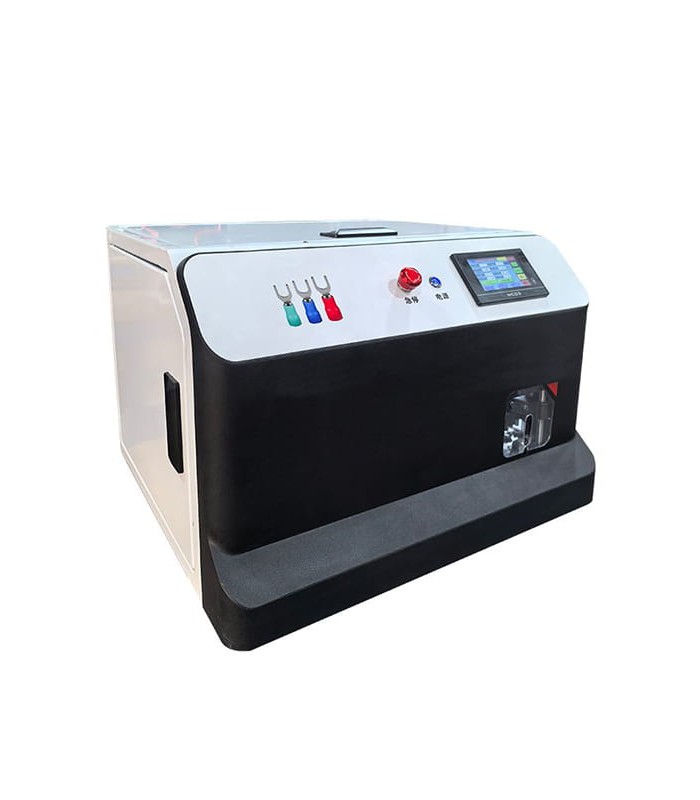

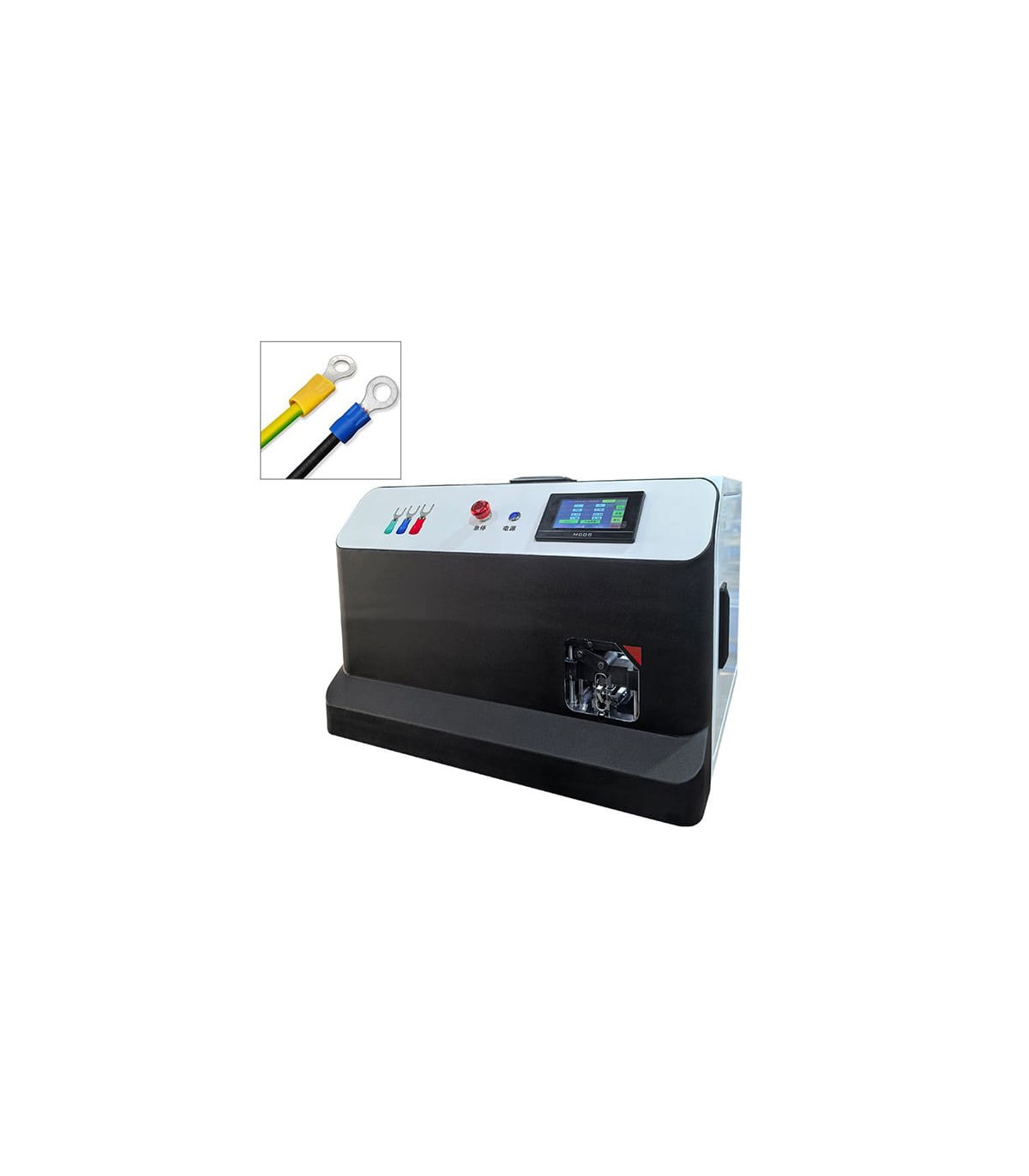

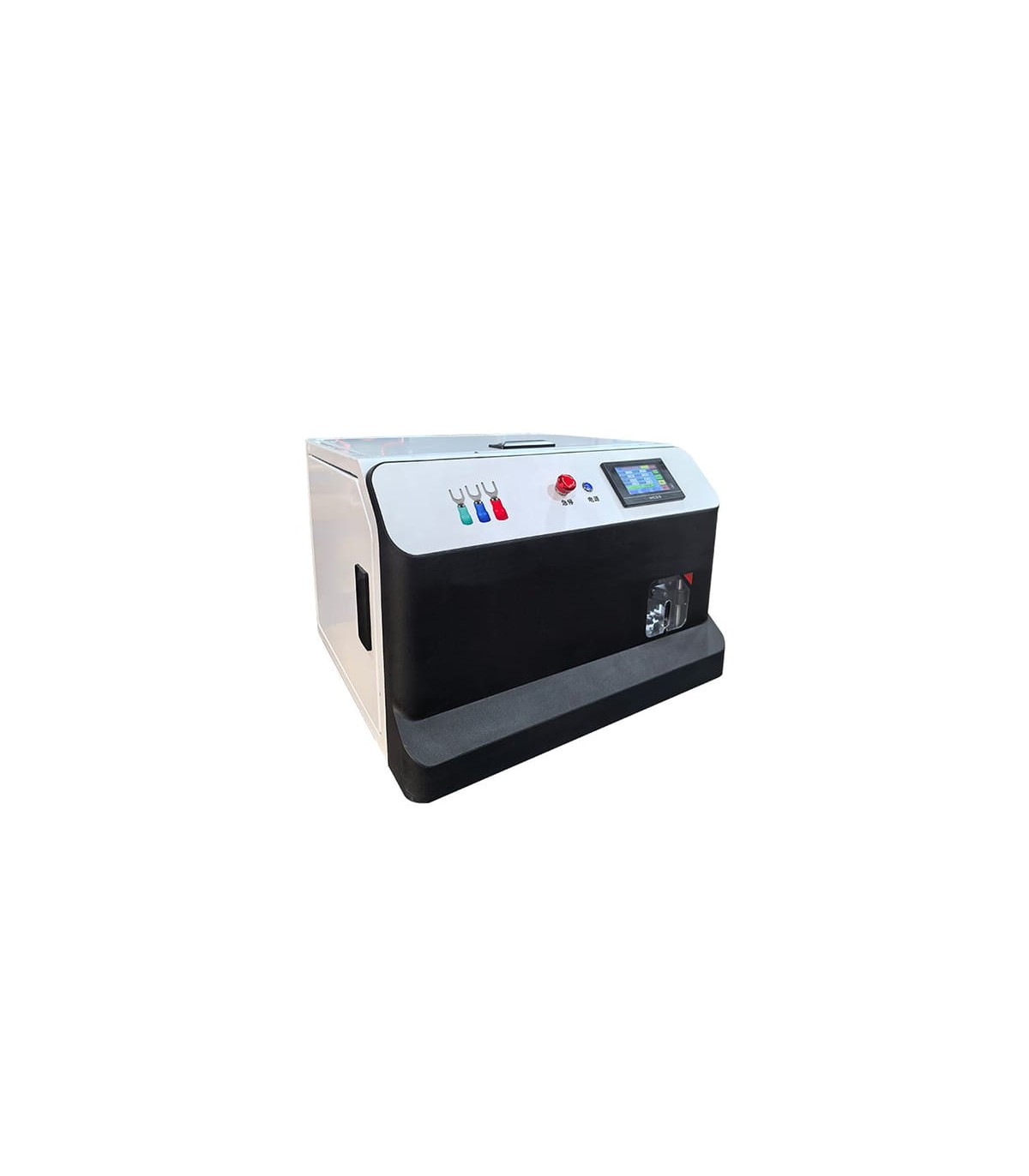

Automatic machine for stripping and crimping eyelet and fork terminals (0.5 - 6 mmq)

This model is designed to handle a wide range of cable cross-sections, from fine to thicker ones, supporting programmable cutting lengths with very tight tolerances, and allowing front and rear stripping with precise adjustments.
The feeding system is based on motorized rollers (roller drive) with belts or servo-driven transmission, ensuring smooth cable advancement without damaging the outer insulation.
The cutting blades, made of steel, are designed to guarantee a clean cut, reducing the risk of residues or chips that could compromise cable quality.

Operationally, the RBEW5585 features a multilingual touch-screen interface that allows programming, storing, and recalling multiple configurations: cutting length, stripping length, waiting times, and the number of saved programs.
It also includes a safety system that signals possible stoppages in case of anomalies, cable depletion, or insufficient pneumatic pressure.

Typical applications of the RBEW5585 include the electrical sector, wiring for household appliances, automation systems, panel production, the automotive industry, and any other situation where pre-cut and stripped cables are required with precision.

Technical data

Model: RBEW5585
Cable material: BVR cables
Cable cross-section: 0.5 – 6 mmq
Stripping length: 0.1 – 18 mm
Capacity: 1000 – 1300 pcs/hour (depending on cable length)
Drive mode: Motor (servo motor)
Power supply: AC 220–240 V (50 – 60 Hz)
Power: 1200 W
Air pressure: 0.4 – 0.6 MPa
Weight: 75 kg
Dimensions: 600 × 590 × 430 mm
