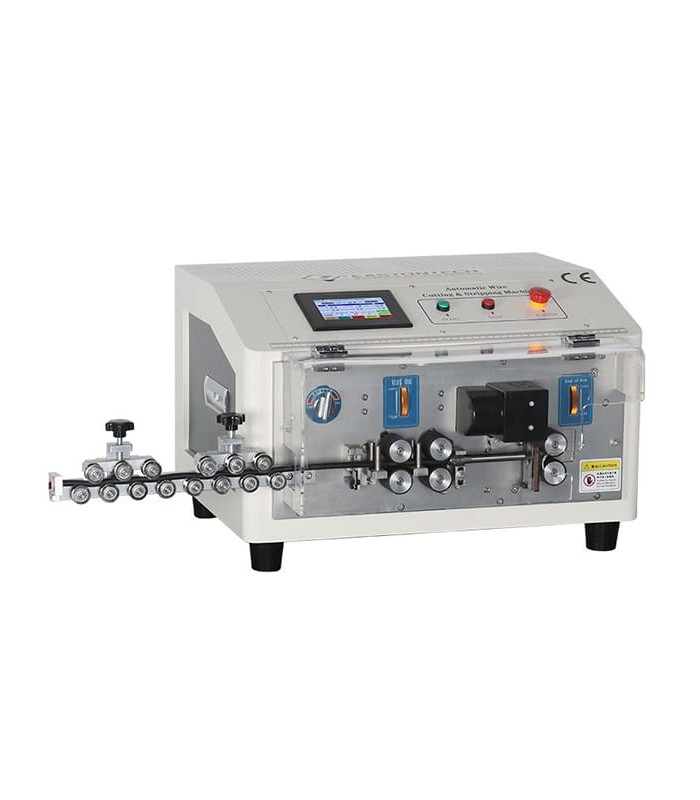

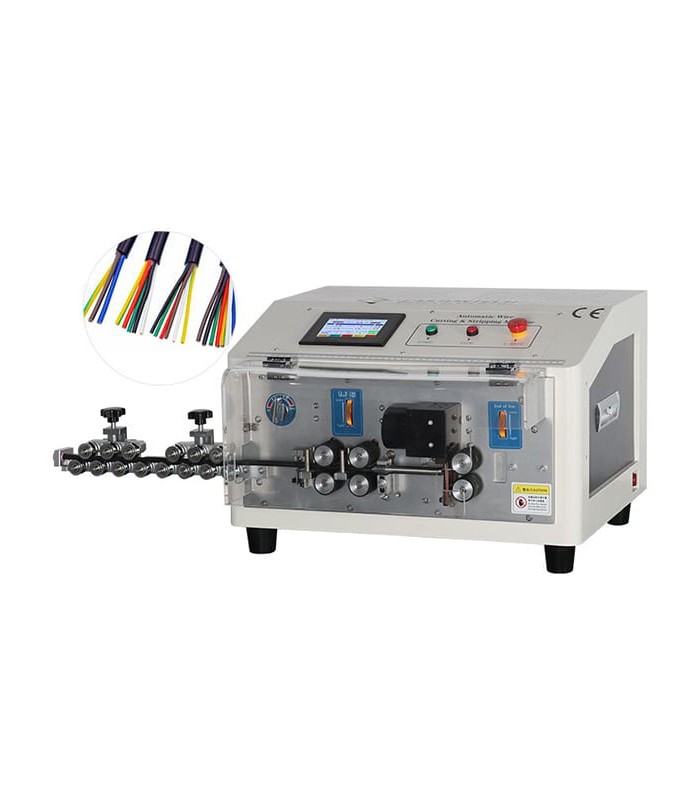

Automatic machine for cutting and stripping multi-core cables (Ø 1 - 10 mm)

The RBEW3030 is a professional machine designed for automatic cutting and stripping of electrical cables with diameter from 1 to 10 mm.
Thanks to the automatic processing system, it allows precise cuts and uniform stripping, ensuring constant quality, process repeatability and reduced manual intervention.
The machine is particularly suitable for industrial applications where precision, productivity and continuous operation are required in the preparation of cables for electrical, electronic, automotive wiring harnesses and professional systems.
The cutting length adjustable from 0.1 to 99999.9 mm allows the machine to be adapted to different production needs, both for short processing and for long-length cutting.
The machine allows stripping on side 1 from 0.1 to 250 mm and on side 2 from 0.1 to 70 mm, making it suitable for different cable preparation types.
The stripping precision with tolerance of 0.01 mm allows accurate processing, reducing the risk of damaging the internal conductor.
The steel blades ensure strength and durability over time, while productivity up to 2000 pieces/hour makes the RBEW3030 suitable for series production and production departments.
The compact structure and low weight allow easy positioning on a workbench, making the machine ideal for wiring workshops, assembly lines and professional applications.

OPERATING PRINCIPLE

- The cable is inserted into the machine feeding system
- The operator sets the cutting length and stripping parameters
- The machine cuts to the programmed length
- The steel blade system strips side 1 and side 2
- The process is carried out with precision and repeatability
- The cable is released ready for the next assembly, crimping or connection stages

MAIN ADVANTAGES

- Ideal for automatic cutting and stripping of electrical cables
- Compatible with cables from 1 to 10 mm in diameter
- Cutting length adjustable from 0.1 to 99999.9 mm
- Side 1 stripping from 0.1 to 250 mm
- Side 2 stripping from 0.1 to 70 mm
- Stripping precision with 0.01 mm tolerance
- Productivity up to 2000 pieces/hour
- Robust and resistant steel blades
- Stable, precise and repeatable process
- Reduced processing times
- Compact benchtop structure
- Suitable for professional and industrial use

MAIN APPLICATIONS

- Cutting and stripping of electrical cables
- Cable preparation for crimping
- Electrical and electronic wiring
- Wiring harness production
- Automotive sector
- Electrical panels and industrial systems
- Assembly lines
- Wiring workshops and production departments
- Electronic and industrial applications
- Professional electrical maintenance

TECHNICAL FEATURES

Model: RBEW3030

Machine type: automatic cutting and stripping machine for cables

Cable diameter: 1 - 10 mm

Cutting length: 0.1 - 99999.9 mm

Side 1 stripping length: 0.1 - 250 mm

Side 2 stripping length: 0.1 - 70 mm

Stripping precision: tolerance 0.01 mm

Production capacity: 1000 - 2000 pieces/hour

Blade material: steel

Power supply: AC 110 / 220 V, 50/60 Hz

Dimensions: 565 x 385 x 370 mm

Weight: 43 kg

Application: cutting and stripping of electrical cables

Operation: automatic

Use: professional and industrial
