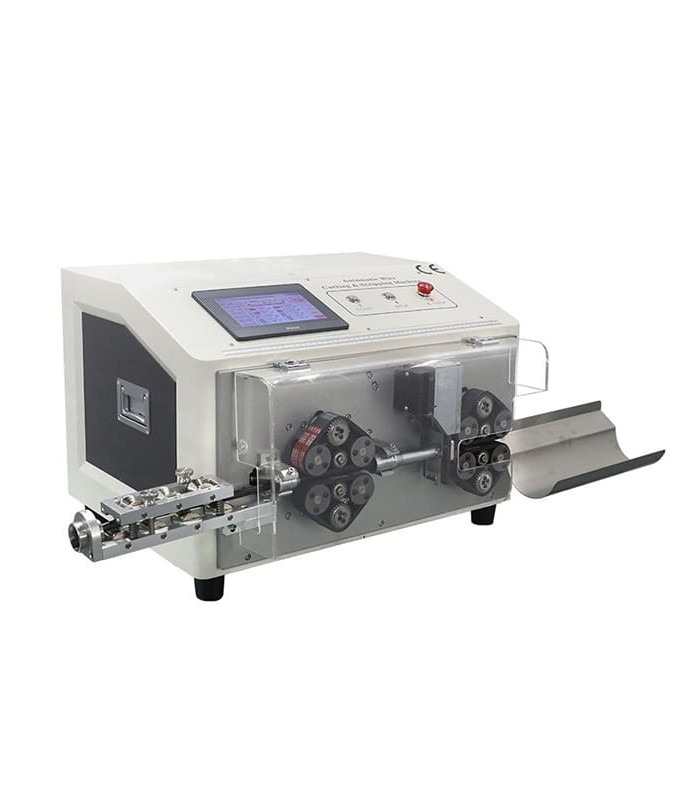

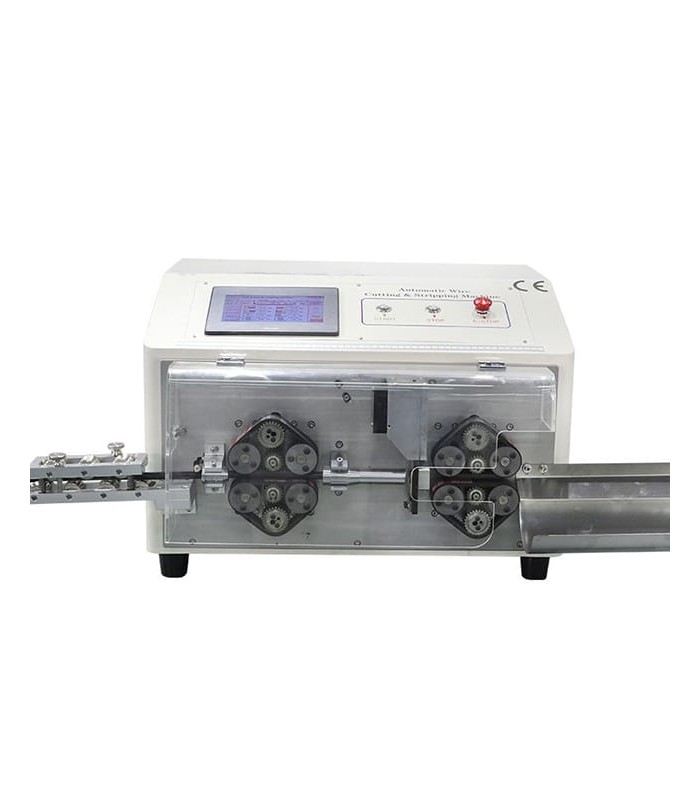

Automatic machine for cutting and stripping single-core cables (0.5 - 16 mmq)

The RBEW3035+ is a professional machine designed for automatic cutting and stripping of electrical cables with a section from 0.5 to 16 mm².
Thanks to the 12-roller belt feeding system, it allows stable and controlled cable advancement, improving cutting precision, stripping quality and process repeatability.
The machine is particularly suitable for industrial applications where precision, productivity and continuous operation are required in the preparation of cables for electrical, electronic, automotive wiring harnesses and professional systems.
The belt system is ideal for processing cables with delicate sheaths or surfaces that require uniform feeding, reducing the risk of deformation or marks on the cable during advancement.
The cutting length adjustable from 0.1 to 99999.9 mm allows the machine to be adapted to different production needs, both for short processing and for long-length cutting.
The machine allows stripping on side 1 from 0.1 to 200 mm and on side 2 from 0.1 to 70 mm, offering flexibility in cable preparation according to the next assembly, crimping or connection stages.
The steel blades ensure strength and durability over time, while productivity from 1500 to 3000 pieces/hour makes the RBEW3035+ suitable for series production and production departments.
The compact structure and compressed-air assisted feeding system make the machine ideal for wiring workshops, assembly lines, production departments and professional applications where precision, reliability and continuous operation are required.

OPERATING PRINCIPLE

- The cable is inserted into the belt feeding system
- The 12 rollers ensure stable and controlled cable advancement
- The operator sets the cutting length and stripping parameters
- The machine cuts to the programmed length
- The steel blade system strips side 1 and side 2
- The belt feeding system reduces the risk of damaging or marking the cable sheath
- The cable is released ready for the next assembly, crimping or connection stages

MAIN ADVANTAGES

- Ideal for automatic cutting and stripping of electrical cables
- 12-roller belt feeding system
- Processing range from 0.5 to 16 mm²
- Compatible with tubes/cables from 4 to 10 mm in diameter
- Cutting length adjustable from 0.1 to 99999.9 mm
- Side 1 stripping from 0.1 to 200 mm
- Side 2 stripping from 0.1 to 70 mm
- Productivity from 1500 to 3000 pieces/hour
- Stable and uniform cable advancement
- Reduced risk of marks or deformation on the sheath
- Robust and resistant steel blades
- Stable, precise and repeatable process
- Compact structure for professional and industrial use

MAIN APPLICATIONS

- Cutting and stripping of electrical cables
- Processing of cables with delicate sheaths
- Cable preparation for crimping
- Electrical and electronic wiring
- Wiring harness production
- Automotive sector
- Electrical panels and industrial systems
- Assembly lines
- Wiring workshops and production departments
- Electronic and industrial applications
- Professional electrical maintenance
- Series production

TECHNICAL FEATURES

Model: RBEW3035+

Machine type: automatic cutting and stripping machine for cables with belt feeding

Cable feeding: 12-roller belt feeding

Cable section: 0.5 - 16 mm²

Tube diameter: 4 - 10 mm

Cutting length: 0.1 - 99999.9 mm

Side 1 stripping length: 0.1 - 200 mm

Side 2 stripping length: 0.1 - 70 mm

Production capacity: 1500 - 3000 pieces/hour

Blade material: steel

Power supply: AC 110 / 220 V, 50/60 Hz

Air supply: 0.5 - 0.6 MPa

Dimensions: 470 x 450 x 350 mm

Weight: 65 kg

Application: cutting and stripping of electrical cables

Operation: automatic with belt feeding

Use: professional and industrial
