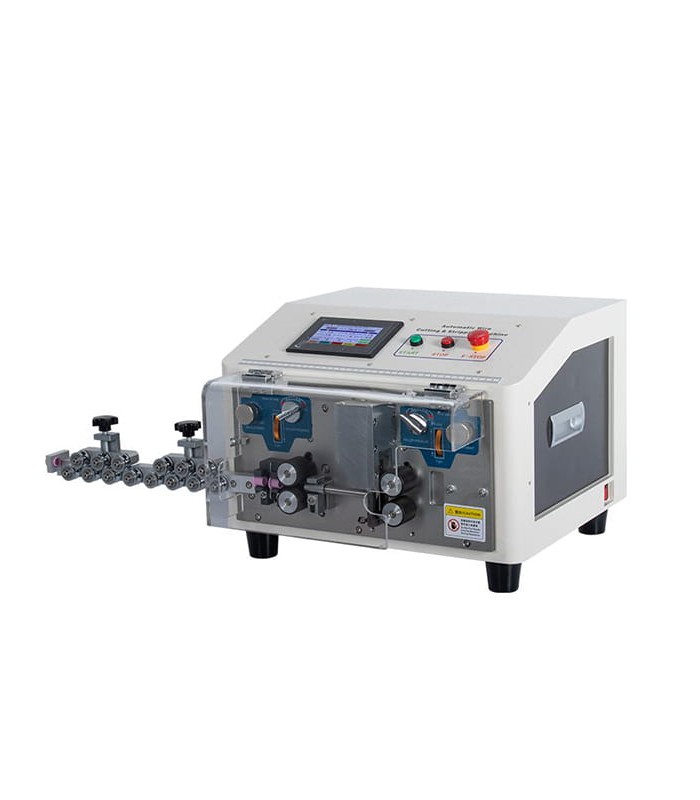

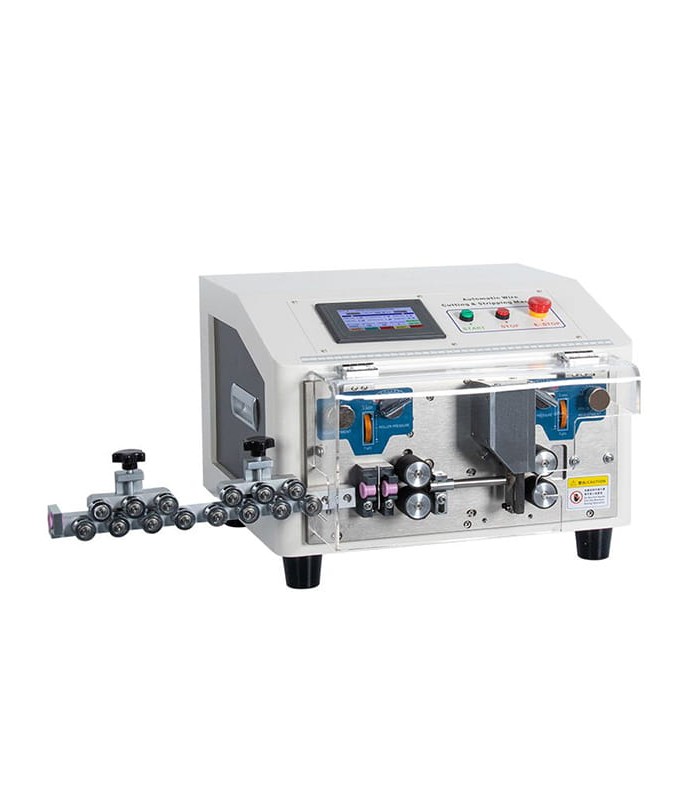

Automatic machine for cutting and stripping single-core cables (1 - 16 mmq)

The RBEW3035 is a professional machine designed for automatic cutting, double-end stripping and intermediate stripping of electrical cables with a section from 1 to 16 mm².
Thanks to the automatic processing system, it allows precise cuts and uniform stripping, ensuring constant quality, process repeatability and reduced manual intervention.
The machine is particularly suitable for industrial applications where precision, productivity and continuous operation are required in the preparation of cables for electrical, electronic, automotive wiring harnesses and professional systems.
The cutting length adjustable from 0.1 to 99999.9 mm allows the machine to be adapted to different production needs, both for short processing and for long-length cutting.
The machine allows head stripping from 0.1 to 250 mm and tail stripping from 0.1 to 70 mm, making it suitable for different cable preparation types.
The stripping precision of 0.01 mm, together with the silent hybrid stepper motor, allows accurate and stable processing, reducing the risk of damaging the internal conductor.
The customizable intermediate stripping function increases operating flexibility, allowing specific processing according to wiring harness requirements.
The blades made of imported tungsten steel / high-speed steel ensure high wear resistance and long service life, while productivity up to 5000 pieces/hour makes the RBEW3035 suitable for series production and high-efficiency production departments.
The machine integrates practical functions such as automatic cable input and output, timed start and manual pulse adjustment, making daily use and setup operations easier.
The compact structure and touch screen control make it ideal for wiring workshops, assembly lines, production departments and professional applications.

OPERATING PRINCIPLE

- The cable is inserted into the machine feeding system
- The operator sets the cutting length and stripping parameters via touch screen interface
- The machine cuts to the programmed length
- The blade system performs double-end stripping
- The machine can also perform customizable intermediate stripping
- The hybrid stepper motor ensures stable and precise processing
- The cable is released ready for the next assembly, crimping or connection stages

MAIN ADVANTAGES

- Ideal for automatic cutting and stripping of electrical cables
- Processing range from 1 to 16 mm²
- Maximum cable diameter up to 10 mm
- Automatic cutting with adjustable length up to 99999.9 mm
- Double-end stripping
- Head stripping from 0.1 to 250 mm
- Tail stripping from 0.1 to 70 mm
- Stripping precision of 0.01 mm
- Customizable intermediate stripping
- Silent hybrid stepper motor
- High productivity up to 5000 pieces/hour
- Imported tungsten steel / high-speed steel blades
- Touch screen control
- Automatic cable input and output
- Compact benchtop structure
- Suitable for professional and industrial use

MAIN APPLICATIONS

- Cutting and stripping of electrical cables
- Double-end stripping
- Intermediate cable stripping
- Cable preparation for crimping
- Electrical and electronic wiring
- Wiring harness production
- Automotive sector
- Electrical panels and industrial systems
- Assembly lines
- Wiring workshops and production departments
- Electronic and industrial applications
- Professional electrical maintenance

TECHNICAL FEATURES

Model: RBEW3035

Machine type: automatic cutting and stripping machine for cables

Function: cable cutting, double-end stripping and intermediate stripping

Cable section: 1 - 16 mm²

Maximum cable diameter: 10 mm

Cutting length: 0.1 - 99999.9 mm

Head stripping length: 0.1 - 250 mm

Tail stripping length: 0.1 - 70 mm

Stripping precision: 0.01 mm

Motor: silent hybrid stepper motor

Intermediate stripping: customizable

Production capacity: 2000 - 5000 pieces/hour

Blade material: imported tungsten steel / high-speed steel

Power supply: AC 110 / 220 V, 50/60 Hz

Additional functions: automatic input and output, timed start, manual pulse adjustment

Dimensions: 470 x 450 x 350 mm

Weight: 36.5 kg

Application: cutting and stripping of electrical cables

Operation: automatic

Use: professional and industrial
