Automatic machine for cutting and stripping multicore cables (Ø 1 - 6 mm)

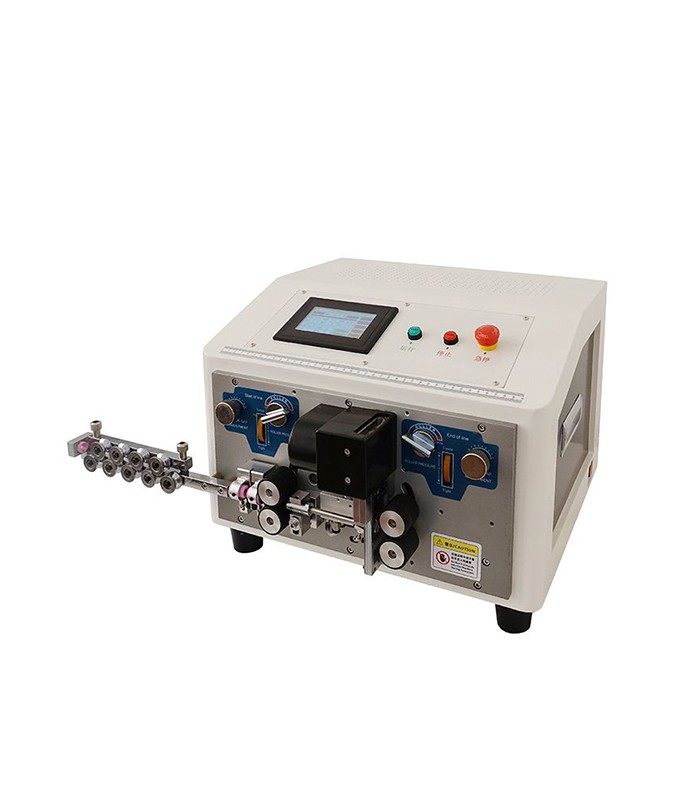

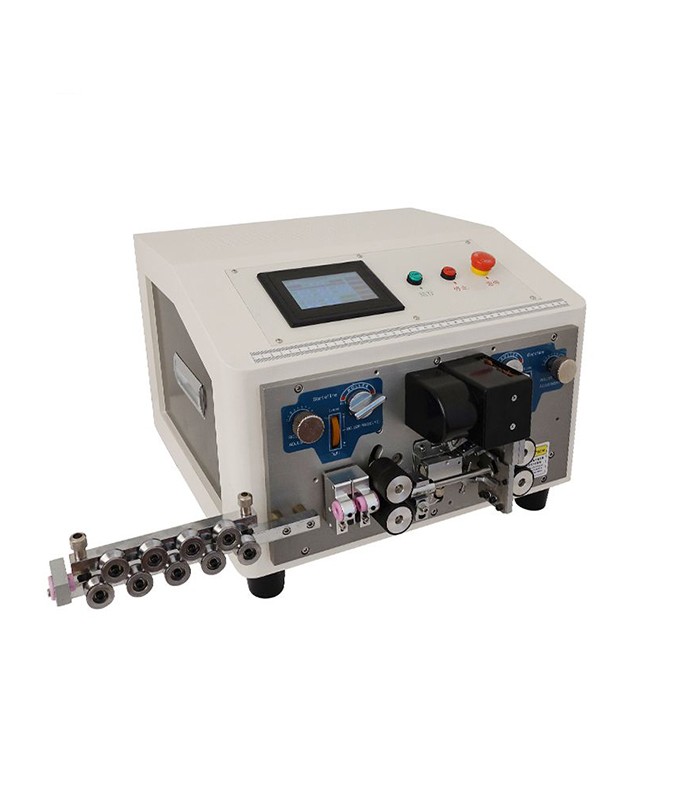

The RBEW3050 is a professional machine designed for automatic cutting and double-end stripping of electrical cables with diameter from 1 to 6 mm.
Thanks to the automatic processing system, it allows precise cutting, uniform stripping and customizable intermediate stripping, ensuring constant quality, process repeatability and reduced manual intervention.
The machine is particularly suitable for industrial applications where precision, productivity and continuous operation are required in the preparation of cables for electrical, electronic, automotive wiring harnesses and professional systems.
The cutting length adjustable from 0.1 to 99999.9 mm allows the machine to be adapted to different production needs, both for short processing and for long-length cutting.
The machine allows external line stripping on head and tail from 0.1 to 250 mm, central line stripping from 0.1 to 70 mm and head/tail stripping from 0.1 to 30 mm, making it suitable for different cable preparation types.
The stripping precision of 0.01 mm, together with the silent hybrid stepper motor, allows accurate and stable processing, reducing the risk of damaging the internal conductor.
The customizable intermediate stripping function increases operating flexibility, allowing specific processing according to wiring harness requirements.
The tungsten steel blades ensure high wear resistance and long service life, while productivity up to 2000 pieces/hour makes the RBEW3050 suitable for series production and production departments.
The compact structure and low weight allow easy positioning on a workbench, making the machine ideal for wiring workshops, assembly lines and professional applications.

OPERATING PRINCIPLE

- The cable is inserted into the machine feeding system
- The operator sets the cutting length and stripping parameters
- The machine cuts to the programmed length
- The tungsten steel blade system performs double-end stripping
- The machine can also perform customizable intermediate stripping
- The hybrid stepper motor ensures stable and precise processing
- The cable is released ready for the next assembly, crimping or connection stages

MAIN ADVANTAGES

- Ideal for automatic cutting and stripping of electrical cables
- Compatible with cables from 1 to 6 mm in diameter
- Automatic cutting with adjustable length up to 99999.9 mm
- Double-end stripping
- External line head/tail stripping from 0.1 to 250 mm
- Central line stripping from 0.1 to 70 mm
- Head/tail stripping from 0.1 to 30 mm
- Stripping precision of 0.01 mm
- Customizable intermediate stripping
- Silent hybrid stepper motor
- Productivity up to 2000 pieces/hour
- Durable tungsten steel blades
- Compact benchtop structure
- Suitable for professional and industrial use

MAIN APPLICATIONS

- Cutting and stripping of electrical cables
- Double-end stripping
- Intermediate cable stripping
- Cable preparation for crimping
- Electrical and electronic wiring
- Wiring harness production
- Automotive sector
- Electrical panels and industrial systems
- Assembly lines
- Wiring workshops and production departments
- Electronic and industrial applications
- Professional electrical maintenance

TECHNICAL FEATURES

Model: RBEW3050

Machine type: automatic cutting and stripping machine for cables

Function: cable cutting and double-end stripping

Cable diameter: 1 - 6 mm

Cutting length: 0.1 - 99999.9 mm

External line head/tail stripping length: 0.1 - 250 mm

Central line stripping length: 0.1 - 70 mm

Head/tail stripping length: 0.1 - 30 mm

Stripping precision: 0.01 mm

Motor: silent hybrid stepper motor

Intermediate stripping: customizable

Production capacity: 1000 - 2000 pieces/hour

Blade material: tungsten steel

Power supply: AC 110 / 220 V, 50/60 Hz

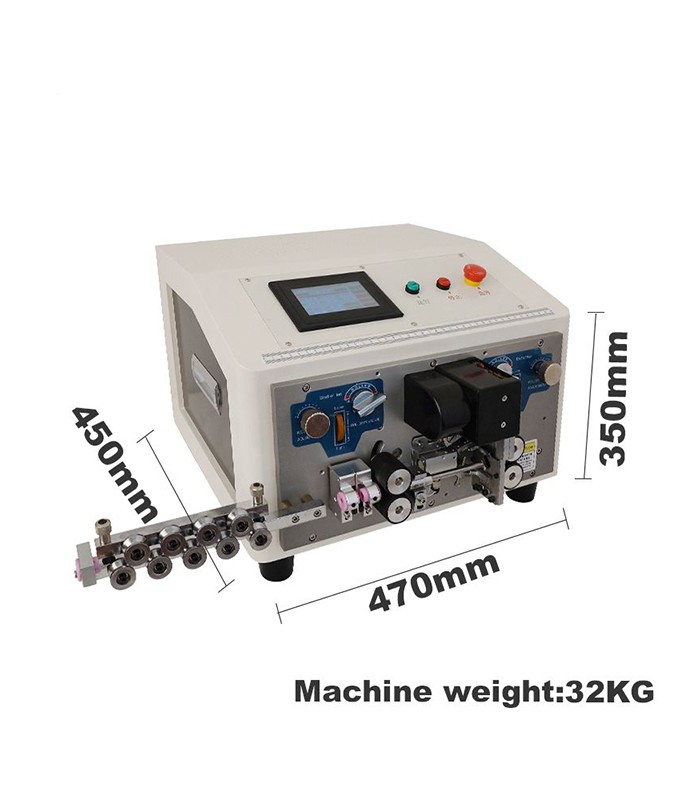

Dimensions: 470 x 450 x 350 mm

Weight: 32 kg

Application: cutting and stripping of electrical cables

Operation: automatic

Use: professional and industrial
