RBCTMNFT2X2PMCS

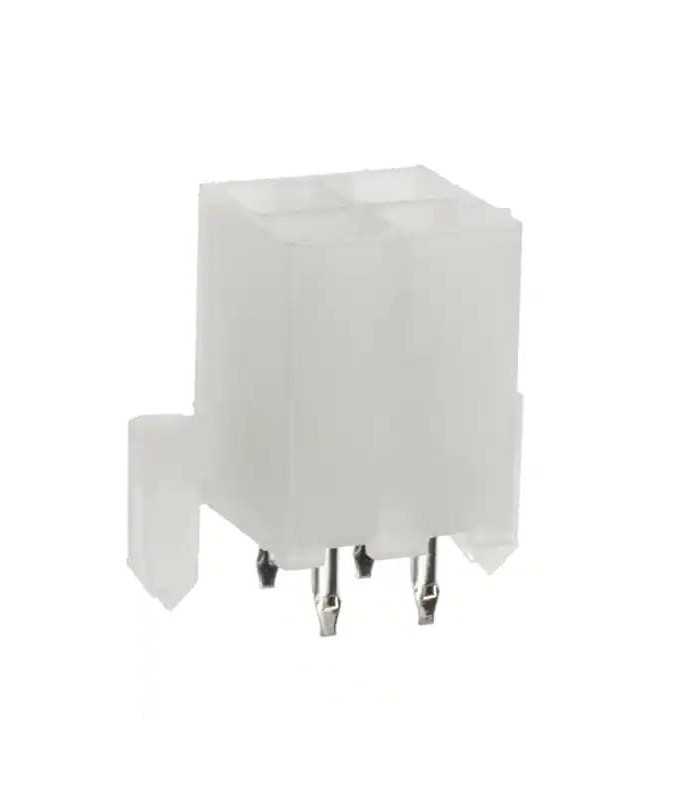

Mini Fit Connectors female 2X2 way PCB

ErreBi code: 20147
Producer code: Cross Reference 39-29-9042
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.92 (tax excl.)
€1.12 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €1.01 €1.12
25 €0.90 €5.61
50 €0.84 €14.03
100 €0.73 €39.28
250 €0.62 €126.27
500 €0.56 €280.60
1000 €0.51 €617.32
Available in stock 95 Items
Condition
New
Reference:
RBCTMNFTPM2X2VCS
Brand:
ErreBi Group
Add to wishlist
Description
Number of positions: 4 positions
Pitch: 4.2mm
Number of lines: 2 lines
Mounting angle: straight
Contact type (M/F): Pin (male)
Contact Plating: Tin
Minimum operating temperature: - 40 C
Maximum working temperature: +105C
Rated current: 9A
Flammability class: UL 94 V-2
Housing Color: Natural
Rated Voltage: 600V
Unit Weight: 1g
Read moreShow less
Product Details
RBCTMNFTPM2X2VCS

Data sheet

Product type
Connector body
Serie
Mini-Fit
Amperage
9A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
600V
Contact material
Tin-plated Brass
Mounting
Printed circuit
Kind
Female + male terminal
Number of poles
4
Number of rows
2
Pitch
4.20 mm
Orientation
180°
Contact plating
Tin
Minimum order quantity
1
Unit Type
piece
