RBCTMNFT2PMSG

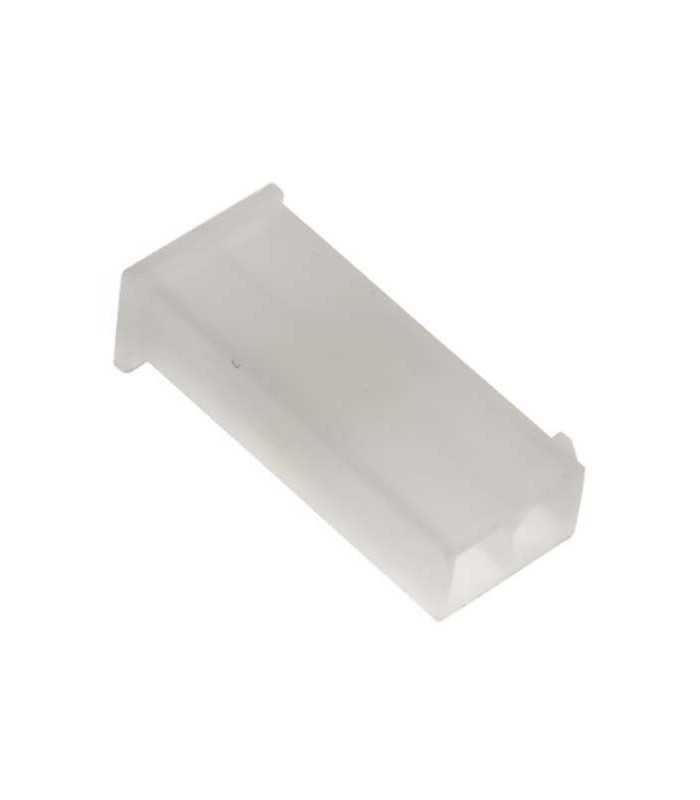

Female mini fit connector P.M. 2 ways without hooks

ErreBi code: 47611
Producer code: 39-01-3023
Producer: Molex
Read moreShow less
€0.14 (tax excl.)
€0.17 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €0.17 €0.00
10 €0.15 €0.17
25 €0.14 €0.85
50 €0.13 €2.14
100 €0.11 €6.00
250 €0.09 €19.19
500 €0.09 €42.70
1000 €0.08 €94.03
Available in stock 166 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMNFT2PMSG
Brand:
ErreBi Group
Add to wishlist
Description
Circuits (maximum): 2
Color - Resin: Natural
Flammability: 94V-2
Glow Wire Compatible: No
Key on the coupling part: None
Lock on the mating part: Yes
Material: nylon resin
Net weight: 0.857 / g
Number of lines: 2
Panel Mount: No
Pitch - Mating interface: 4.20mm
Pitch - Termination Interface: 4.20mm
Polarized to the mating part: Yes
Stackable: No
Temperature range - Operating from: -40 ° to + 105 ° C
Read moreShow less
Product Details
RBCTMNFT2PMSG

Data sheet

Product type
Connector body
Serie
Mini-Fit Jr. - 5559
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Dimensions
23,90x7,40x9,60 (L x W x H)
Flammability
94V-2
Voltage
250V
Mounting
For cable
Kind
Female
Number of poles
2
Number of rows
1
Pitch
4.20 mm
Orientation
180°
Minimum order quantity
5
Unit Type
pieces

Specific References

UPC
800753617926
