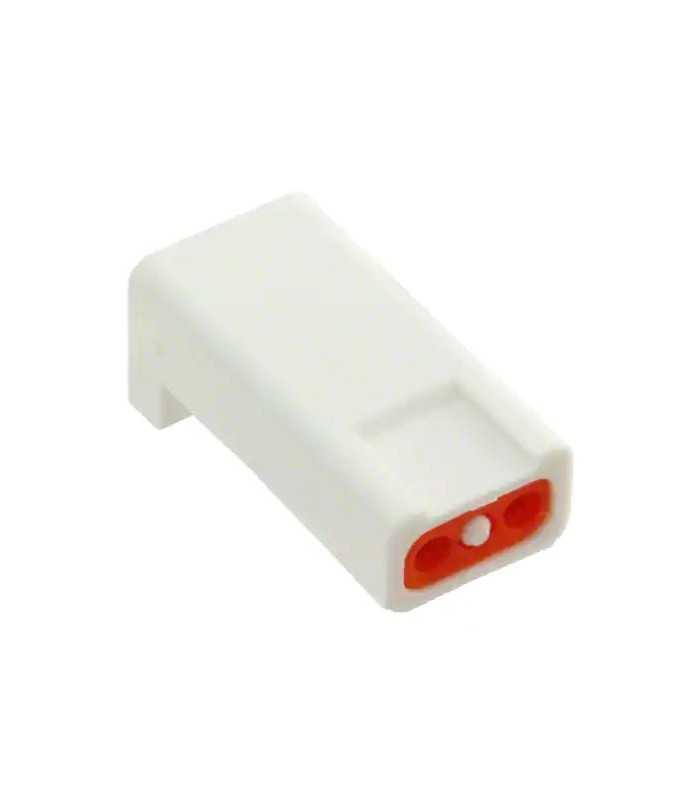

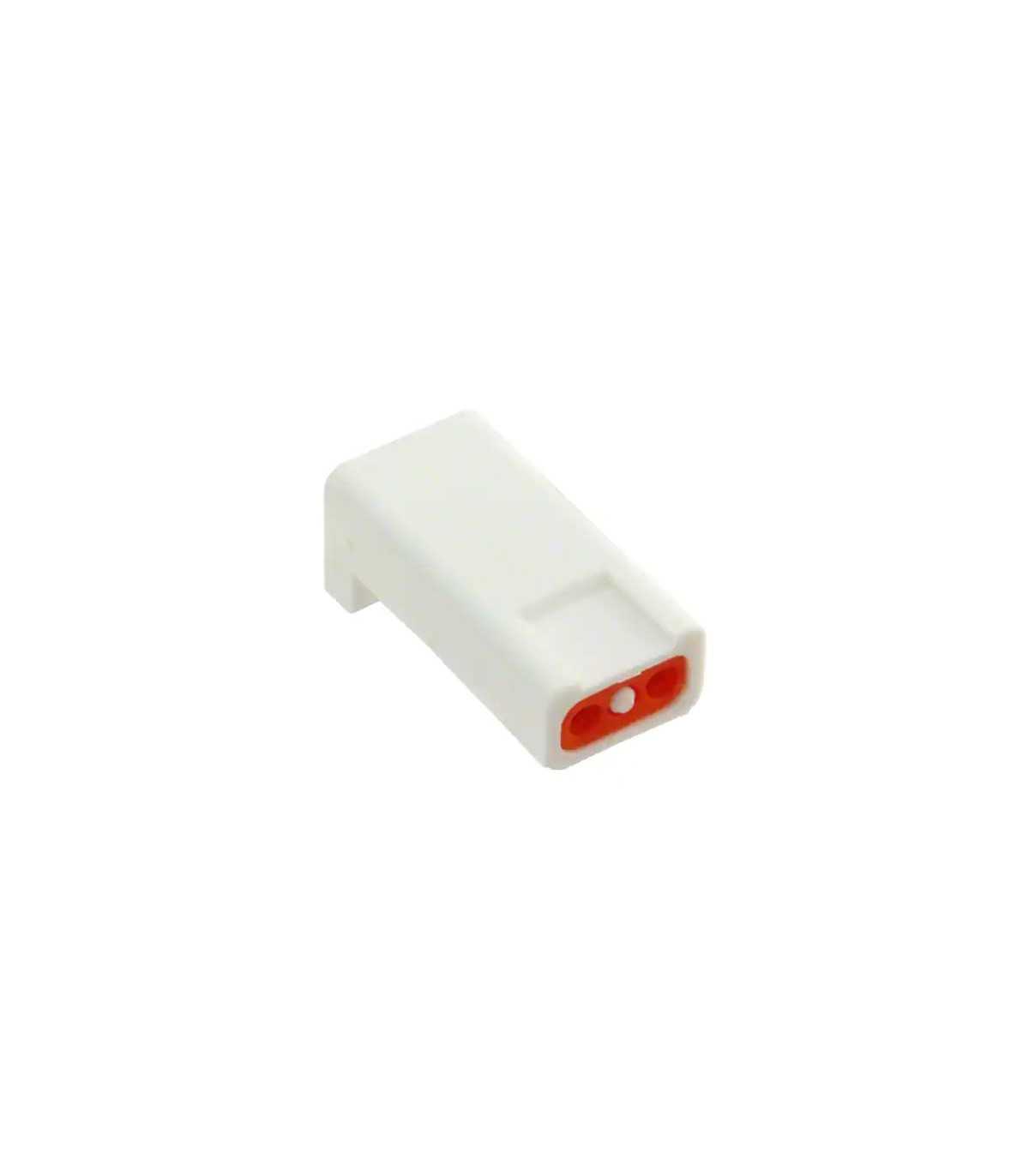

SlimSeal Connector female 2 way

Errebi code: 56144
Producer code: 1-2834075-2
Producer: TE/Connectivity

€2.58 (tax excl.)

€3.15 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
10	€2.83	€3.15
25	€2.52	€15.74
50	€2.36	€39.35
100	€2.05	€110.17
250	€1.73	€354.11
500	€1.57	€786.90
1000	€1.42	€1,731.18

Available in stock 80 Items

Condition

New

Reference:

RBCTSLSPM2VBNT

Brand:

TE Connectivity

Add to wishlist

Description
Product Details

Description

Product type features:
- Lighting Product Type: Connector
- Connector system: wire to wire
- Sealable: Yes
- The connector and the contact end with: wire and cable

Configuration features:
- Number of positions: 2
- Number of lines: 1

Electrical characteristics:
- Operating voltage (max) (VAC): 400

Contact characteristics:
- Rated contact current (max) A (A): 5

Termination functions:
- Wire and cable termination method: Crimping
- Tool-free cable termination: No

Housing features:
- Center line (pitch) (mm): 2.5

Dimensions:
- Wire size (AWG): 18 - 22

Terms of use:
- Operating temperature range: -40 - 105 ° C [-40 - 221 ° F]
- UL flammability classification: UL 94V-0
