€3.46
(tax excl.)
€4.22
(tax incl.)
Errebi code: 56143Producer code: 1-2834074-2Producer: TE/Connectivity

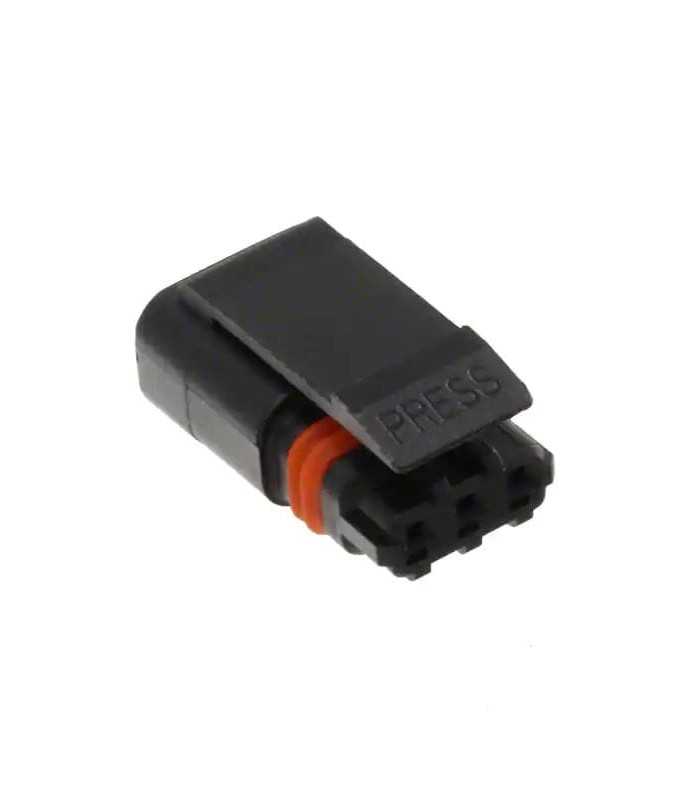

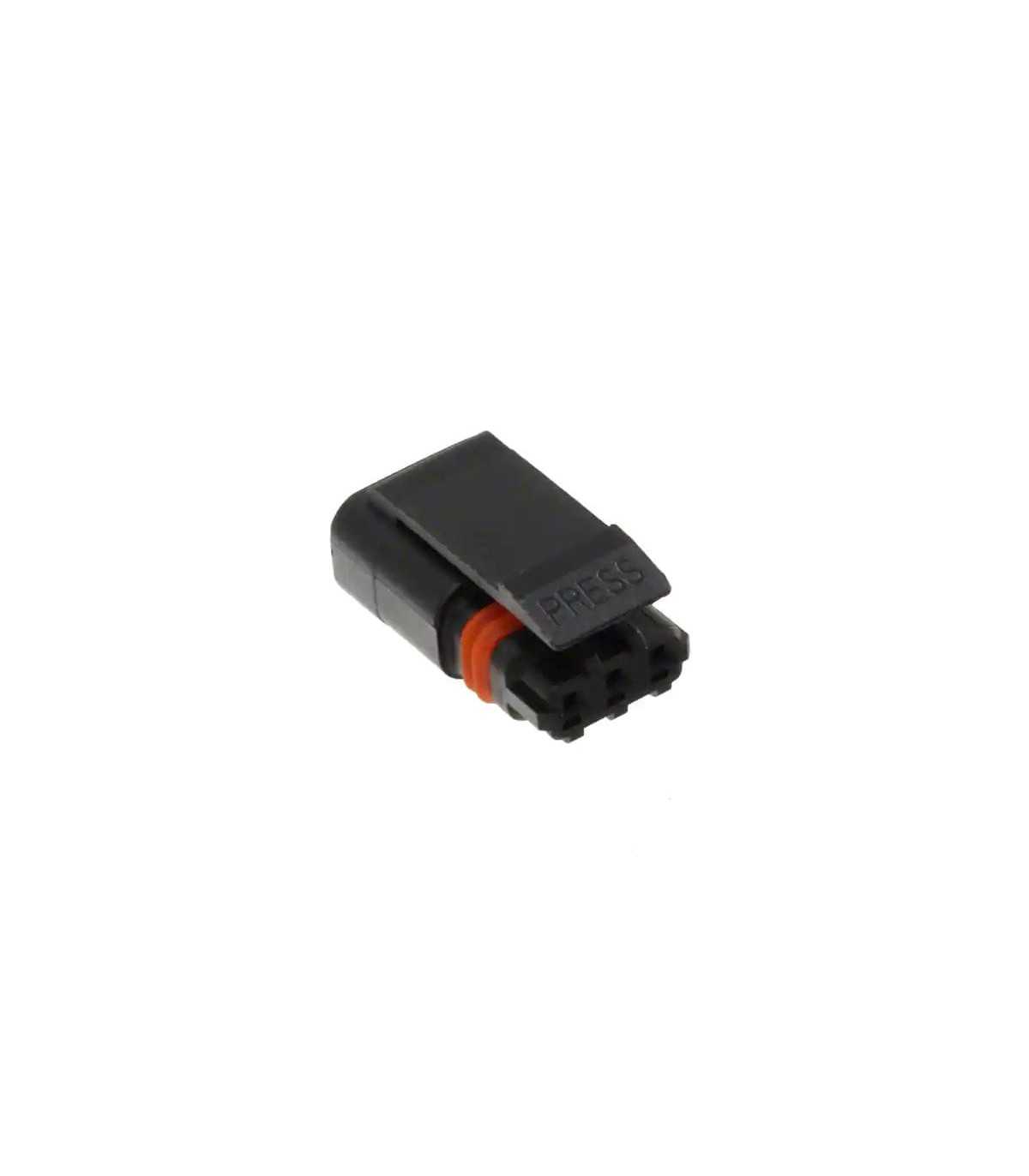

Connector SlimSeal Male 3 Way black TE
Errebi code: 54938
Producer code: 2-2834074-3
Producer: TE/Connectivity
Read moreShow lessProducer code: 2-2834074-3
Producer: TE/Connectivity
€2.22
(tax excl.)
€2.71
(tax incl.)
Condition
New
Reference:
RBCTSLSPF3VNRT
Brand:
Add to wishlist
Product type features:
- Lighting Product Type: Connector
- Connector system: wire to wire
- Sealable: Yes
- The connector and the contact end with: wire and cable
Configuration features:
- Number of positions: 3
- Number of lines: 1
Electrical characteristics:
- Operating voltage (max) (VAC): 400
Contact characteristics:
Nominal contact current (max) A (A): 5
- Wire and cable termination method: Crimping
- Tool-free cable termination: No
Housing features:
- Center line (pitch) (mm): 2.5
Dimensions:
- Wire size (AWG): 18 - 22
Terms of use:
- Operating temperature range: -40 - 105 ° C [-40 - 221 ° F]
- UL flammability classification: UL 94V-0
Read moreShow less
- Lighting Product Type: Connector
- Connector system: wire to wire
- Sealable: Yes
- The connector and the contact end with: wire and cable
Configuration features:
- Number of positions: 3
- Number of lines: 1
Electrical characteristics:
- Operating voltage (max) (VAC): 400
Contact characteristics:
Nominal contact current (max) A (A): 5
- Wire and cable termination method: Crimping
- Tool-free cable termination: No
Housing features:
- Center line (pitch) (mm): 2.5
Dimensions:
- Wire size (AWG): 18 - 22
Terms of use:
- Operating temperature range: -40 - 105 ° C [-40 - 221 ° F]
- UL flammability classification: UL 94V-0
RBCTSLSPF3VNRT
Data sheet
- Product type
- Connector body
- Serie
- SlimSeal
- Amperage
- 5A
- Material
- PA (Polyamide, Nylon)
- Color
- Orange/Black
- Operating temperature
- -40°C to +105°C
- Dimensions
- 25,80x9,80x12,80 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 400V
- Mounting
- On cable
- Kind
- Male
- Number of poles
- 3
- Number of rows
- 1
- Pitch
- 2.50 mm
- Orientation
- 180°
- Minimum order quantity
- 1
- Unit Type
- piece
