RBCTMNFT3X2PFV0M

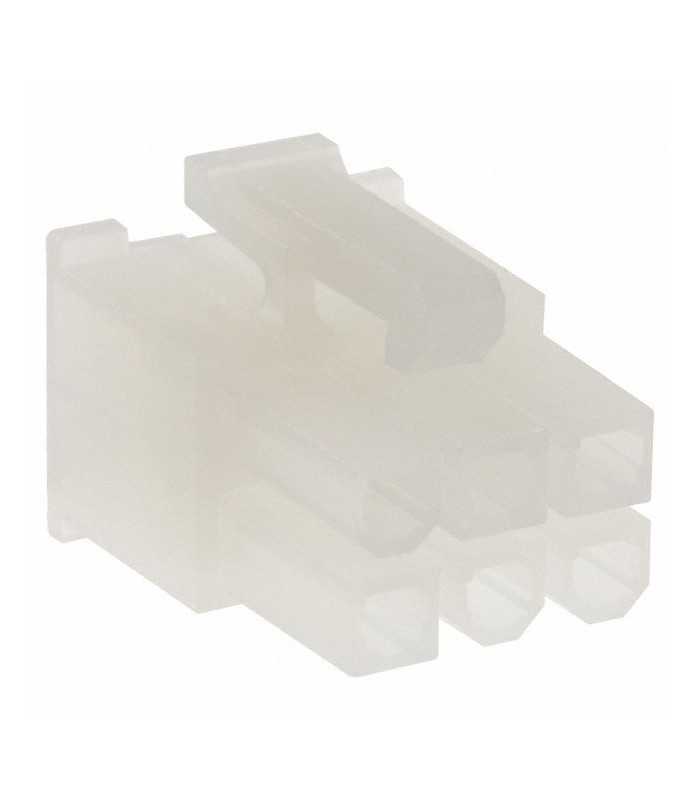

Mini Fit Connectors male 3x2 way Molex

Errebi code: 50333
Producer code: 39-01-2065
Producer: Molex
Read moreShow less
€0.13 (tax excl.)
€0.16 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €0.16 €0.00
10 €0.14 €0.16
25 €0.13 €0.79
50 €0.12 €1.98
100 €0.10 €5.57
250 €0.09 €17.82
500 €0.08 €39.65
1000 €0.07 €87.31
Available in stock 2727 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMNFT3X2PFV0M
Brand:
ErreBi Group
Add to wishlist(1)
Description
Circuits (maximum): 6
Color - Resin: Natural
Flammability: 94V-0
Glow Wire Compatible: No
Material: nylon resin
Net weight: 1.405 / g
Number of lines: 2
Panel Mount: No
Pitch - Mating interface: 4.20mm
Pitch - Termination Interface: 4.20mm
Polarized to the mating part: Yes
Stackable: No
Temperature range - Operating from: -40 ° to + 105 ° C
Read moreShow less
Product Details
RBCTMNFT3X2PFV0M

Data sheet

Product type
Connector body
Serie
Mini-Fit Jr. - 5559
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Dimensions
19,60x13,80x13,10 (L x W x H)
Flammability
94V-2
Voltage
250V
Mounting
For cable
Kind
Female
Number of poles
6
Number of rows
2
Pitch
4.20 mm
Orientation
180°
Minimum order quantity
5
Unit Type
pieces

Specific References

UPC
800753584334
