RBCTNFPF2X2VM

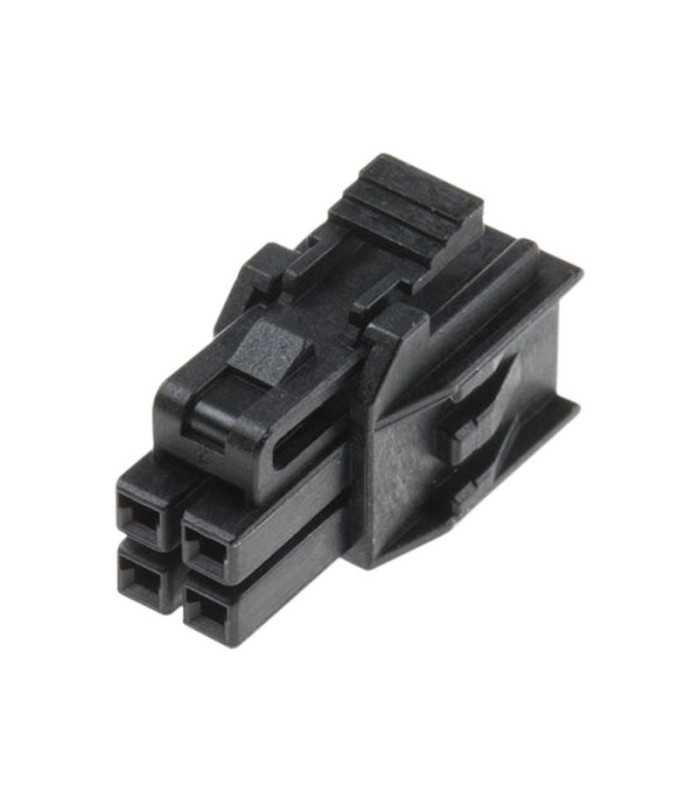

Connectors Nano Fit male 2x2 way

Errebi code: 30010
Producer code: 105308-1204
Producer: Molex
Read moreShow less
€0.47 (tax excl.)
€0.57 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €0.57 €0.00
10 €0.52 €0.57
25 €0.46 €2.86
50 €0.43 €7.17
100 €0.37 €20.13
250 €0.32 €64.44
500 €0.29 €143.35
1000 €0.26 €315.66
Available in stock 260 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTNFPF2X2VM
Brand:
Molex
Add to wishlist
Description
Series: 105308
Overview: Nano-Fit Power Connectors
Product Name: Nano-Fit
Circuits (maximum): 2
Color - Resin: Black
Flammability: 94V-0
Gender: Receptacle
Glow-Wire Capable: Yes
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Material - Resin: Nylon
Number of Rows: 2
Panel Mount: No
Pitch - Mating Interface: 2.50mm
Pitch - Termination Interface: 2.50mm
Polarized to Mating Part: Yes
Temperature Range - Operating (°C): -40° to +105°, -40° to +115°
Current - Maximum per Contact: 6.5A
Read moreShow less
Product Details
RBCTNFPF2X2VM

Data sheet

Product type
Connector body
Serie
Nano-Fit - 105308
Amperage
6.5A
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-40°C to +105°C
Dimensions
15,70x7,70x10,04 (L x W x H)
Flammability
94V-0
Mounting
On cable
Kind
Male
Number of poles
2
Number of rows
2
Pitch
2.50 mm
Orientation
180°
Minimum order quantity
5
Unit Type
pieces

Specific References

UPC
889056023719
Attachments
030010_001_3D .pdf
Download (176.02KB)
030010_002_Drawing.pdf
Download (382.28KB)
