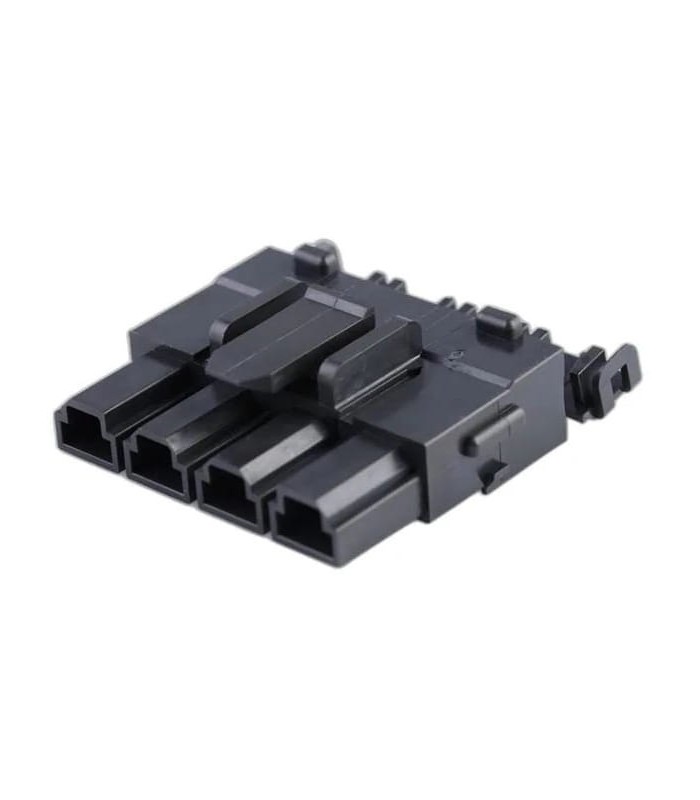

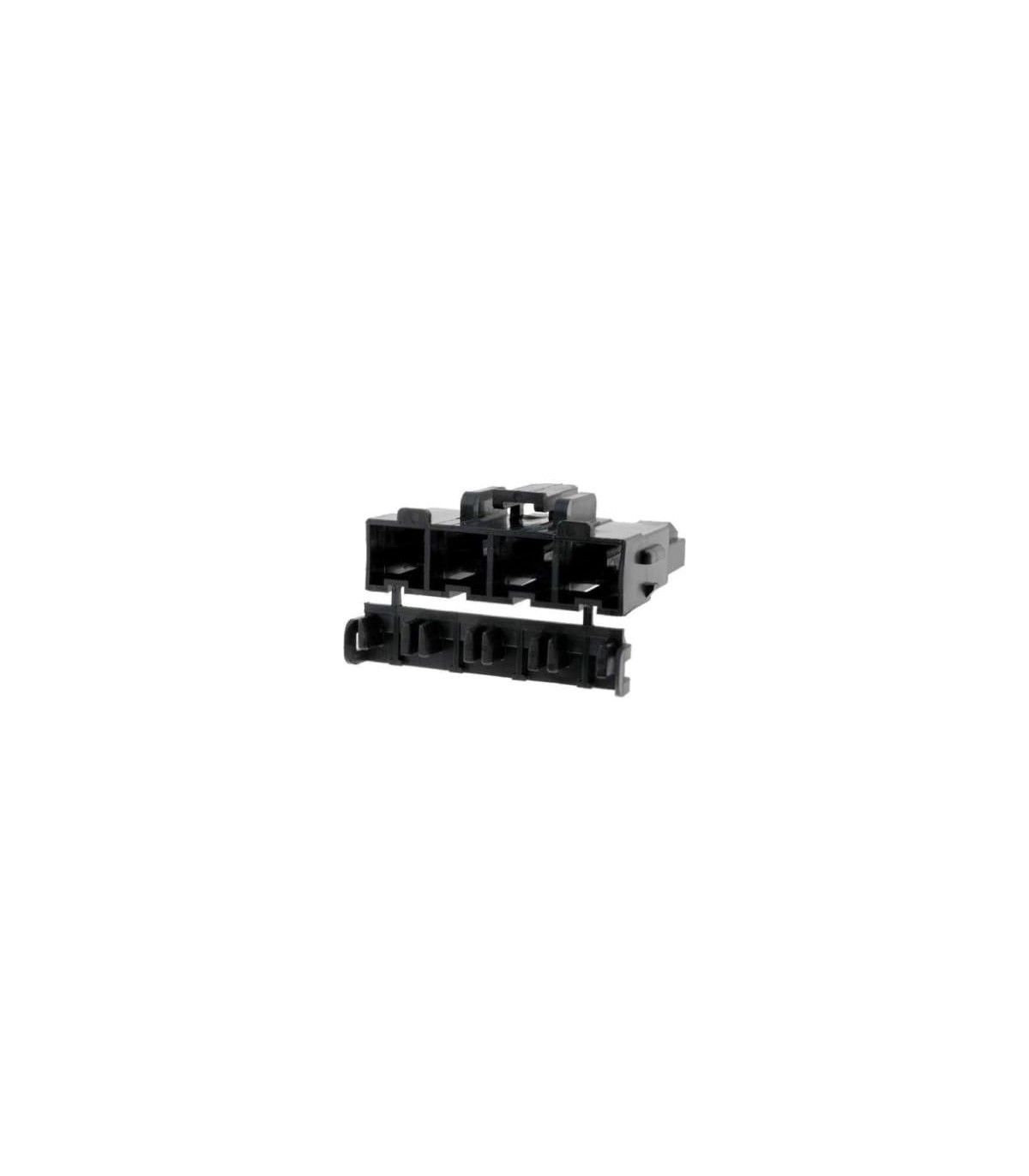

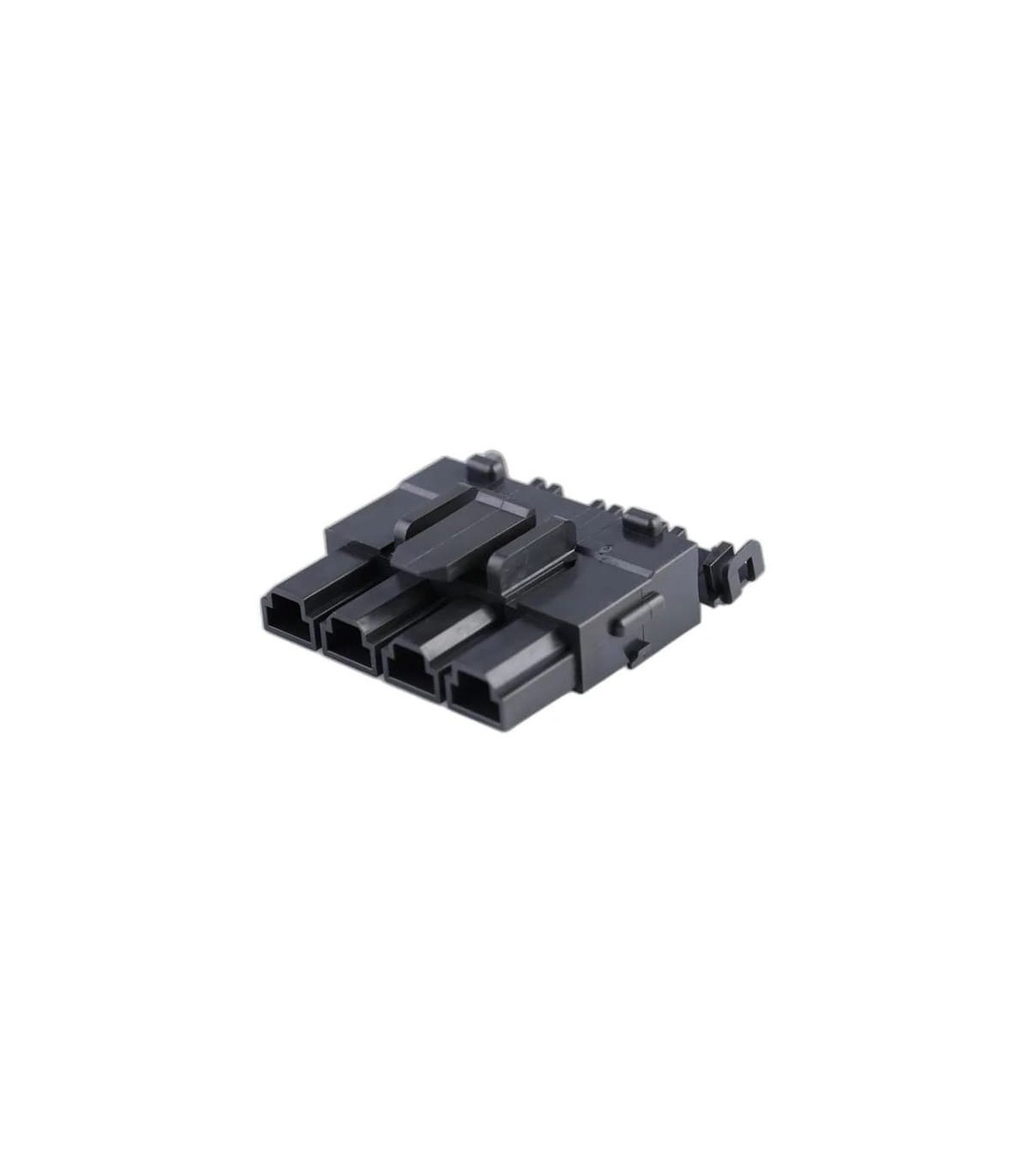

The 42816-0412 connector is a component of the Mini-Fit Sr. series, designed to create robust and tidy wire-to-wire / wire-to-board connections when, in addition to compact size, high current capacity and a secure connection against accidental disconnection are required.
It is widely used in power supply and power distribution applications in industrial environments, automation, electronic equipment and systems where contact continuity is critical.
The connector is a 4-circuit version with a 10.00 mm pitch, in black: a practical configuration when you need to carry supply and return (or multiple power lines) while keeping wiring clean and easy to inspect.
The pitch also helps manage larger cable sizes and reduces the risk of contacts being too close together in power applications.
Technical specifications
Family: Mini-Fit Sr. – 42816 series
Product type: connector housing
Gender: Male
Number of circuits: 4 positions
Number of rows: 1 row
Pitch: 10.00 mm
Termination: crimp
Color: black
Material: polyester
Flammability rating: UL 94V-0
Minimum operating temperature: -40°C
Maximum operating temperature: +105°C
Current rating: 50 A (depends on terminal, cable size and conditions)
