RBCTMFPCIEPF6V

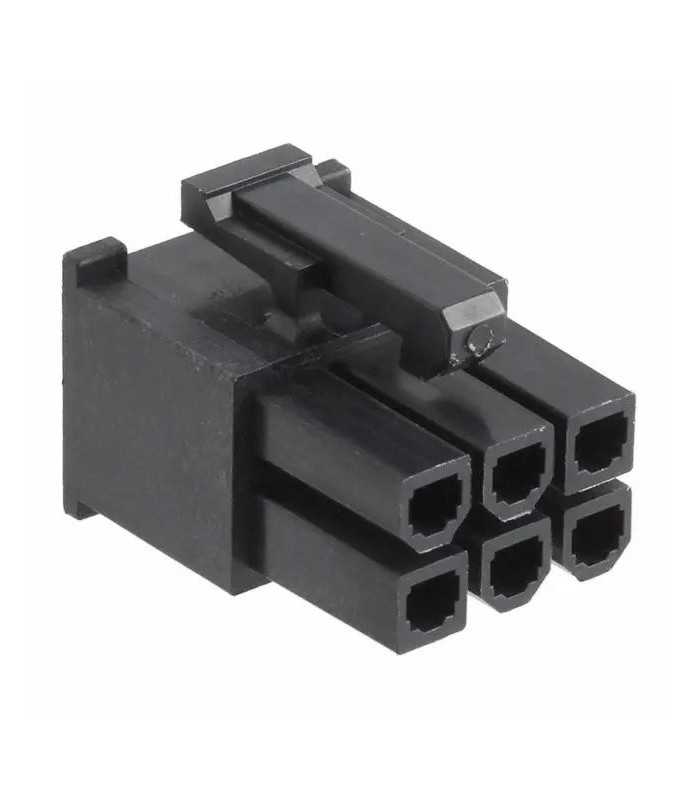

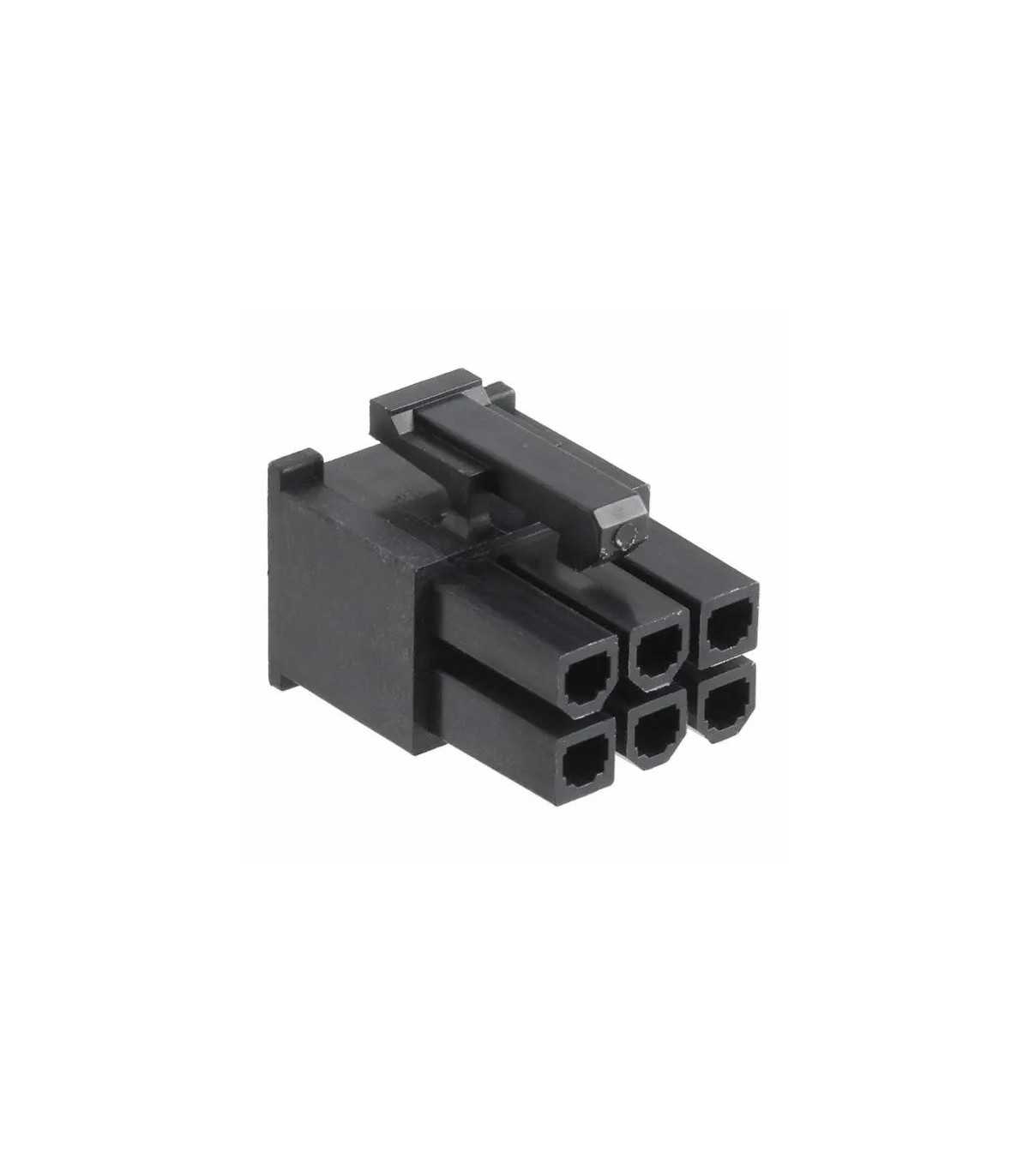

Connector Mini Fit PCIe Male 6 way

Errebi code: 26924
Producer code: Cross Reference 45559-0002
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.11 (tax excl.)
€0.13 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
40 €0.11 €1.07
60 €0.10 €2.01
100 €0.09 €4.70
260 €0.07 €15.70
500 €0.07 €33.55
1000 €0.06 €73.81
Available in stock 93 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTMNFTPCIEPF6V
Brand:
ErreBi Group
Add to wishlist(1)
Description
Product Name: Mini-Fit Jr.
Series: 45559
Circuits (maximum): 6
Number of Rows: 2
Color - Resin: Black
Material - Resin: Nylon
Flammability: 94V-0
Gender: Receptacle
Glow-Wire Capable: No
Lock to Mating Part: Yes
Panel Mount: No
Pitch - Mating Interface: 4.20mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range - Operating (°C): -40° to +105°
Read moreShow less
Product Details
RBCTMNFTPCIEPF6V

Data sheet

Product type
Connector body
Serie
Mini-Fit Jr. - 45559
Amperage
9A
Material
PA (Polyamide, Nylon)
Color
Black
IP rating
IP20
Operating temperature
-40°C to +105°C
Flammability
94V-0
Voltage
600V
Mounting
For cable
Kind
Male
Number of poles
6
Number of rows
2
Pitch
4.20 mm
Orientation
180°
Minimum order quantity
20
Unit Type
pieces

Specific References

UPC
822348196876
Attachments
026924_001_3D .pdf
Download (157.52KB)
026924_002_Drawing.pdf
Download (145.4KB)
