RBCTMNFT9X2PF

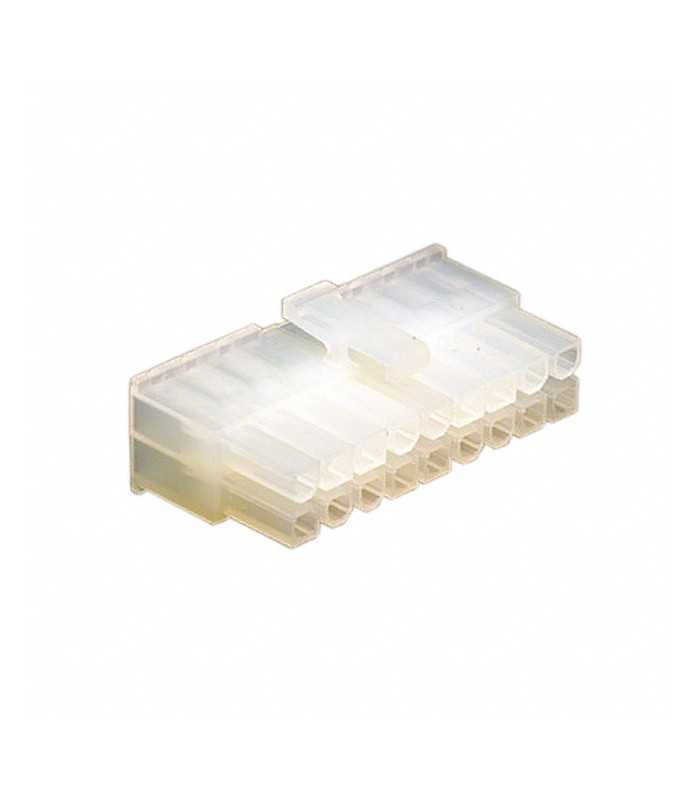

Mini Fit Connectors male 9X2 way

Mini Fit Connectors female 2 way
Errebi code: 15055
Producer code: Cross Reference 39-01-2180
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.30 (tax excl.)
€0.37 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €0.37 €0.00
10 €0.33 €0.36
25 €0.29 €1.83
50 €0.27 €4.58
100 €0.24 €12.85
250 €0.20 €41.13
500 €0.18 €91.50
1000 €0.16 €201.48
Available in stock 87 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMNFT9X2PF
Brand:
ErreBi Group
Add to wishlist
Description
Series: Mini-Fit Jr
No. of Positions: 18
Pitch Spacing: 4.2mm
For Use With: 5558, 44478, 30490, 41995 Series Connectors
Contact Resistance: 10mohm
Current rating: 13A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-2
Gender: Plug
Material: Clear nylon
No. of Rows: 2
Voltage Rating V AC: 250V
Working Voltage: 250V
Read moreShow less
Product Details
RBCTMNFT9X2PF

Data sheet

Product type
Connector body
Serie
Mini-Fit Jr. - 5557
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
250V
Mounting
For cable
Kind
Male
Number of poles
18
Number of rows
2
Pitch
4.20 mm
Minimum order quantity
5
Unit Type
pieces

Specific References

UPC
800753583986
Attachments
015055_001_3D .pdf
Download (159.21KB)
015055_002_Drawing.pdf
Download (243.7KB)
