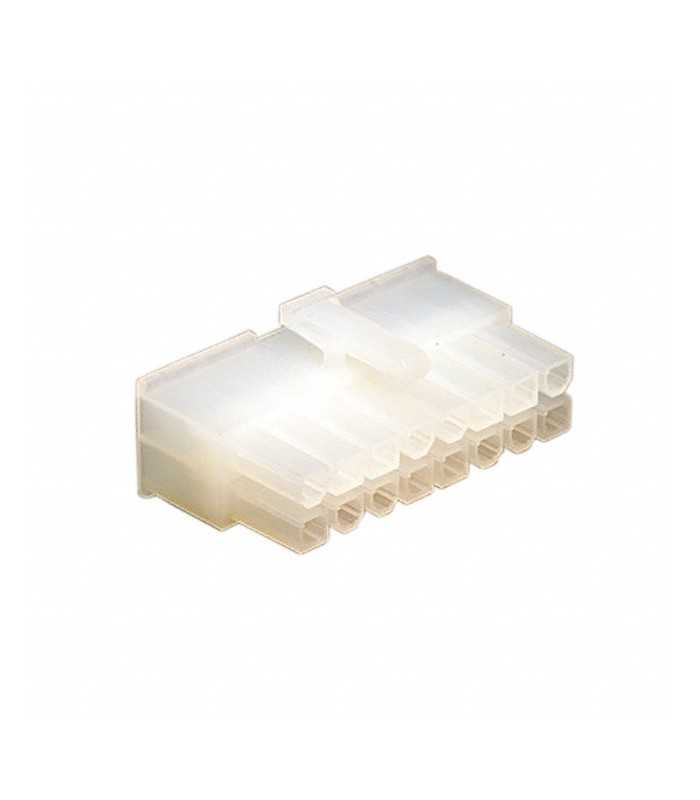

Mini Fit Connectors male 8x2 way

Errebi code: 14286
Producer code: Cross Reference 39-01-2160
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.25 (tax excl.)
€0.31

Discounts for quantities

Quantity Unit price You Save
6 €0.31 €0.00
12 €0.27 €0.36
30 €0.24 €1.83
54 €0.23 €4.12
102 €0.20 €10.92
252 €0.17 €34.55
504 €0.15 €76.86
1002 €0.14 €168.24
Available in stock 1211 Items
The minimum purchase order quantity for the product is 6.
Condition
New
Reference:
RBCTMNFT8X2PF
Add to wishlist
Description
Series: Mini-Fit Jr
No. of Positions: 16
Pitch Spacing: 4.2mm
For Use With: 5558, 44478, 30490, 41995 Series Connectors
Contact Resistance: 10mohm
Current rating: 13A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-2
Gender: Plug
Material: Clear nylon
No. of Rows: 2
Voltage Rating V AC: 250V
Working Voltage: 250V
Read moreShow less
Product Details
RBCTMNFT8X2PF

Data sheet

Product type
Connector body
Serie
Mini-Fit Jr. - 5557
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
250V
Mounting
For cable
Kind
Male
Number of poles
16
Number of rows
2
Pitch
4.20 mm
Minimum order quantity
6
Unit Type
pieces

Specific References

UPC
800753583962
