RBCTMNFT5X2PF

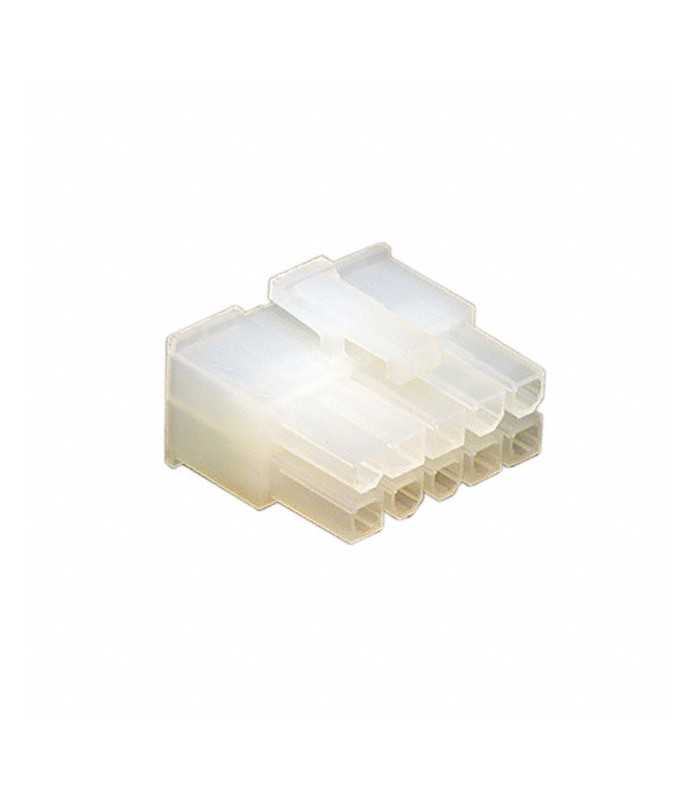

Mini Fit Connectors male 5X2 way

Errebi code: 14320
Producer code: Cross Reference 39-01-2100
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.14 (tax excl.)
€0.17 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
8 €0.17 €0.00
16 €0.15 €0.27
32 €0.14 €1.09
56 €0.13 €2.39
104 €0.11 €6.23
256 €0.09 €19.65
504 €0.09 €43.04
1000 €0.08 €94.03
Available in stock 1068 Items
The minimum purchase order quantity for the product is 8.
Condition
New
Reference:
RBCTMNFT5X2PF
Brand:
ErreBi Group
Add to wishlist
Description
Series: Mini-Fit Jr
No. of Positions: 10
Pitch Spacing: 4.2mm
For Use With: 5558, 44478, 30490, 41995 Series Connectors
Contact Resistance: 10mohm
Current rating: 13A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-2
Gender: Plug
Material: Clear nylon
No. of Rows: 2
Voltage Rating V AC: 250V
Working Voltage: 250V
Read moreShow less
Product Details
RBCTMNFT5X2PF

Data sheet

Product type
Connector body
Serie
Mini-Fit Jr. - 5557
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
250V
Mounting
For cable
Kind
Male
Number of poles
10
Number of rows
2
Pitch
4.20 mm
Minimum order quantity
8
Unit Type
pieces

Specific References

UPC
800753584365
Attachments
014320_001_3D .pdf
Download (216.01KB)
014320_002_Drawing.pdf
Download (238.1KB)
