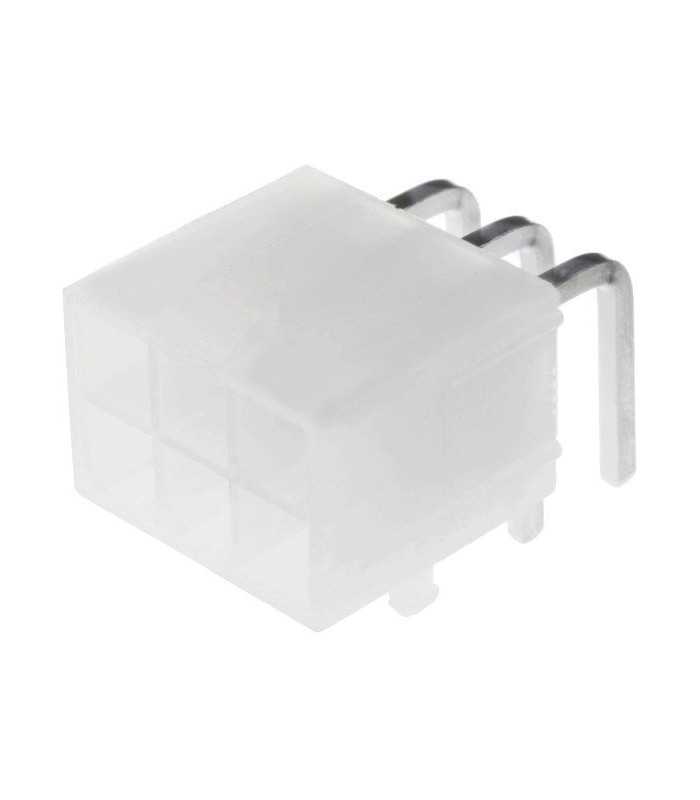

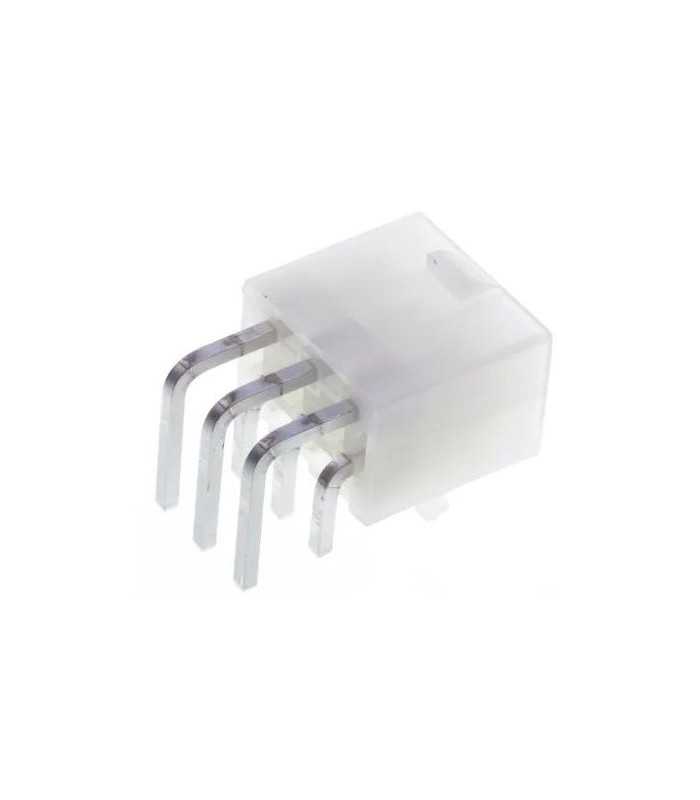

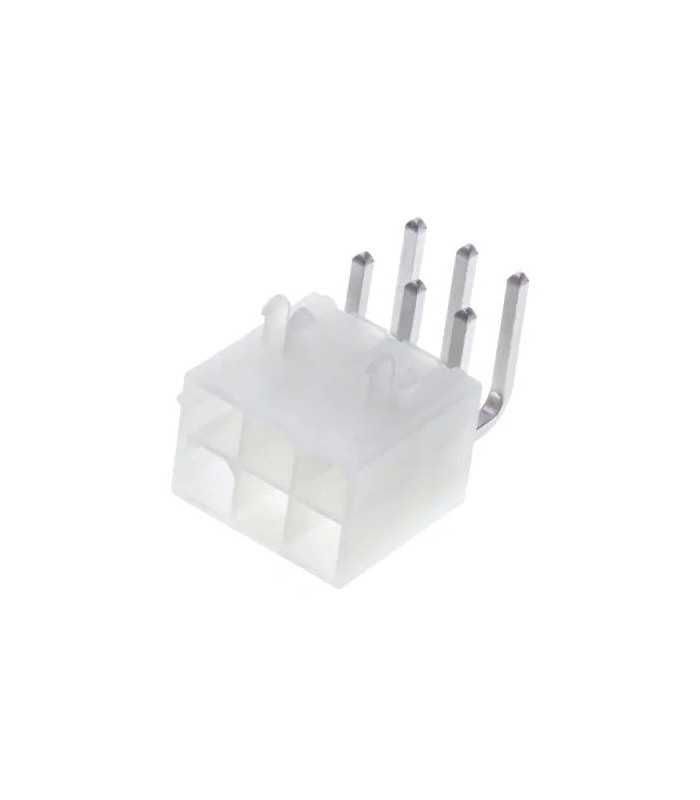

Mini Fit Connectors male 6 way PCB 90°

Errebi code: 10774
Producer code: Cross Reference 39-30-1060
Producer: Cross Reference Molex
Package: 3 pieces
Note: Quantity 1 corresponds to 3 pieces
€1.44 (tax excl.)
€1.76
(€0.59 / pcs)

Discounts for quantities

Quantity Price You Save
4 €1.58 Up to €0.69
9 €1.41 Up to €3.15
17 €1.32 Up to €7.47
34 €1.14 Up to €20.97
84 €0.97 Up to €66.33
167 €0.88 Up to €146.69
334 €0.79 Up to €323.02
Available in stock 72 Items
Condition
New product
Reference:
RBCTMNFT3X2M90G
Add to wishlist
Description
Contact Termination Type: Through Hole
Gender: Header
No. of Contacts: 6
No. of Rows: 2
Pitch Spacing: 4.2mm
Contact Plating: Tin
Contact Material: Brass
Approval Bodies: CSA, UL
Connector Mounting Orientation: PCB
Contact Termination: Through Hole Right Angle
Current rating: 13A
Flammability rating: UL94V-2
Material: Nylon
No. of Mating Cycles: 30
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Series: Mini-Fit Jr
Working Voltage: 600V
Product Details
RBCTMNFT3X2M90G

Data sheet

Product type
Connector
Serie
Mini-Fit Jr. - 5569
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
600V
Contact material
Brass
Mounting
Printed circuit
Kind
Male
Number of poles
6
Number of rows
2
Pitch
4.20 mm
Orientation
90°
Contact plating
Tin
