€1.78
(tax excl.)
€2.17
ErreBi code: 65575Producer code: Cross Reference 39-28-1223Producer: Cross Reference MolexPlease note: the item is a reproduction of the original, please contact us for more information.

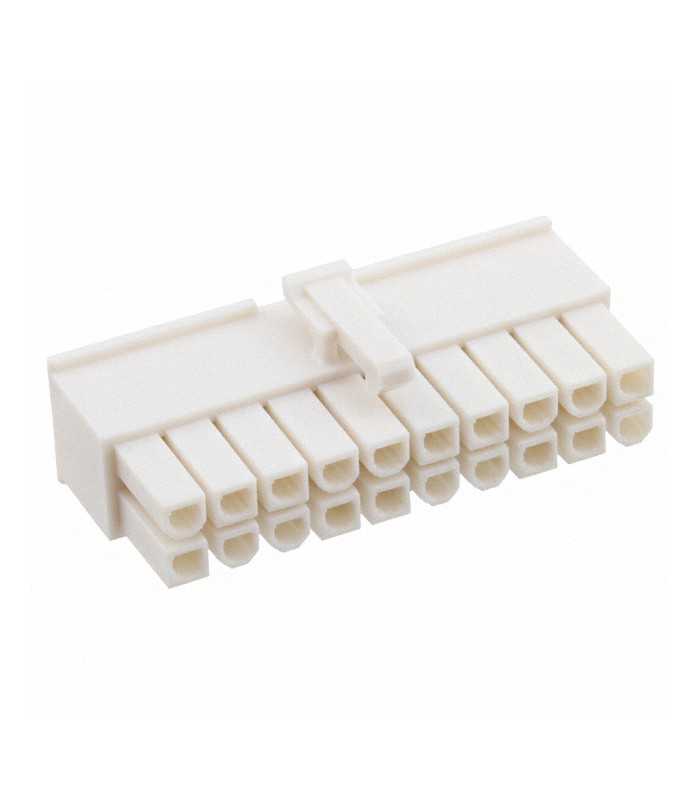

Mini Fit Connectors male 10X2 way
Errebi code: 13069
Producer code: Cross Reference 39-01-2200
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross Reference 39-01-2200
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
€0.33
(tax excl.)
€0.40
Condition
New
Reference:
RBCTMNFT10X2PF
Brand:
Add to wishlist
Series: Mini-Fit Jr
No. of Positions: 20
Pitch Spacing: 4.2mm
For Use With: Mini-Fit 5556 Series Female Crimp Terminals
Contact Resistance: 10mohm
Current rating: 13A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-2
Gender: Receptacle
Material: Clear nylon
No. of Rows: 2
Voltage Rating V AC: 250V
Working Voltage: 250V
Read moreShow less
No. of Positions: 20
Pitch Spacing: 4.2mm
For Use With: Mini-Fit 5556 Series Female Crimp Terminals
Contact Resistance: 10mohm
Current rating: 13A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-2
Gender: Receptacle
Material: Clear nylon
No. of Rows: 2
Voltage Rating V AC: 250V
Working Voltage: 250V
RBCTMNFT10X2PF
Data sheet
- Product type
- Connector body
- Serie
- Mini-Fit Jr. - 5557
- Amperage
- 13A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- IP rating
- IP20
- Operating temperature
- -40°C to +105°C
- Flammability
- 94V-2
- Voltage
- 250V
- Mounting
- For cable
- Kind
- Male
- Number of poles
- 20
- Number of rows
- 2
- Pitch
- 4.20 mm
- Orientation
- 180°
- Minimum order quantity
- 5
- Unit Type
- pieces
Specific References
- UPC
- 800753584013
