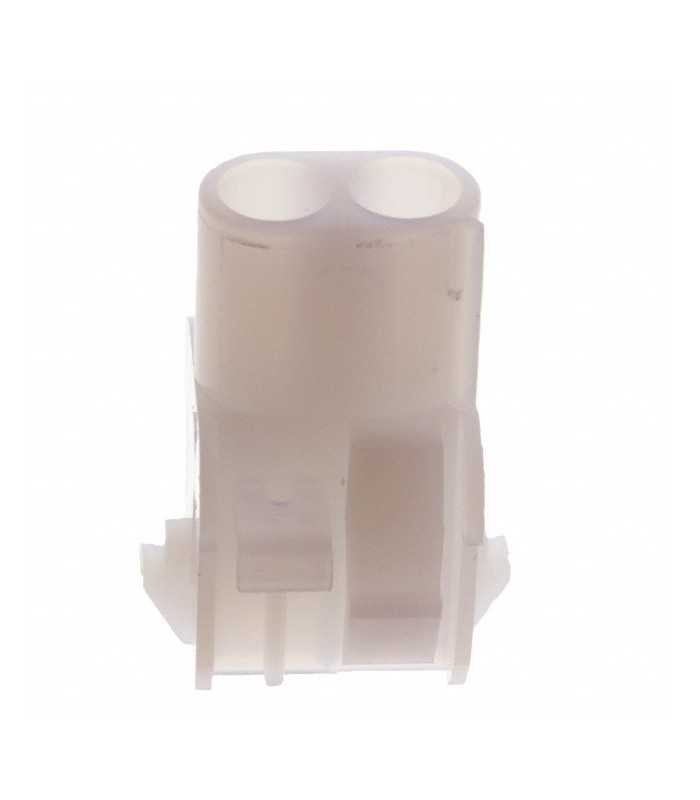

Mate n lok connector female 2 way

The Universal MATE-N-LOK series connector is designed for electrical and industrial applications requiring reliable, robust and secure connections even in the presence of high operating voltages.
Thanks to the 2-position single-row configuration, the connector allows simple and efficient management of electrical connections while maintaining compact dimensions and ease of installation.
The high-strength nylon structure ensures good mechanical robustness, dimensional stability and long-term reliability even in demanding working environments.
The Universal MATE-N-LOK series is widely used in industrial equipment, power systems, automation, household appliances, professional wiring and electronic applications where a stable and durable connection is required.
The 6.35 mm pitch ensures proper insulation between contacts and makes the connector suitable for applications with operating voltages up to 600V.
The high dielectric strength ensures excellent electrical protection, while the low contact resistance helps improve connection efficiency.
The receptacle system with panel mounting facilitates installation, maintenance and replacement operations, ensuring stable and secure fixing inside electrical panels and industrial equipment.
CSA, UL and VDE certifications confirm compliance with international safety and quality standards.
Thanks to the wide operating temperature range and good mechanical resistance, the connector can also be used in environments subject to significant temperature variations.

MAIN ADVANTAGES
- High reliability for industrial and electrical applications
- Robust high-strength nylon structure
- Compact 2-position configuration
- Suitable for operating voltages up to 600V
- High dielectric strength
- Low contact resistance
- Stable and secure connection
- Receptacle system for panel mounting
- Good thermal and mechanical resistance
- Easy installation and maintenance
- Compatible with Universal MATE-N-LOK series connectors
- CSA, UL and VDE certifications

MAIN APPLICATIONS
- Industrial wiring
- Power systems
- Industrial automation
- Electrical equipment
- Household appliances
- Professional electronic systems
- Electrical panels
- Wire-to-wire connections
- Panel connections

TECHNICAL FEATURES
Series: Universal MATE-N-LOK
Type: receptacle / female connector
Number of positions: 2
Number of rows: 1
Pitch: 6.35 mm
Compatible with: Universal MATE-N-LOK connectors
Material: nylon
Color: transparent
Contact resistance: 3.5 mO
Current rating: 15 A
Dielectric strength VAC: 5000 V
Dielectric strength VDC: 10000 V
Flammability rating: UL94V-2
Insulation resistance: 1000 MO
Mating cycles: 50
Voltage rating: 600 VAC
Working voltage: 600 V
Maximum panel thickness: 2.29 mm
Minimum panel thickness: 0.76 mm
Maximum operating temperature: 105 °C
Minimum operating temperature: -55 °C
Certifications: CSA, UL, VDE
Gender: receptacle
