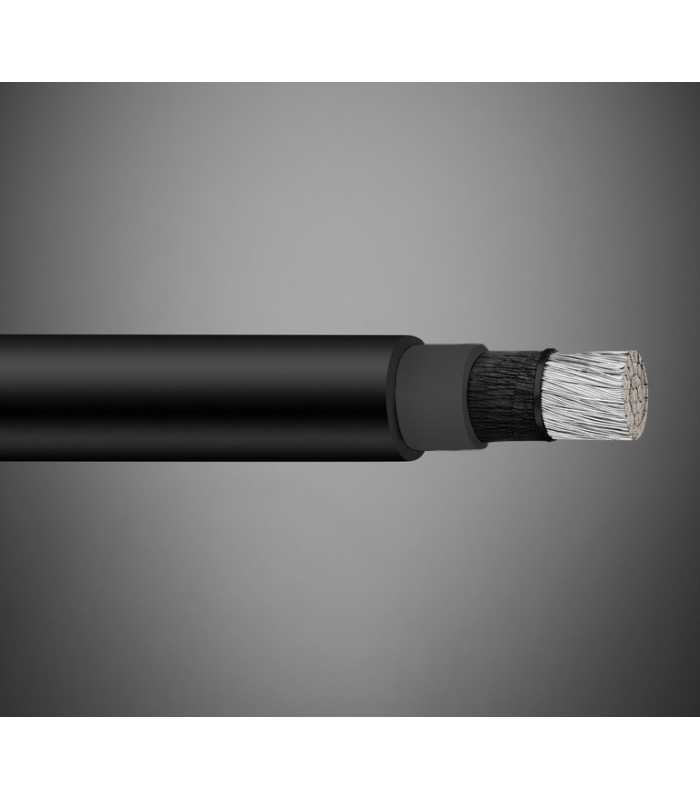

EN50264-2-1 600V wire unipolar cable section 1 mmq
Errebi code: 14172
Price for meter
Read moreShow lessPrice for meter
€1.40
(tax excl.)
€1.71
(tax incl.)
Condition
New
Reference:
RBCV1EN50264-2NR
Brand:
Add to wishlist
Standard Reference
EN 50264, EN 50305, EN 50355, EN 50343, DIN 5510, UNI 11170, NFPA 130, CEN-TS 45545-2
Electrical Resistance at 20°C
IEC 60228 Class 5
Insulation Resistance at 20°C
EN 50305 6.4.1
Maximum Conductor Temperature for Short Circuit
200°C for 5 seconds
Minimum Bending Radius
5 x Ø (unscreened)
10 x Ø (screened)
Temperature Range
-40°C ÷ + 90°C acc.to Code Designations
-25°C ÷ + 90°C acc.to Code Designations
Test on cables and materials
The electrical, physical and mechanical tests are compliant with the prescription of rule EN 50264-1.
Read moreShow less
EN 50264, EN 50305, EN 50355, EN 50343, DIN 5510, UNI 11170, NFPA 130, CEN-TS 45545-2
Electrical Resistance at 20°C
IEC 60228 Class 5
Insulation Resistance at 20°C
EN 50305 6.4.1
Maximum Conductor Temperature for Short Circuit
200°C for 5 seconds
Minimum Bending Radius
5 x Ø (unscreened)
10 x Ø (screened)
Temperature Range
-40°C ÷ + 90°C acc.to Code Designations
-25°C ÷ + 90°C acc.to Code Designations
Test on cables and materials
The electrical, physical and mechanical tests are compliant with the prescription of rule EN 50264-1.
RBCV1EN50264-2NR
Data sheet
- Product type
- Cable EN50264-2-1
- Voltage
- 600V
- Operating temperature min.
- -40°C
- Operating temperature max.
- +90°C
- Insulation material
- LS0H (Low Smoke Zero Halogen)
- Conductor (Material)
- tinned copper
- Cable section mmq
- 1.00 mmq
- Type of employment
- Railway Systems
- Minimum order quantity
- 2
- Unit Type
- metres
