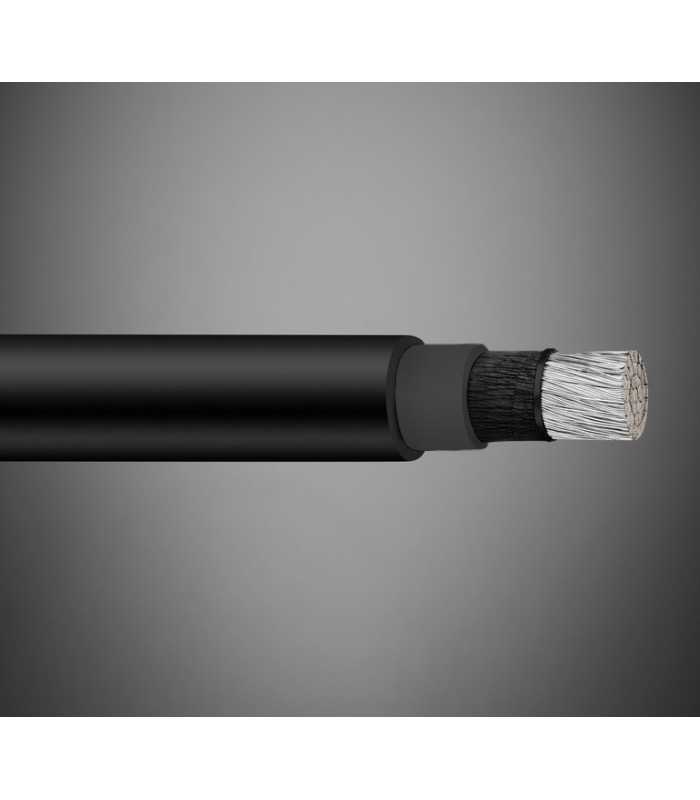

EN50264-2-1 600V draht unipolar kabel abschnitt 1 mmq
ErreBi code: 14172
Verkauf ein meter
Read moreShow lessVerkauf ein meter
1,13 €
(tax excl.)
1,38 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCV1EN50264-2NR
Marke:
Zur Wunschliste hinzufügen
Standard Reference
EN 50264, EN 50305, EN 50355, EN 50343, DIN 5510, UNI 11170, NFPA 130, CEN-TS 45545-2
Electrical Resistance at 20°C
IEC 60228 Class 5
Insulation Resistance at 20°C
EN 50305 6.4.1
Maximum Conductor Temperature for Short Circuit
200°C for 5 seconds
Minimum Bending Radius
5 x Ø (unscreened)
10 x Ø (screened)
Temperature Range
-40°C ÷ + 90°C acc.to Code Designations
-25°C ÷ + 90°C acc.to Code Designations
Test on cables and materials
The electrical, physical and mechanical tests are compliant with the prescription of rule EN 50264-1.
Read moreShow less
EN 50264, EN 50305, EN 50355, EN 50343, DIN 5510, UNI 11170, NFPA 130, CEN-TS 45545-2
Electrical Resistance at 20°C
IEC 60228 Class 5
Insulation Resistance at 20°C
EN 50305 6.4.1
Maximum Conductor Temperature for Short Circuit
200°C for 5 seconds
Minimum Bending Radius
5 x Ø (unscreened)
10 x Ø (screened)
Temperature Range
-40°C ÷ + 90°C acc.to Code Designations
-25°C ÷ + 90°C acc.to Code Designations
Test on cables and materials
The electrical, physical and mechanical tests are compliant with the prescription of rule EN 50264-1.
RBCV1EN50264-2NR
Technische Daten
- Produktart
- Kabel EN50264-2-1
- Spannung
- 600V
- Betriebstemperatur min.
- -40°C
- Betriebstemperatur max.
- +90°C
- Dämm Material
- LS0H (Low Smoke Zero Halogen)
- Leiter (Material)
- Zinnkupfer
- Kabelquerschnitt mmq
- 1.00 mmq
- Art der Anstellung
- Eisenbahnsysteme
- Mindestbestellmenge
- 2
- Maßeinheit
- meter
