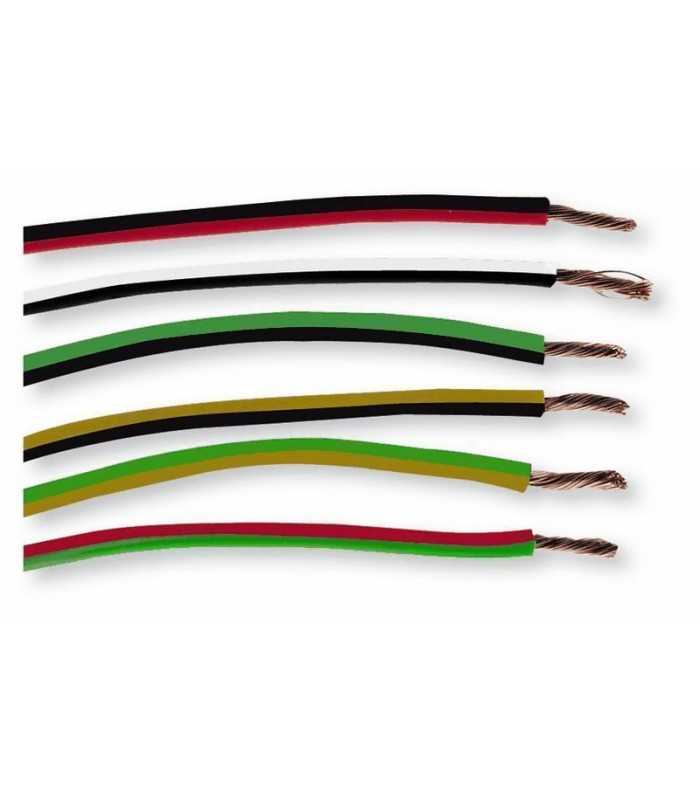

Cable Unipolar Wire N07V-K sec. 1,00 mmq White/Red

ErreBi code: 18319
Price for meter:5
Note: the item is sold in the meter continues.
Example: If you buy quantity 3, you will receive one continuous length of 15MT
Read more
€1.70 (tax excl.)
€2.07
(€0.41 / m)

Discounts for quantities

Quantity Unit price You Save
3 €1.87 €0.61
6 €1.94 €0.79
11 €1.87 €2.25
21 €1.35 €15.29
26 €1.66 €10.76
51 €1.56 €26.44
101 €1.35 €73.53
201 €1.05 €205.14
251 €1.14 €234.00
501 €1.04 €519.54
1001 €0.93 €1,142.88
Available in stock 1065 Items
Condition
New product
Reference:
RBCV1N07BNRO
Description
Nominal voltage Uo/U: 450/750 V
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Read more
Product Details
RBCV1N07BNRO

Data sheet

Color
White/Red
external diameter
2.50 mm
Voltage
750V
Operating temperature min.
-10°C
Operating temperature max.
+70°C
Insulation material
PVC
Conductor (Material)
Electrolytic Copper
Cable section mmq
1.00 mmq
Number of strands
32
Size of the strands
0.193 mm
Shielding
No
Voltage test
2500V
Flame resistance
CEI EN 60332-1-2
Type of employment
Internal Wiring
Resistance of the conductor
<= 19.5 Ohm/Km
Product type
Cable H07V-K
