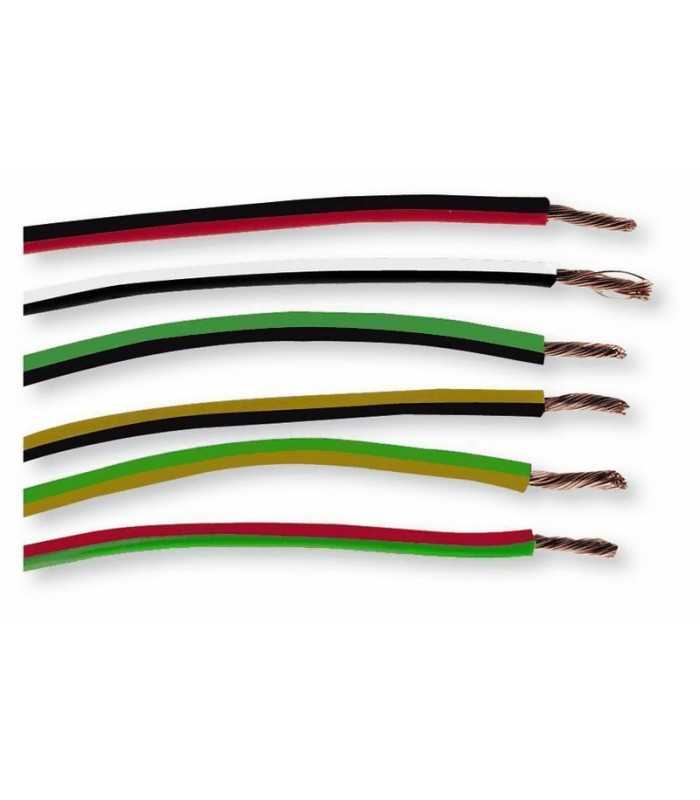

Câble Fil Unipolaire N07V-K sec. 1,00 mmq Blanc/Rouge
Code ErreBi: 18319
Vendu au mètre
Lire la suiteShow lessVendu au mètre
0,46 €
(tax excl.)
0,56 €
Condition
Neuf
Référence:
RBCVN071BNRO
Marque:
Ajouter à la liste de souhaits
Nominal voltage Uo/U: 450/750 V
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Lire la suiteShow less
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
RBCVN071BNRO
Data sheet
- Type de produit
- Câble H07V-K
- Couleur
- Blanc/Rouge
- Diamètre externe
- 2.50 mm
- Voltage
- 750V
- Température de fonctionnement min.
- -10°C
- Température de fonctionnement max.
- +70°C
- Matériau d'isolation
- PVC
- Conducteur (matériel)
- Cuivre Electrolytique
- Section de câble mmq
- 1.00 mmq
- Nombre de brins
- 32
- Taille des brins
- 0.193 mm
- Blindage
- Non
- Test de tension
- 2500V
- Résistance à la flamme
- CEI EN 60332-1-2
- Type d'emploi
- Câblage Interne
- Résistance du conducteur
- <= 19.5 Ohm/Km
- Minimale commande
- 5
- Unité de mesure
- mètres
