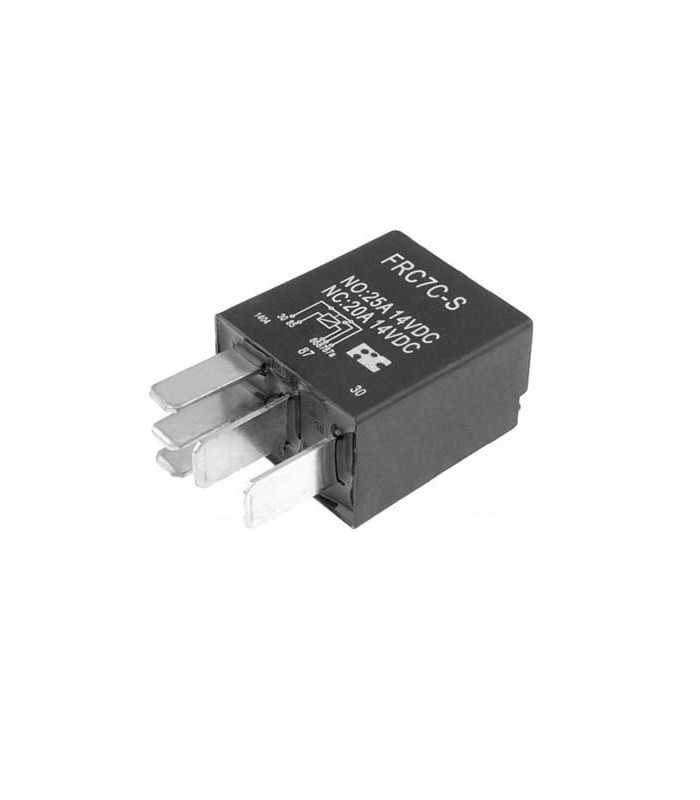

Mini relays ISO SPDT 12VDC 25A

Mini relays ISO SPDT 12VDC 25A

Errebi code: 58083
Producer code: FRC7C-S-DC12V
Producer: FORWARD
Read moreShow less
€4.07 (tax excl.)
€4.97 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €4.48 €4.90
25 €3.97 €24.76
50 €3.72 €62.07
100 €3.22 €174.29
250 €2.73 €557.99
500 €2.48 €1,241.35
1000 €2.23 €2,733.45
'Available in 20 working days from the order.'
Condition
New
Reference:
RBRA12V25AC
Brand:
FORWARD
Add to wishlist
Description
Contact configuration: SPDT
Coil rated voltage: 12V DC
Maximum current per contact: 25A
DC load capacity @R: (with resistance load) 20A / 14V DC
Coil resistance: 96O
Working temperature: -40 +85°C
External dimensions: 15.5x23x26mm
Coil power draw: 1.5W
Relay series: FRC7
Contact resistance: 50mO
Outputs: 4.8x0.8mm connectors, 6.4x0.8mm connectors
Coil current: 124mA
Intervention time: 10ms
Release time: 7ms
Switching voltage: max. 14V DC
Read moreShow less
Product Details
RBRA12V25AC

Data sheet

Minimum order quantity
1
Unit Type
piece
Attachments
058083_001_DATASHEET.pdf
Download (121.61KB)
