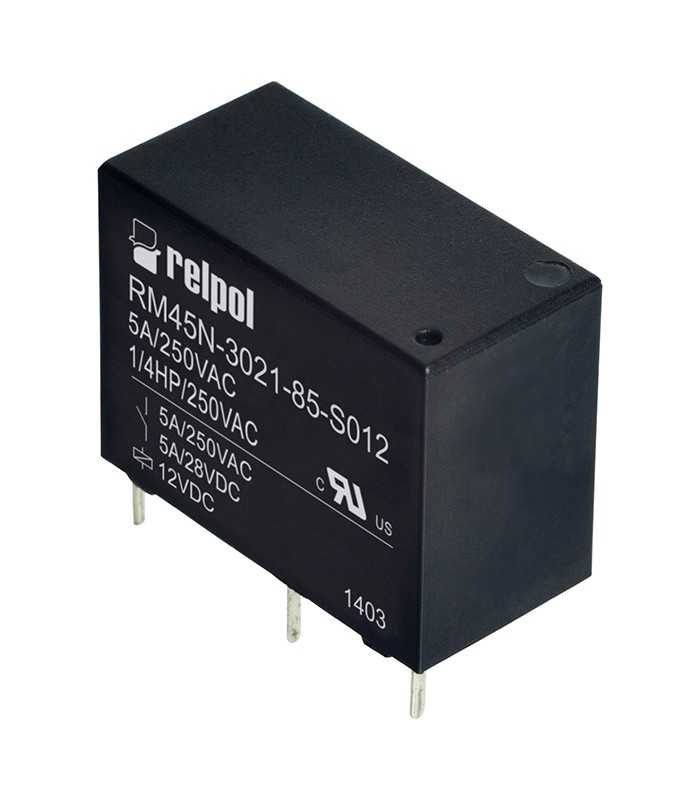

Electromagnetic relay SPST-NO 12V 5A PCB

Electromagnetic relay SPST-NO 12V 5A PCB

Errebi code: 30781
Producer code: RM45N-3021-85-S012
Producer: Relpol

€3.58 (tax excl.)

€4.37 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
10	€3.94	€4.31
25	€3.50	€21.78
50	€3.28	€54.60
100	€2.83	€153.30
250	€2.40	€490.81
500	€2.18	€1,091.90
1000	€1.96	€2,404.36

Available in stock 173 Items

Condition

New

Reference:

RBRESPST12V5AR

Brand:

Relpol

Add to wishlist

Description

Manufacturer: Relpol
Relay type: electromagnetic
Nominal coil voltage: 12V DC
Maximum current per contact: 10A
AC load capacity @R: (with resistance load): 5A / 250V AC
DC load capacity @R: (with resistance load): 5A / 30V DC
Switching voltage: max. 30V DC, max. 250V AC
Mounting: PCB
Coil resistance: 320O
Minimum coil voltage: 9V DC
Max. coil voltage: 15.6V DC
Trip time: 8ms
External dimensions: 20.5x15.3x10.2mm
Release time: 5ms
Coil power consumption: 450mW
Working temperature: -40...70°C
Contact resistance: 100mO
Contact material: AgCdO
Lead spacing: 7.6mm
