1,29 €
(tax excl.)
1,57 €
TTC
Code ErreBi: 54961Code Producteur: LEG1A-24Producteur: RAYEX

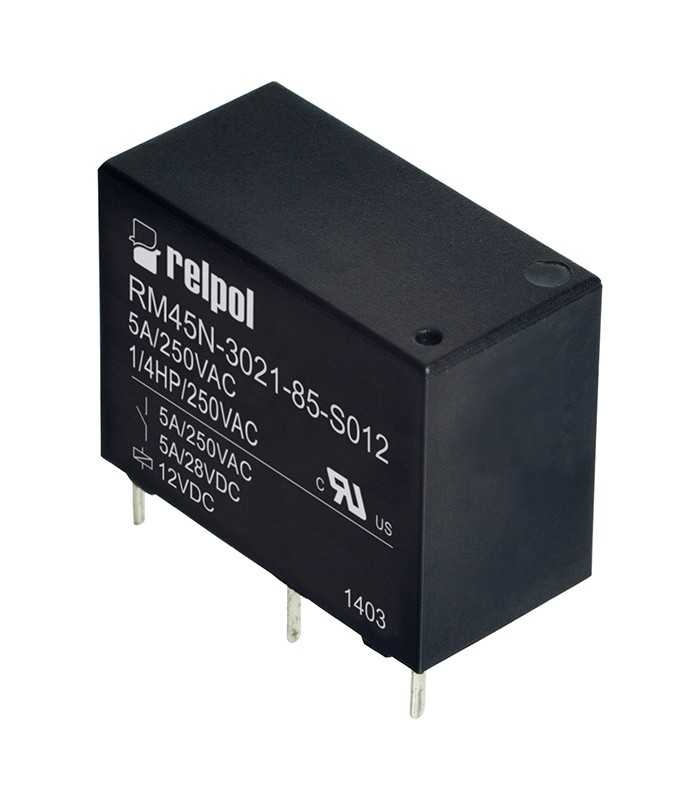

Relais électromagnétique SPST-NO 12V 5A PCB
Code ErreBi: 30781
Code Producteur: RM45N-3021-85-S012
Producteur: Relpol
Lire la suiteShow lessCode Producteur: RM45N-3021-85-S012
Producteur: Relpol
4,44 €
(tax excl.)
5,42 €
TTC
Condition
Neuf
Référence:
RBRESPST12V5AR
Marque:
Ajouter à la liste de souhaits
Manufacturer: Relpol
Relay type: electromagnetic
Nominal coil voltage: 12V DC
Maximum current per contact: 10A
AC load capacity @R: (with resistance load): 5A / 250V AC
DC load capacity @R: (with resistance load): 5A / 30V DC
Switching voltage: max. 30V DC, max. 250V AC
Mounting: PCB
Coil resistance: 320O
Minimum coil voltage: 9V DC
Max. coil voltage: 15.6V DC
Trip time: 8ms
External dimensions: 20.5x15.3x10.2mm
Release time: 5ms
Coil power consumption: 450mW
Working temperature: -40...70°C
Contact resistance: 100mO
Contact material: AgCdO
Lead spacing: 7.6mm
Lire la suiteShow less
Relay type: electromagnetic
Nominal coil voltage: 12V DC
Maximum current per contact: 10A
AC load capacity @R: (with resistance load): 5A / 250V AC
DC load capacity @R: (with resistance load): 5A / 30V DC
Switching voltage: max. 30V DC, max. 250V AC
Mounting: PCB
Coil resistance: 320O
Minimum coil voltage: 9V DC
Max. coil voltage: 15.6V DC
Trip time: 8ms
External dimensions: 20.5x15.3x10.2mm
Release time: 5ms
Coil power consumption: 450mW
Working temperature: -40...70°C
Contact resistance: 100mO
Contact material: AgCdO
Lead spacing: 7.6mm
RBRESPST12V5AR
Data sheet
- Minimale commande
- 1
- Unité de mesure
- pièce
Specific References
- EAN-13
- 2050001881212
