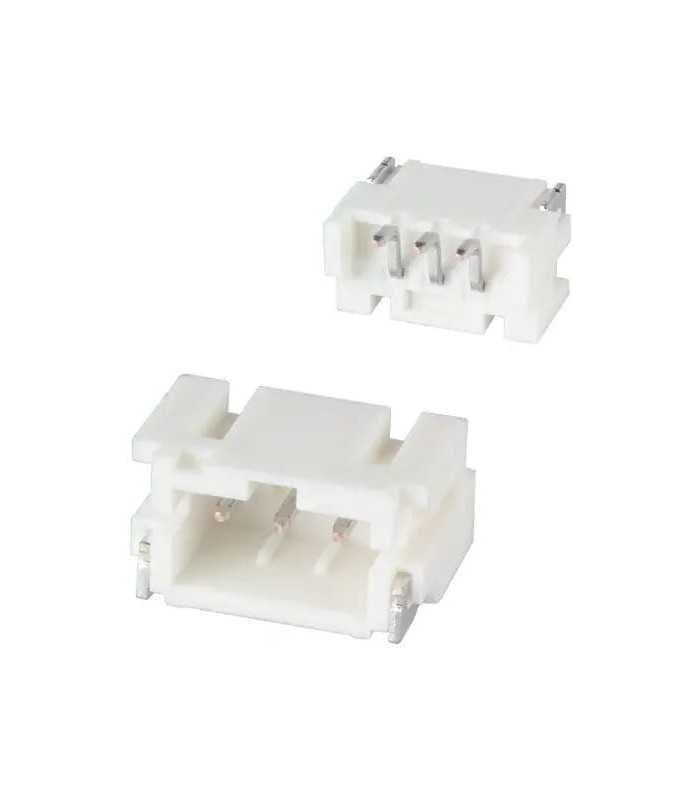

Connector PH female 3 way PCB 90°

Manufacturer: JST Sales America Inc.
Series: PH
Component status: Active
Connector Type: Base
Contact Type: Male Brooch
Pitch: 2.00 mm
No. of positions: 3
No. of rows: 1
Mounting Type: Right Angle Surface Mount
Contact Length - Coupling: 3.30mm
Insulator height: 5.51mm
Contact material: Copper alloy
Insulating material: Polyamide (PA6T), 6T nylon
Features: Welding control
Operating temperature: -25 ° C ~ 85 ° C
Flammability class of the material: UL94 V-0
Insulator color: Natural
Rated current (A): 2A
Rated voltage: 100V
