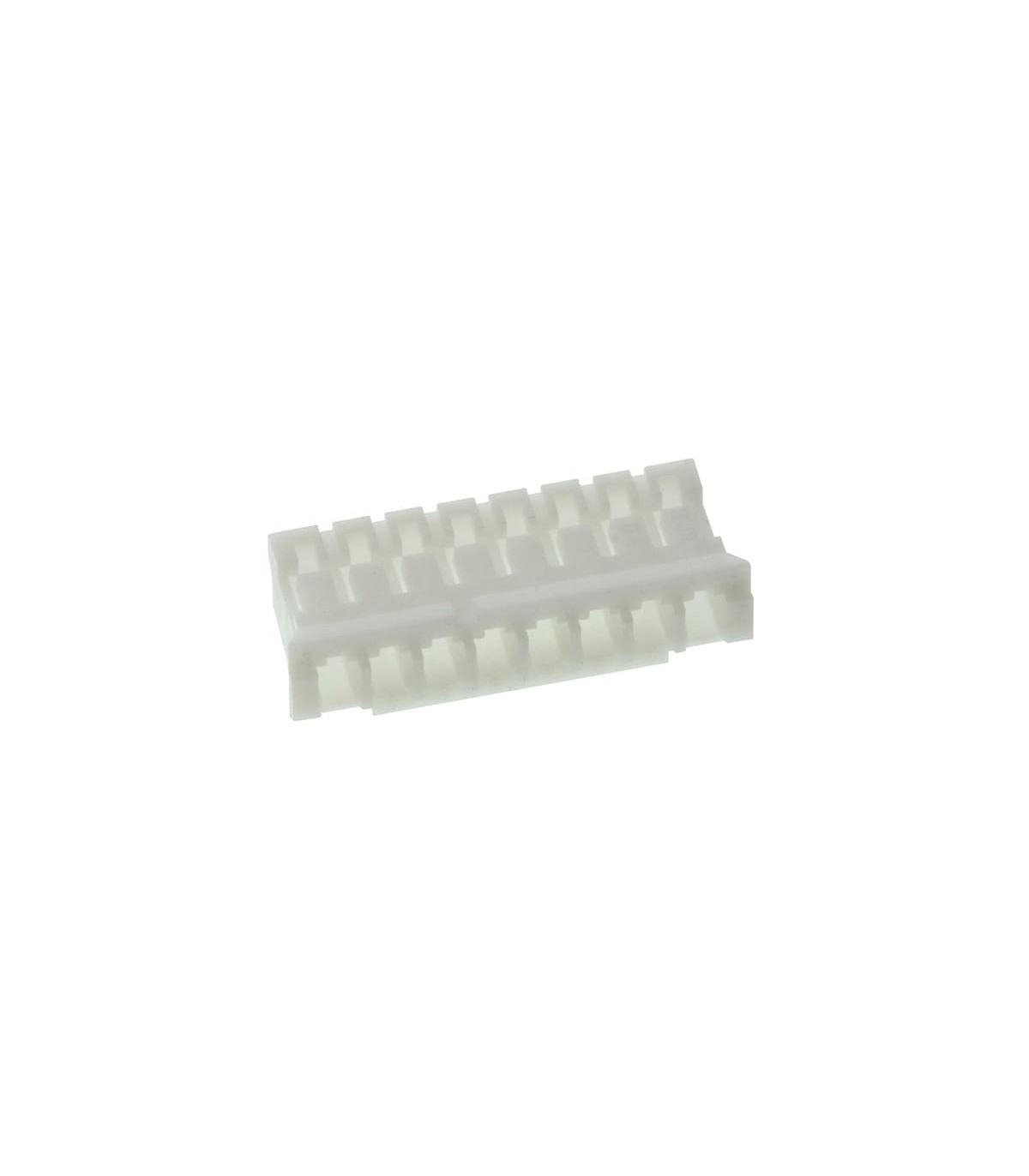

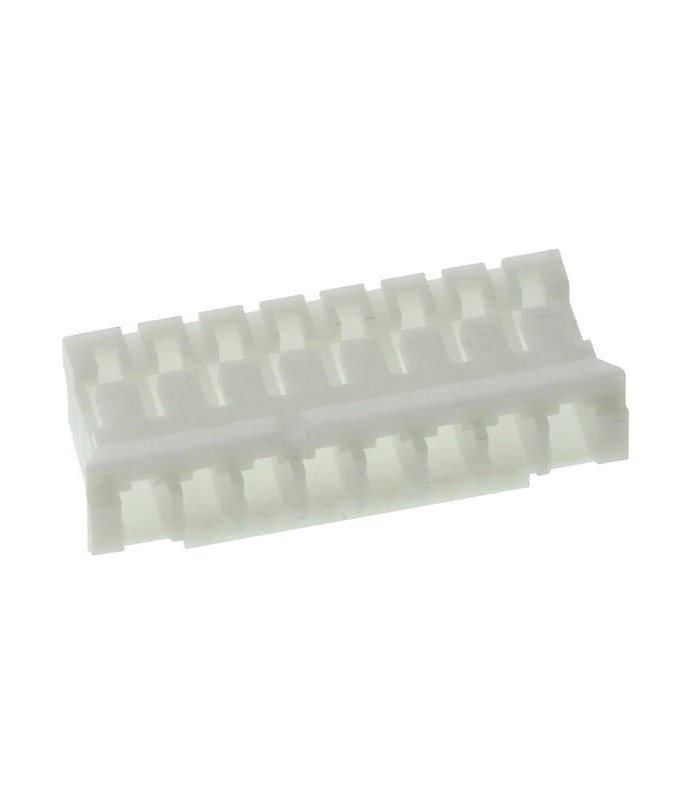

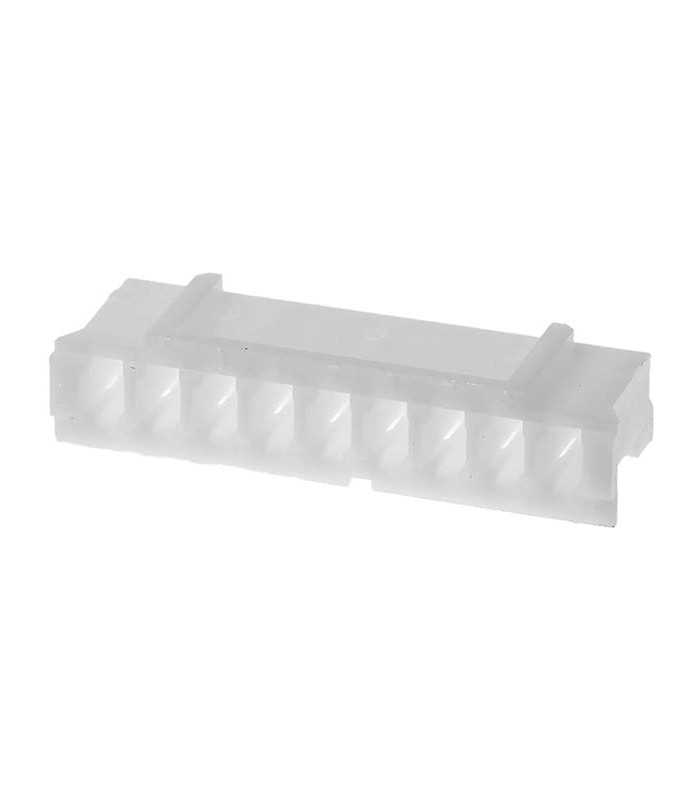

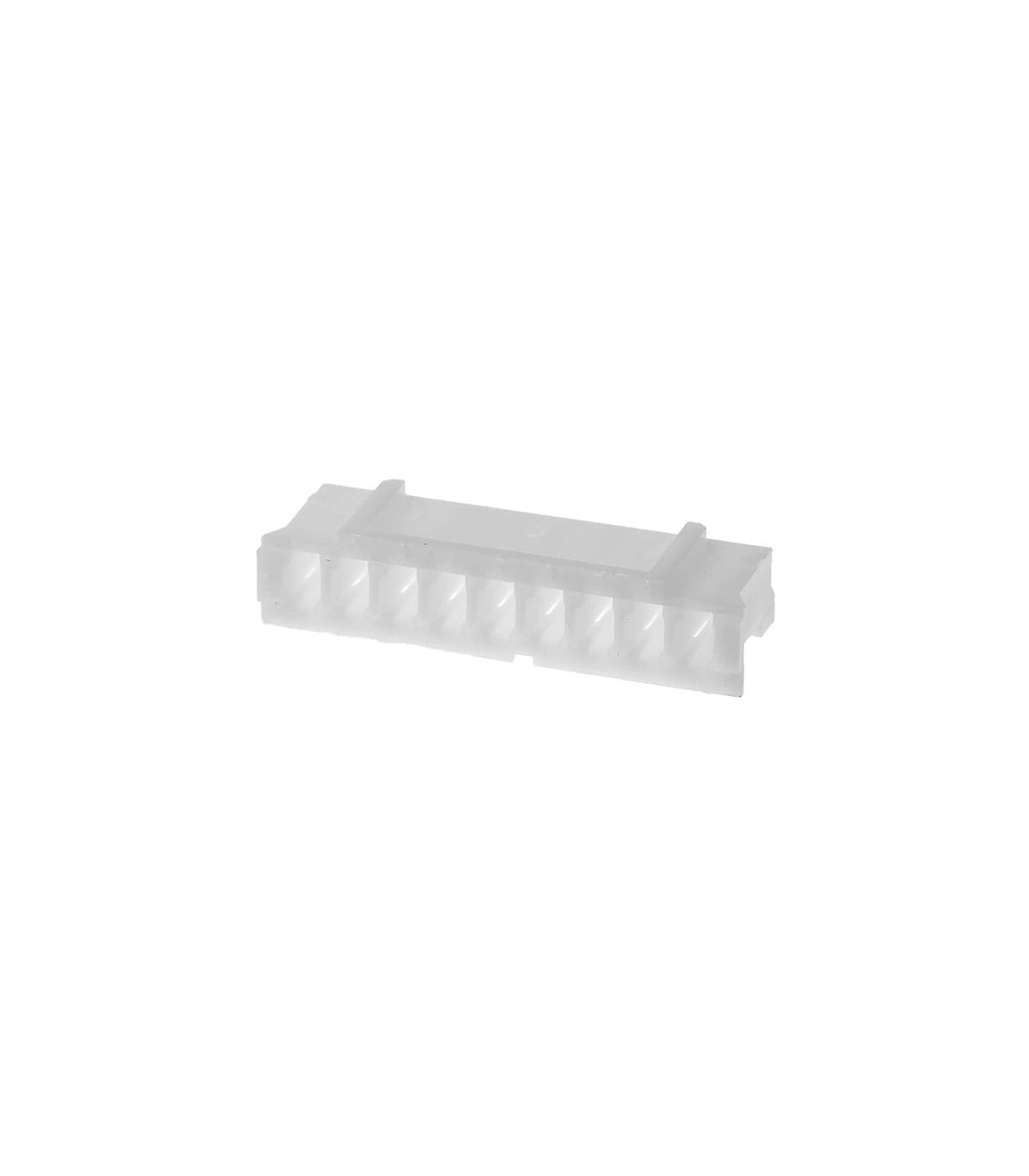

Connector PHR Step 2.00 mm Female 9 Way
Connector PHR Step 2.00 mm Female 9 Way
Connector PHR Step 2.00 mm Female 9 Way
Connector PHR Step 2.00 mm Female 9 Way

Connector PHR Step 2.00 mm Female 9 Way

Errebi code: 65727
Producer code: PHR-9
Producer: Japan Solderless Terminals
Read moreShow less
€0.11 (tax excl.)
€0.13 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
40 €0.11 €1.07
60 €0.10 €2.01
100 €0.09 €4.70
260 €0.07 €15.70
500 €0.07 €33.55
1000 €0.06 €73.81
Available in stock 4769 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTPHRPF9VJ
Brand:
Japan Solderless Terminals
Add to wishlist
Description
Manufacturer: JST
Number of positions: 9 positions
Pitch: 2 mm
Number of rows: 1 row
Termination style: Crimp
Mounting angle: Straight
Apply contact type: Female
Contact plating: Tin
Wire diameter: 30 AWG to 24 AWG
Minimum operating temperature: - 25 °C
Maximum operating temperature: + 85 °C
Contact material: Copper
Current rating: 1 A
Housing color: Natural
Housing material: Polyamide (PA)
Voltage rating: 50 VAC/DC
Read moreShow less
Product Details
RBCTPHRPF9VJ

Data sheet

Product type
Connector body
Serie
PHR
Amperage
1A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-25°C a +85°C
Flammability
94V-0
Voltage
50V
Contact material
Copper
Mounting
On cable
Kind
Female
Number of poles
9
Number of rows
1
Pitch
2.00 mm
Orientation
180°
Contact plating
Tin
Minimum order quantity
20
Unit Type
pieces
Attachments
065727_001_DATASHEET.pdf
Download (116.17KB)
