Errebi code: 37869Producer code: 281838-6Producer: TE/connectivity

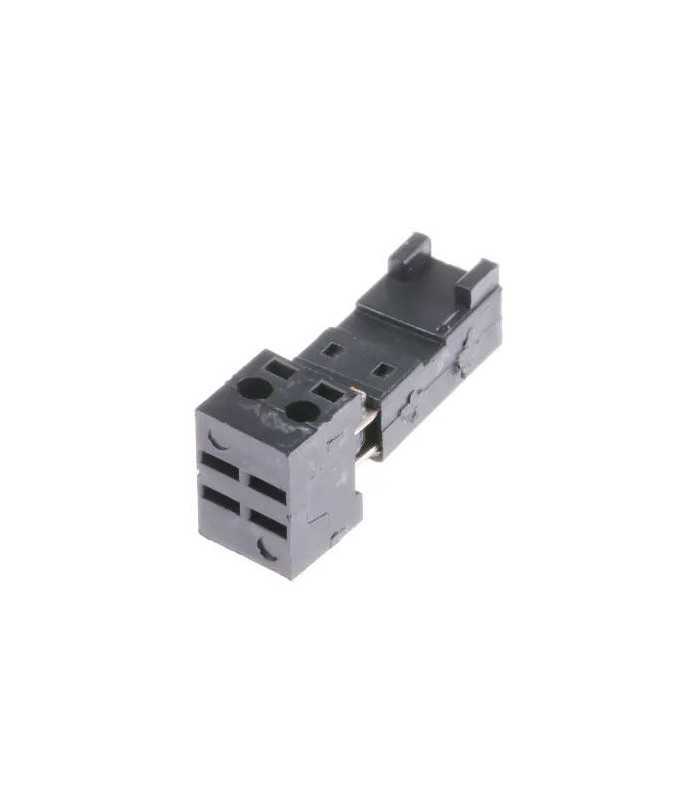

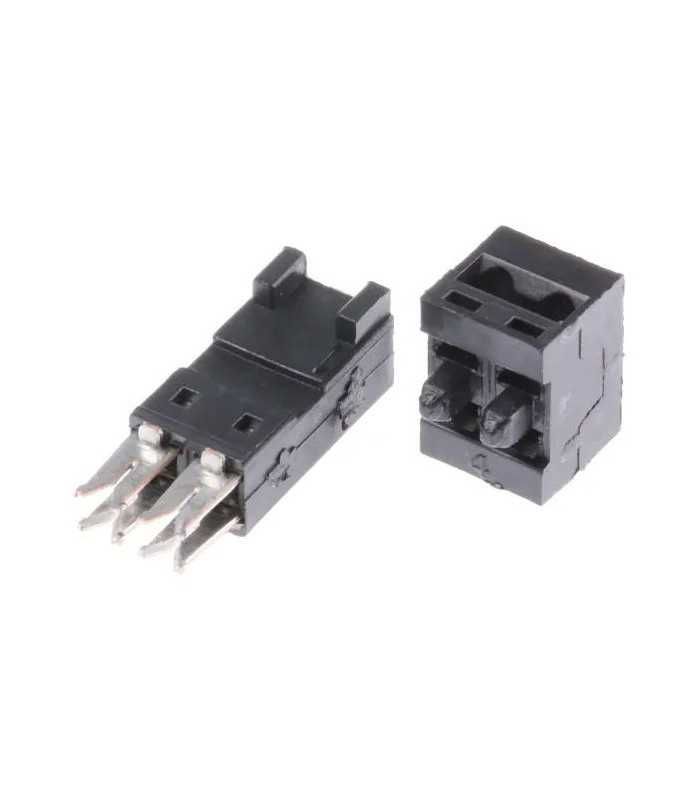

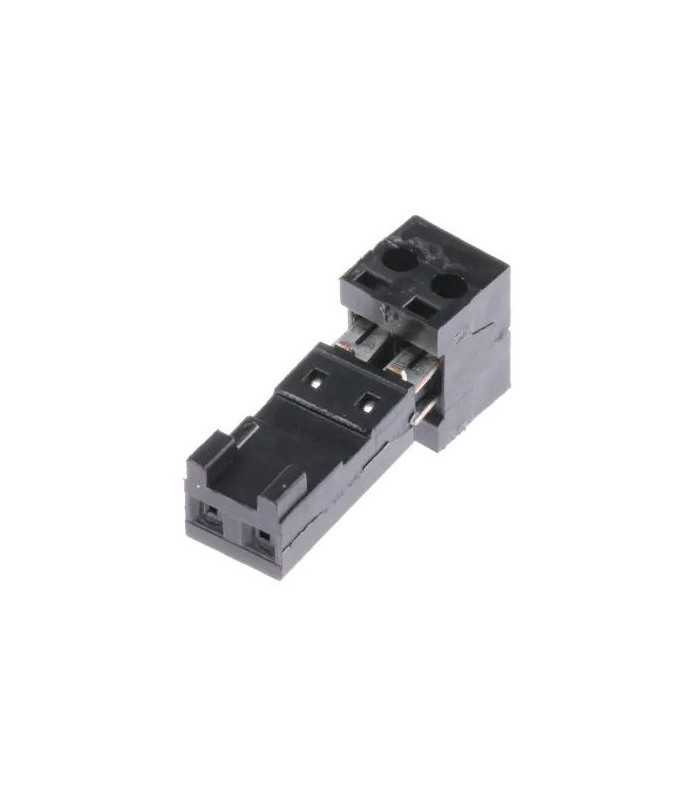

Cconnector IDC Autocom HE13 female 2 way
Errebi code: 51520
Producer code: Cross Reference 661002152023
Producer: Cross Reference Stelvio Kontek
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross Reference 661002152023
Producer: Cross Reference Stelvio Kontek
Please note: the item is a reproduction of the original, please contact us for more information.
€0.58
(tax excl.)
€0.71
(tax incl.)
Condition
New
Reference:
RBCTHE14PFP2V
Brand:
Add to wishlist
range of single-row IDC connectors with 90° output, is designed to receive flat or single-wire cables, ranging in size from 22-24 AWG to 26-28 AWG. Suitable for a variety of low voltage applications, these AUTOCOM IDC connectors are side stackable and have dual blade contacts. They are encased in black GF thermoplastic material and have an insulation resistance of 105 MOhm min and a contact resistance of <= 20 mOhm.
Number of contacts: 2
Number of rows: 1
Gender: Female
Pitch: 2.54mm
Mounting Type: Cable Mount
Orientation: Right corner
Termination: IDC
Rated current: 3A
Contact plating: Gold over nickel
Series: Autocom
Minimum operating temperature: -55.0°C
Maximum operating temperature: 125.0°C
Nominal voltage: 500.0 V AC
Housing material: PET
Contact material: Phosphor bronze
Read moreShow less
Number of contacts: 2
Number of rows: 1
Gender: Female
Pitch: 2.54mm
Mounting Type: Cable Mount
Orientation: Right corner
Termination: IDC
Rated current: 3A
Contact plating: Gold over nickel
Series: Autocom
Minimum operating temperature: -55.0°C
Maximum operating temperature: 125.0°C
Nominal voltage: 500.0 V AC
Housing material: PET
Contact material: Phosphor bronze
RBCTHE14PFP2V
Data sheet
- Product type
- Connector
- Serie
- Autocom HE13
- Amperage
- 3A
- Material
- PET (Polyethylene terephthalate)
- Color
- Black
- Operating temperature
- -55°C to +125°C
- Voltage
- 500V
- Contact material
- Phosphor Bronze
- Mounting
- On cable
- Wire range
- 28 - 22 AWG
- Kind
- Female
- Number of poles
- 2
- Number of rows
- 1
- Pitch
- 2.54 mm
- Orientation
- 90°
- Contact plating
- Nichel (Gold finish)
- Minimum order quantity
- 5
- Unit Type
- pieces
