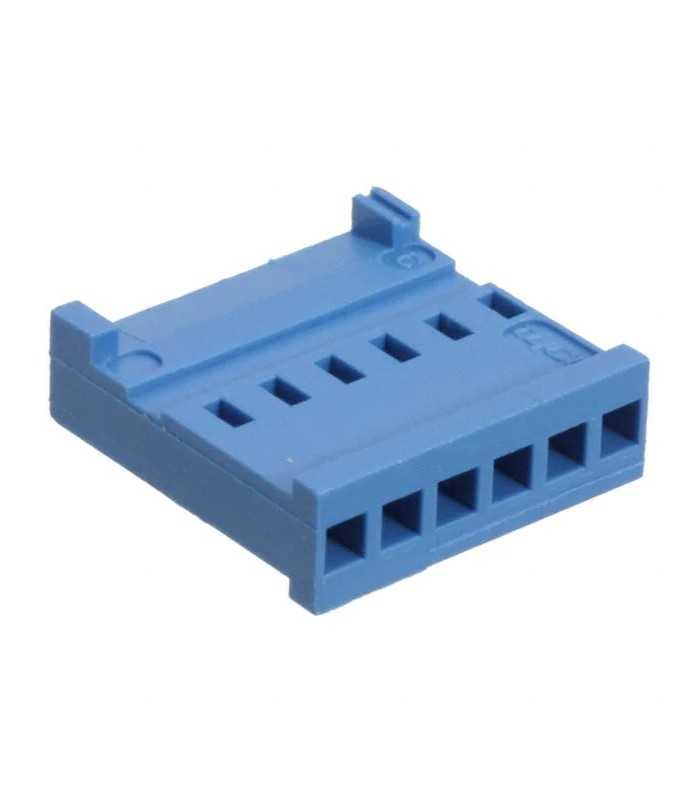

Cconnector HE14 female 6 way

Product Type Features
- Connector Product Type: Housing
- Connector & Housing Type: Receptacle
- Connector System: Wire-to-Board
- Sealable: No
- Connector & Contact Terminates To: Wire & Cable

Configuration Features
- Number of Positions: 6
- Number of Rows: 1

Contact Features
- Contact Base Material: Phosphor Bronze
- Contact Type: Socket
- Contact Current Rating (Max) (A): 3
- Contact Layout: Inline

Termination Features
- Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC)

Mechanical Attachment
- PCB Mount Retention: Without
- Panel Mount Feature: Without
- Strain Relief: Without
- Mating Retention: With

Housing Features
- Housing Material: PBT GF
- Centerline (Pitch): 2.54 mm [ .1 in ]
- Housing Color: Blue
- Housing Entry Configuration: Both Ends Closed

Dimensions
- Wire Size (mmq): .08 – .22
- Wire Size (AWG): 28 – 24
- Connector Height: 15 mm [ .591 in ]
- Row-to-Row Spacing: 2.54 mm [ .1 in ]
- Connector Length: 15.24 mm [ .6 in ]

Usage Conditions
- Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]

Operation/Application
- Circuit Application: Signal

Industry Standards
- UL Flammability Rating: UL 94V-0
- Glow Wire Rating: Standard Part - Not Glow Wire
